With Tilt
Fig. 2 Steering column support fixture:

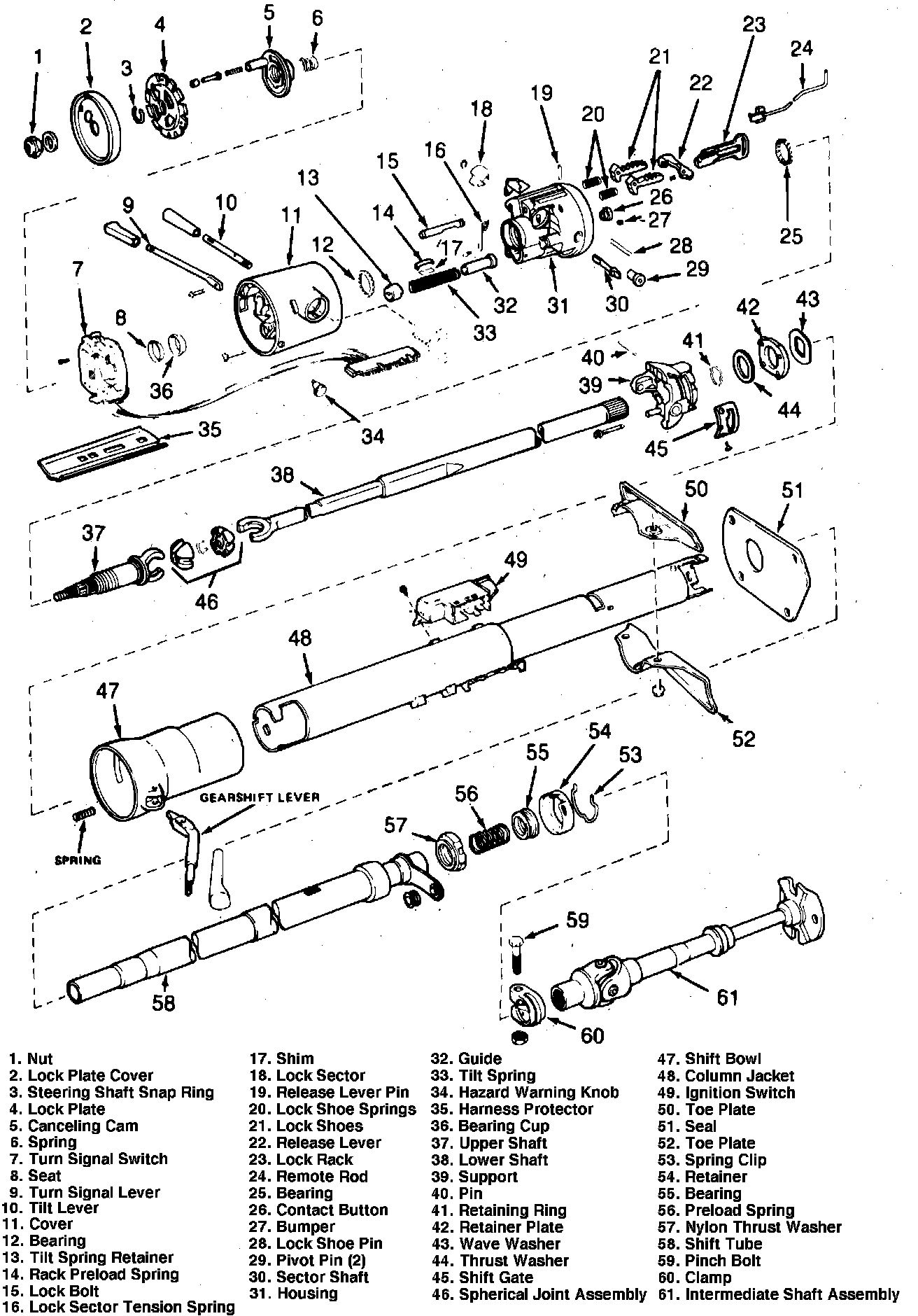

Fig. 4 Tilt steering column & components. 1980-83 Cherokee & Wagoneer, 1983-87 Grand Wagoneer & Truck models shown (1984-87 Cherokee, Wagoneer & 1986-87 Commanche similar):
1980 - 83 CHEROKEE & WAGONEER, 1980 - 87 GRAND WAGONEER & TRUCK MODELS
DISASSEMBLY
NOTE: Although it is possible to disassemble the tilt steering column down to the housing with the column in the vehicle, the steering column must be removed if extensive disassembly is required. If the steering column is removed, use steering column support fixture J-23074 to mount the steering column assembly in suitable vise.
1. Place front wheels in straight ahead position.
2. Disconnect battery ground cable.
3. Remove steering wheel.
4. Remove gearshift lever retaining pin, then the gearshift lever.
5. Remove lock plate cover.
6. To remove lock plate and snap ring, proceed as follows:
a. Inspect and identify steering shaft nut thread type. Metric shafts have an identifying groove in the steering wheel locating splines. Standard type threads do not have this groove.
b. If the steering shaft has standard type threads, use lock plate compressor tool J-23653 or equivalent to compress lock plate and remove steering shaft snap ring.
c. If the steering shaft has metric threads, replace compressor tool standard forcing screw with Metric forcing screw J-23653-4 before installing tool into steering shaft. The lock plate is under spring tension. Do not attempt to remove lock plate without using the compressor tool.
7. Remove compressor tool and steering shaft snap ring.
8. Remove lock plate, canceling cam, upper bearing preload spring, spring seat and bearing upper race.
9. On vehicles without cruise control, remove turn signal lever attaching screw and lever.
10. On vehicles with cruise control, disconnect electrical connectors from switch terminal in lever. Fold 2 of the four switch wires back, along harness and tape wires in place.
11. Press hazard warning light switch knob inward. Turn knob counterclockwise and remove knob.
12. Disconnect turn signal switch wire harness electrical connector from mounting bracket on lower right side of column jacket.
13. Loosen toe plate bolts, then remove mounting bracket-to-instrument panel attaching bolts. Remove mounting bracket from vehicle.
14. Remove turn signal switch retaining screws, then remove switch and wire harness.
15. On vehicles with cruise control, remove turn signal lever attaching screw and lever.
16. Place lock cylinder into Lock position.
17. Compress lock cylinder retaining tab and remove lock cylinder.
18. Remove spring clips retaining shift quadrant, then the shift quadrant and mounting bracket.
19. Remove tilt lever.
20. Remove cover attaching screws, then the cover from steering column.
21. Remove lock sector tension spring attaching screw.
22. Install tilt lever and place upper housing in full upward tilt position.
23. Insert a suitable screwdriver into tilt spring retainer slot and compress retainer approximately 3/16 inch. Rotate retainer approximately 1/8 of a turn counterclockwise, then remove retainer and spring. Tilt spring is under strong spring tension.
24. Place housing in center (non-tilt) position.
25. Using tool J-21854-1 or equivalent, remove housing pivot pins.
26. Lift tilt lever, then disengage locking shoes and remove housing. Remove both ball bearing assemblies from housing if bearings are to be replaced.
27. Remove tilt lever.
28. Using tool J-22635 or equivalent, remove release lever pin from housing.
29. Remove lock shoe pin from housing. During removal of lock shoe pin, compress the lock shoe springs to relieve spring tension on pin.
30. Remove lock shoes and lock shoe spring.
31. Disconnect steering shaft from intermediate shaft coupling. Remove steering shaft through upper end of column.
32. Disconnect steering shaft by folding shaft 90° and separating upper and lower halves at the flexible joint.
33. Remove ignition switch.
34. Remove lock rack and remote rod.
35. Remove lower bearing retainer snap ring, retainer, bearing and adapter.
36. Remove support to shift bowl attaching screws. Remove shift gate attaching screws and support.
37. Using tool J-23072 or equivalent, remove shift tube from steering column jacket.
38. Remove retainer plate by rotating shift bowl clockwise, sliding plate out of jacket notches, tipping plate down toward shift bowl hub and removing plate bottom side first.
39. Remove wave washer and shift tube spring.
40. Remove shift bowl from steering column jacket.
41. Remove lower bearing retaining clip, bearing retainer, bearing and bearing adapter assembly.
ASSEMBLY
1. Coat friction and bearing surfaces with suitable grease.
2. Mount shift bowl onto steering column jacket.
3. Install shift tube spring, wave washer and retainer plate into shift bowl.
4. Install shift tube through lower end of steering column jacket, then align tube spline with shift bowl keyway.
5. Install tools J-23073-2 and J-23073-4 or equivalents onto shift tube. Spring-loaded lower foot of tool must engage shift tube inner shoulder. Tool guide must be completely seated against shift tube.
6. Tighten tool spring tension nut.
7. Install tools J-23073-3 and J-23073-4 or equivalents, over puller stud and tighten tool nut J-23073-2 to pull shift tube into shift bowl.
8. Remove shift tube installer tools.
9. Install shift tube thrust washer and retainer plate snap ring.
10. Install lower bearing adapter with notched end of adapter facing lower end of steering column. Install lower bearing into steering column with metal face toward lower end of steering column. Install lower bearing retainer and retainer spring clip.
11. Install shift gate onto support.
12. Install shift gate and support assembly onto shift bowl. Align V notch in support with steering column jacket notch.
13. Install steering shaft through upper end of column.
14. Install ball bearings into column housing.
15. Install tilt lever.
16. Insert ignition switch remote rod between shift bowl and column jacket.
17. Engage lock rack onto remote rod.
18. Guide housing over steering shaft and lock rack assembly, then align lock shoes with support teeth. Align housing and support pivot pin holes, then install pivot pins.
19. Install lock shoes, lock shoe springs, tilt bumpers and lock pin into housing.
20. Install sector shaft into housing and lock sector onto shaft. Large block tooth on sector must engage large slot in lock rack.
21. Install lock sector retaining snap ring. Pull lock sector tension spring onto lock bolt, engage spring into sector and install spring retaining screw.
22. Place housing in full upward tilt position, then install tilt spring and guide into housing.
23. Install tilt spring retainer over spring and into housing. Press retainer downward approximately 3/16 inch and rotate 1/8 of a turn clockwise to secure retainer tabs in housing lugs.
24. Place housing into center (non-tilt) position and remove tilt lever.
25. Install cover and cover attaching bolts. Torque bolts to 35 inch lbs.
26. Guide shift quadrant lamp wire through housing and between shift bowl and steering column jacket.
27. Install shift quadrant mounting bracket.
28. Pull base of shift quadrant over tabs on left side of retainer.
29. Install shift quadrant pointer into shift bowl and engage pointer into quadrant.
30. Install quadrant retainer clips with flat side of clips facing downward.
31. Install tilt lever.
32. Install turn signal switch and switch harness onto steering column.
33. On vehicles without cruise control, install turn signal lever and lever attaching screws. Torque screws to 35 inch lbs.
34. On vehicles with cruise control, install turn signal lever and switch assembly. Guide switch wire harness into cover. Install lever attaching screws. Torque screws to 35 inch lbs. Remove tape from turn signal switch harness connector and position wires into steering column harness protector.
35. Align turn signal switch with cover holes. Install then torque attaching screws to 35 inch lbs. Ensure switch actuating lever pivot is properly aligned and completely seated in the housing pivot boss before installing switch screws.
36. Install mount bracket onto steering column. Torque column to mounting bracket bolts to 20 ft. lbs.
37. Position column mounting bracket onto instrument panel. Torque bracket to instrument panel attaching bolts to 20 ft. lbs.
38. Torque toe plate bolts to 10 ft. lbs.
39. Install upper bearing race, bearing seat, preload spring and canceling cam onto steering shaft.
40. Align lock plate splines with steering shaft splines, then install lock plate.
41. Install a new snap ring onto sleeve of compressor tool J-23653 or equivalent and install tool onto steering shaft.
NOTE: Identify steering shaft nut thread type before installing compressor tool onto steering shaft. If the shaft has standard type threads, use compressor tool specified in step 41. If the steering shaft has metric type threads (identified by a groove in the steering wheel locating splines), replace compressor tool standard forcing screw with metric forcing screw J-23653-4 before using the compressor tool.
42. Compress lock plate and install snap ring into steering shaft groove.
43. Install steering shaft onto intermediate shaft coupling.
44. Install gearshift lever into shift bowl.
45. Install lock cylinder as follows:
a. Insert ignition key into lock cylinder.
b. Hold lock cylinder and turn key clockwise until key contacts internal stop.
c. Align cylinder retaining tab with keyway in cover, then insert cylinder into cover.
d. Push lock cylinder against lock sector. Rotate cylinder counterclockwise until cylinder engages sector, then push cylinder inward until cylinder retaining tab snaps into position.
46. Install steering wheel. Torque steering wheel nut to 30 ft. lbs.
47. Connect battery ground cable.
