Home >> Jeep Truck >> 1983 >> Cherokee L6-258 4.2L VIN C 2-bbl >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Testing and Inspection >> Ford Motorcraft Starters >> Diagnosis

Diagnosis

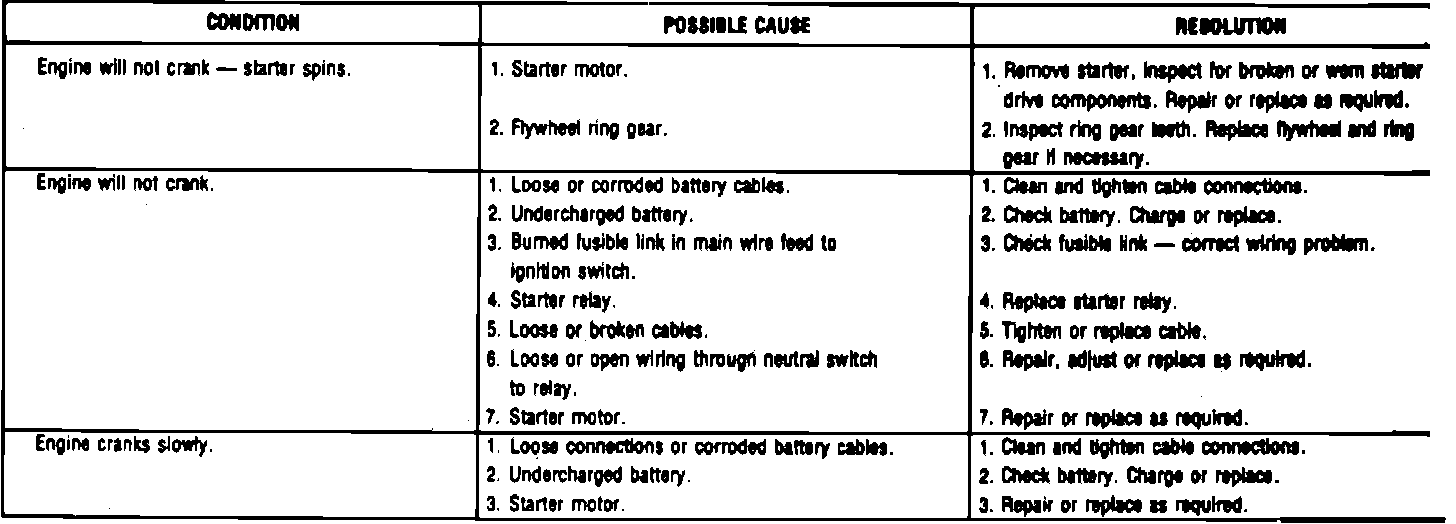

Fig. 3 Diagnosis chart:
