Jeep Truck
>>
1983
>>
Cherokee L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Part 2 of 2
Part 2 of 2

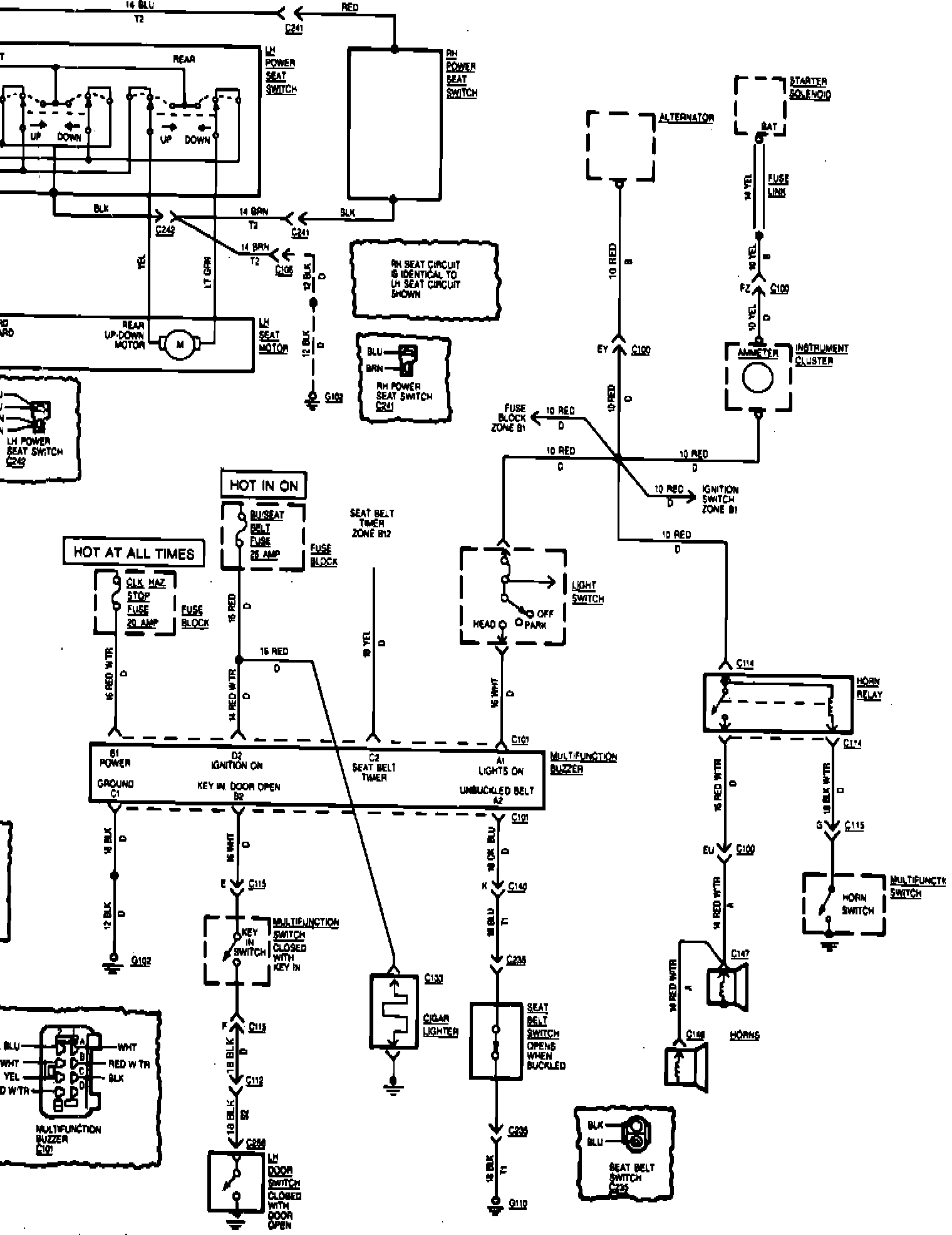

Fig. 15 Horn, Multi-Function Buzzer, Power Door Lock & Power Seat Wiring Circuit (Part 2 Of 2). 1983-84:
