Water Pump: Service and Repair

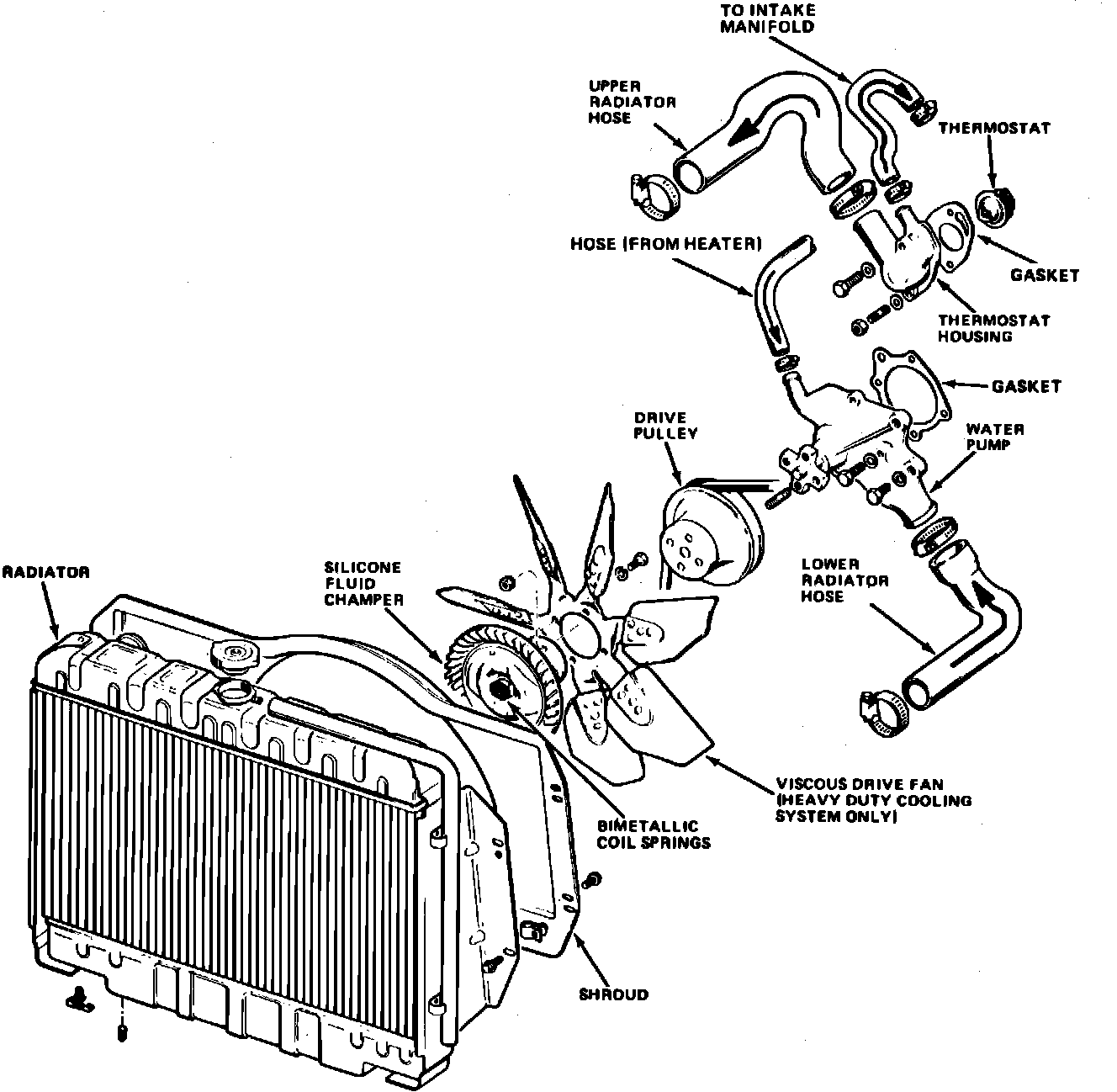

Fig. 21 Water pump & cooling system components:

1. Disconnect battery ground cable.
2. Drain cooling system.
3. Disconnect radiator and heater hoses from water pump, Fig. 21.
4. Remove drive belts.
5. Remove fan shroud and fan.
6. Remove water pump attaching bolts, then the water pump and gasket.
7. Reverse procedure to install.
