Wiper and Washer Systems

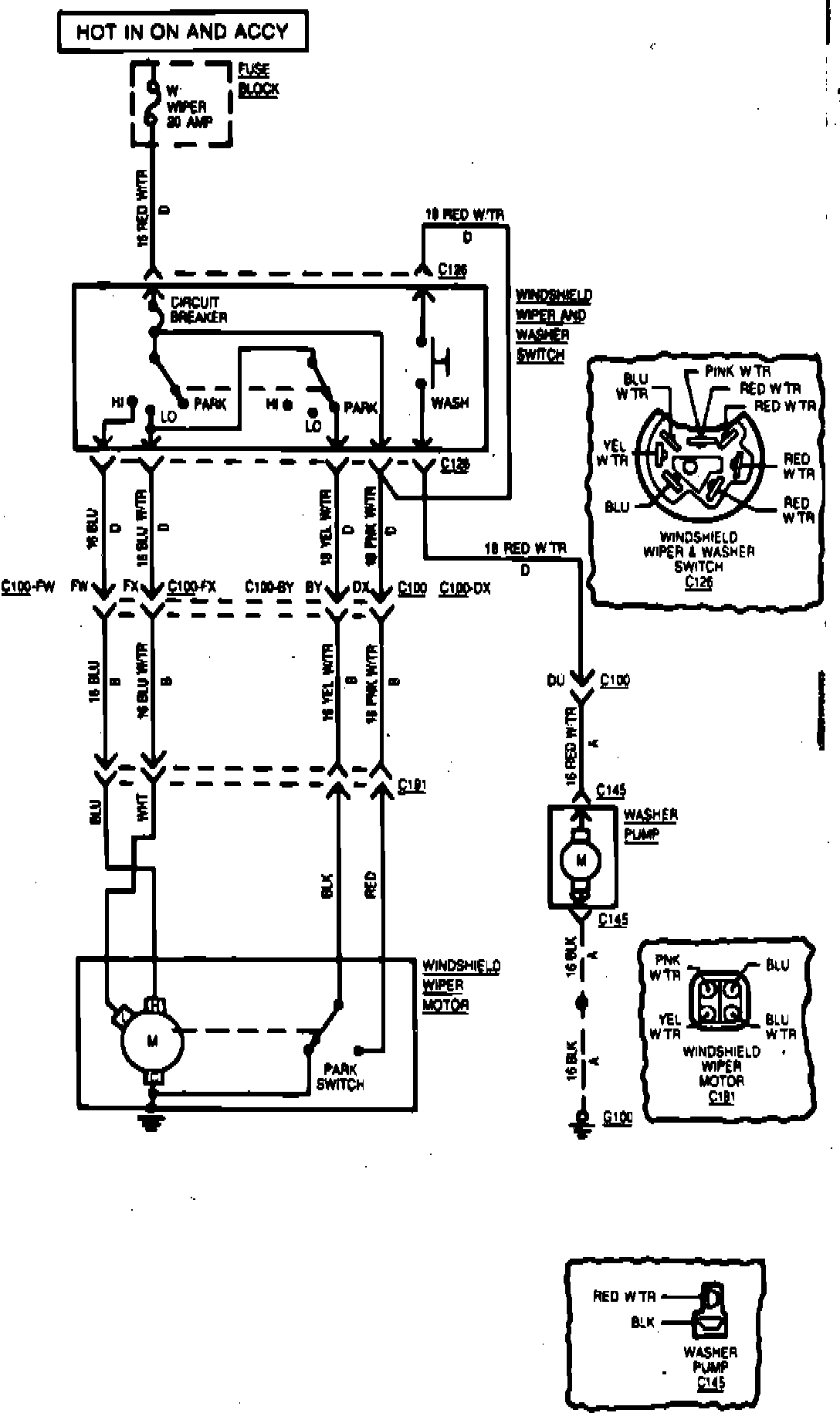

Fig. 18 Wiper System Wiring Circuit (Less Pulse). 1983-84:

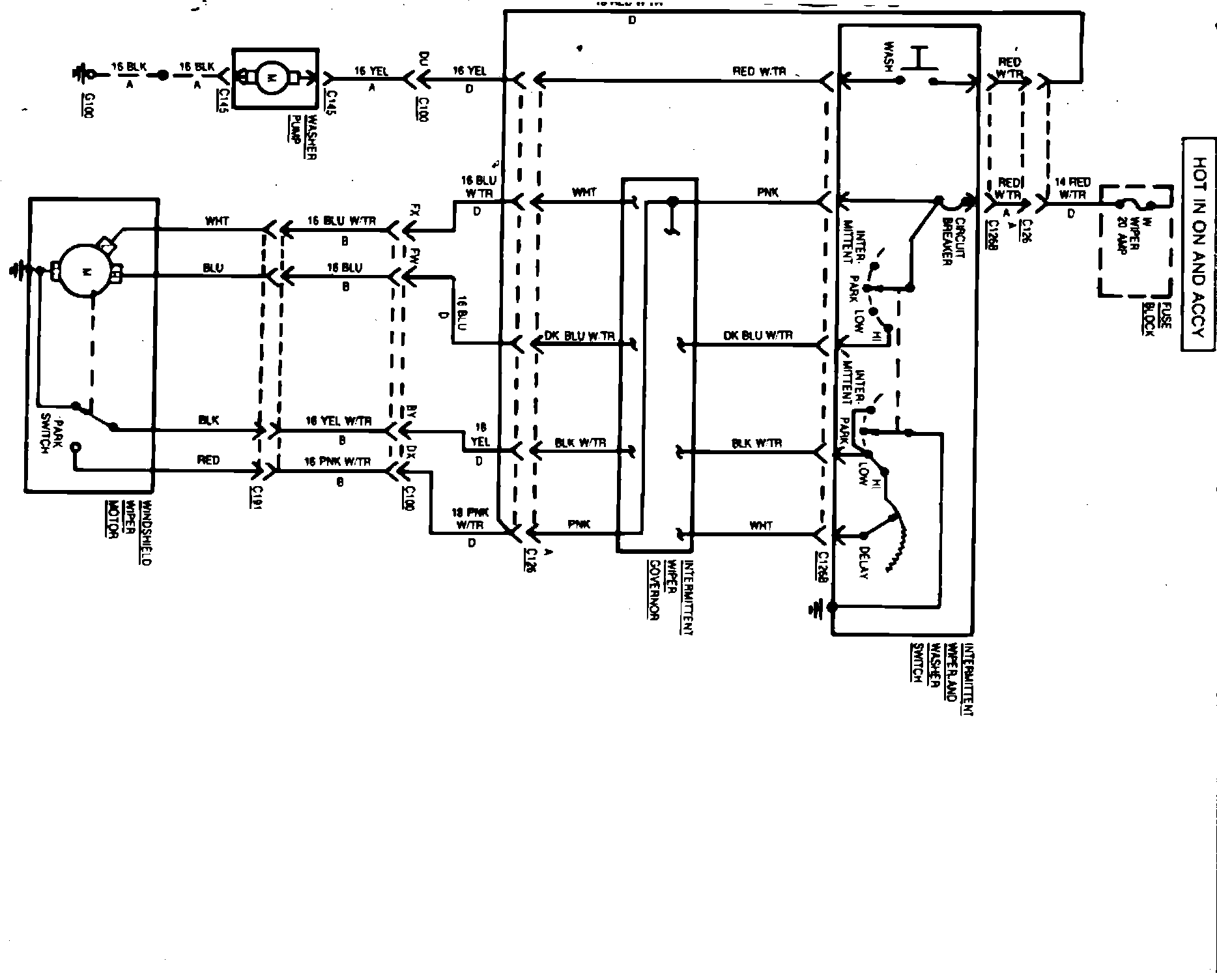

Fig. 18 Wiper System Wiring Circuit (With Pulse). 1983-84:
