Exterior Lighting Module

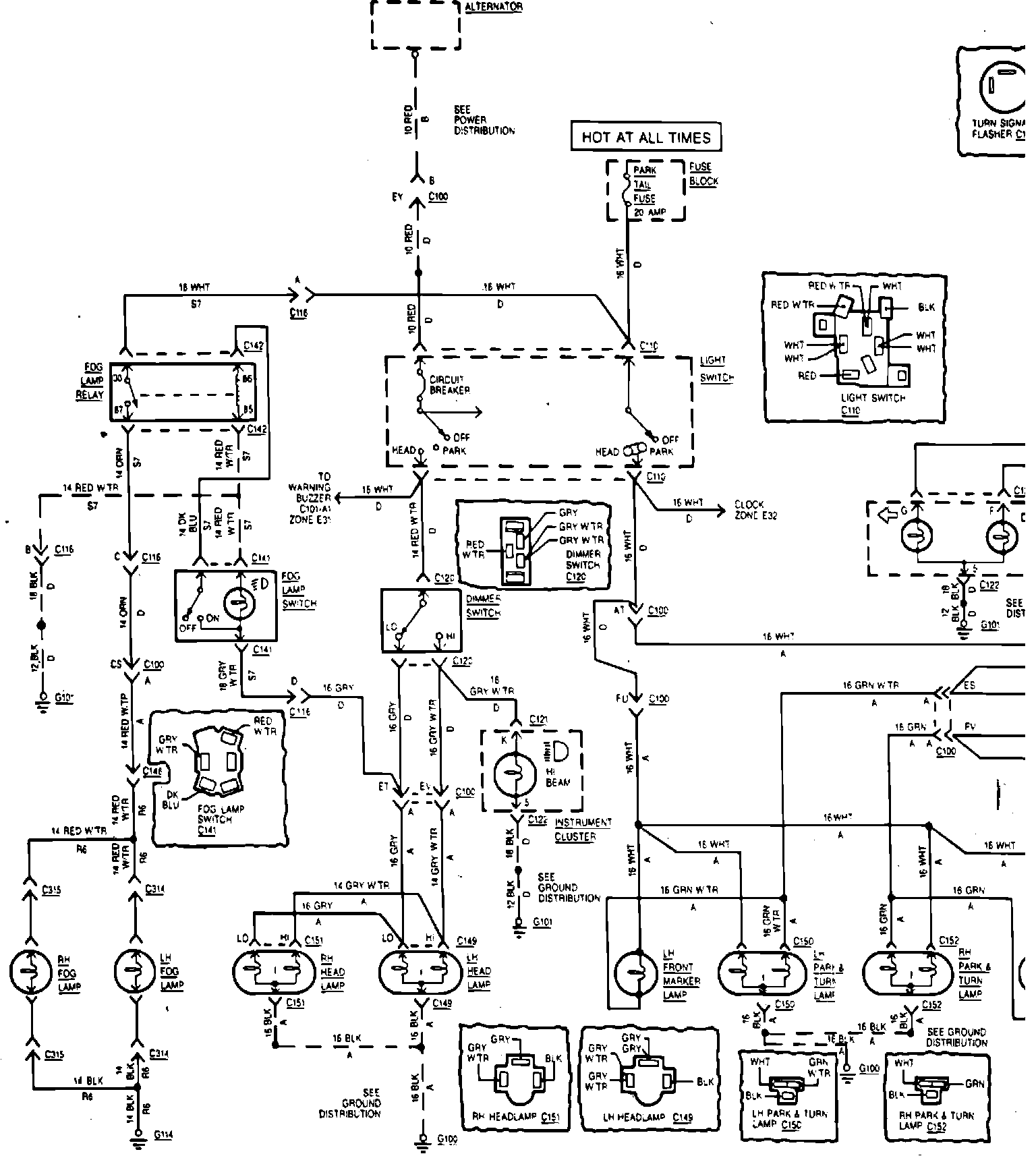

Fig. 12 Exterior Lamps Wiring Circuit (Part 1 Of 3). 1983-84:

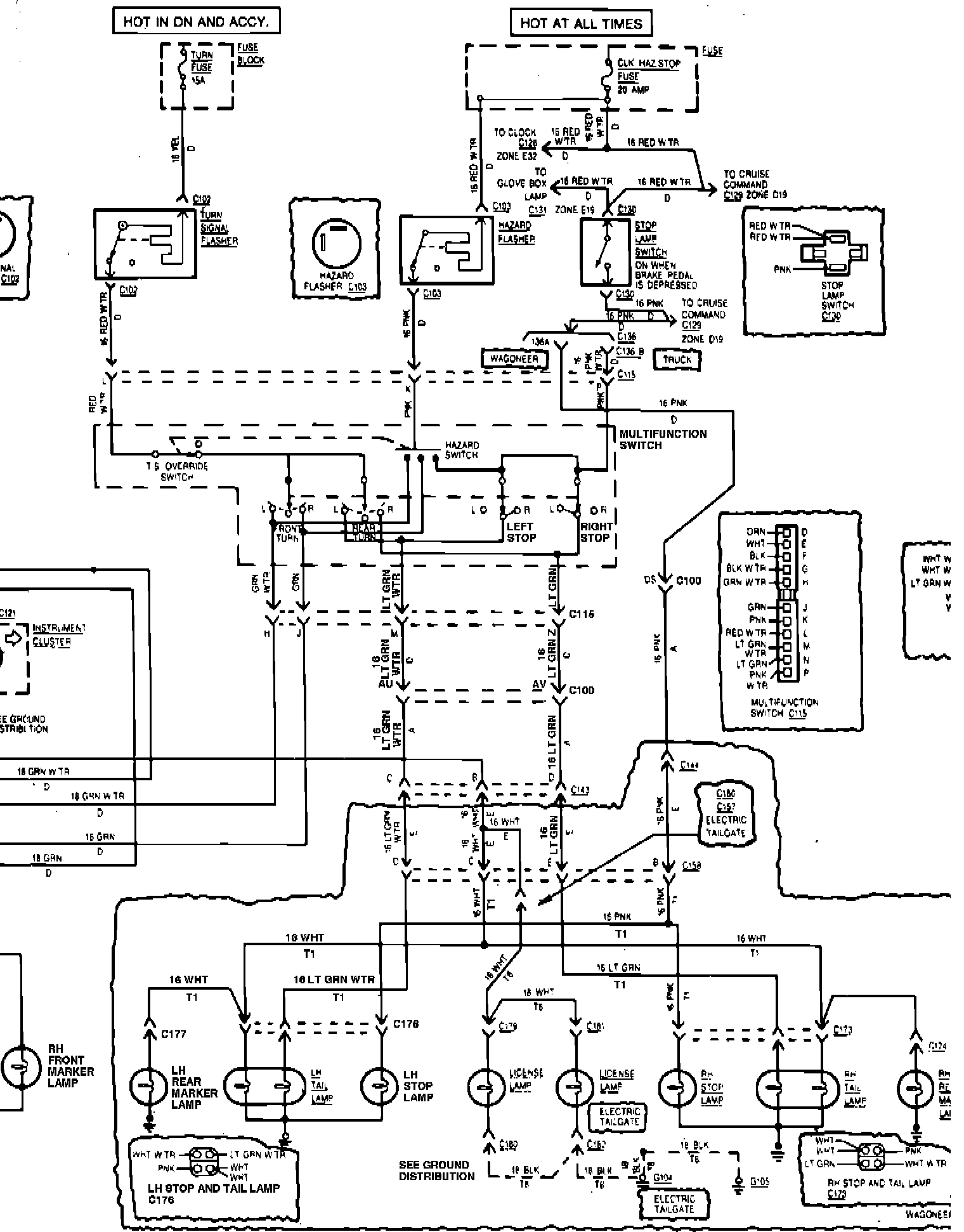

Fig. 12 Exterior Lamps Wiring Circuit (Part 2 Of 3). 1983-84:

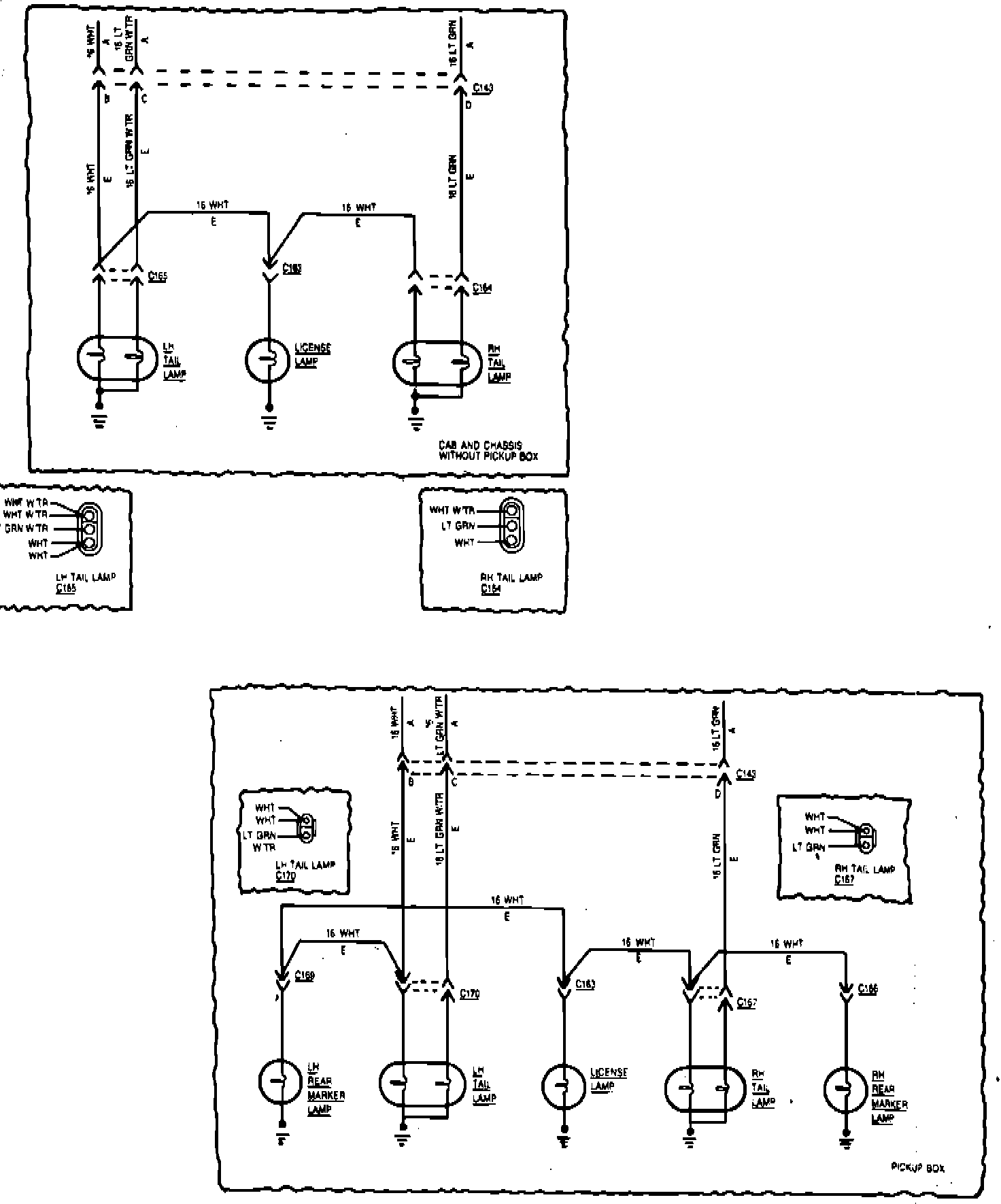

Fig. 12 Exterior Lamps Wiring Circuit (Part 3 Of 3). 1983-84:
