Jeep Truck
>>
1983
>>
Cherokee L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

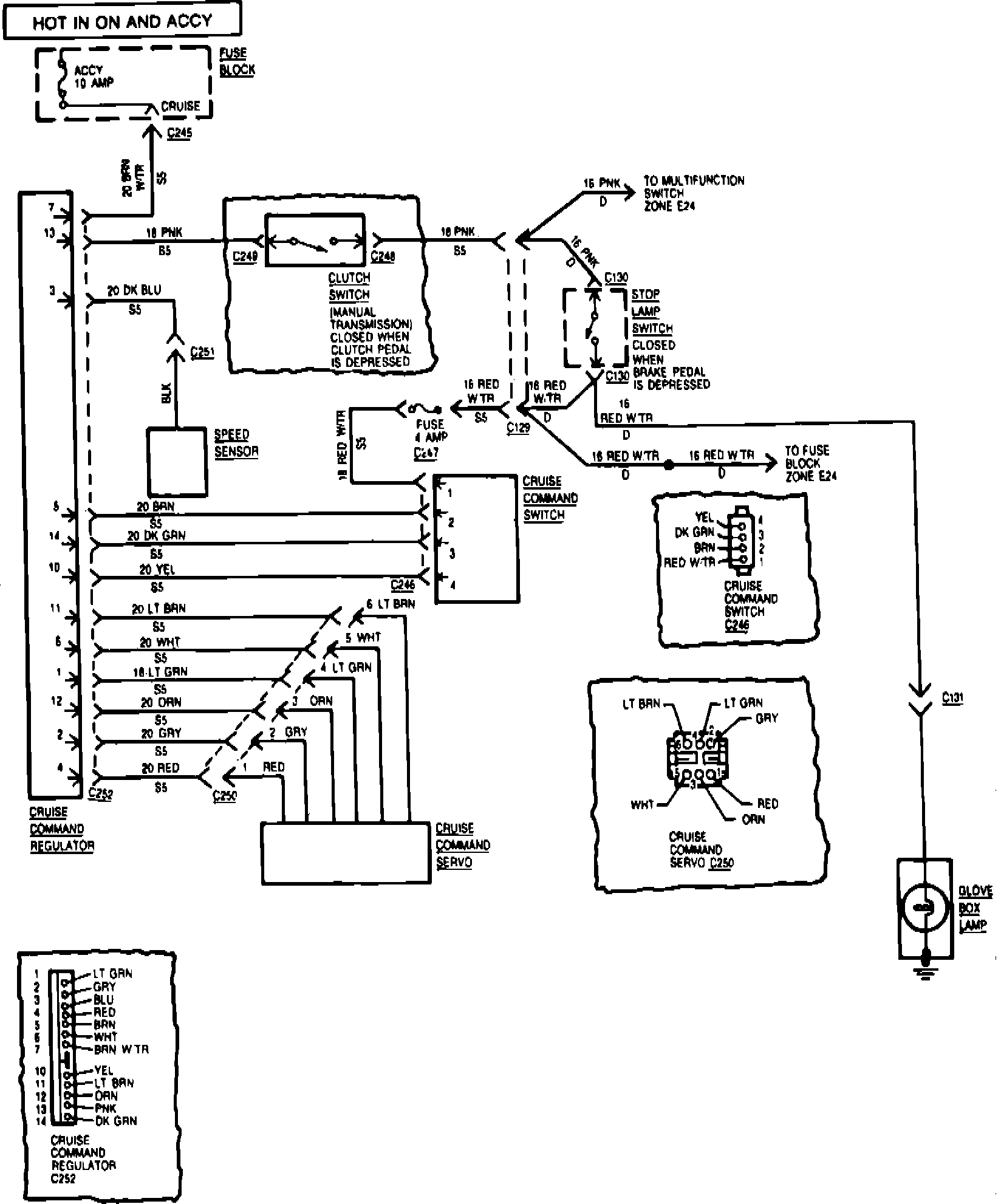

Fig. 8 Cruise Control Wiring Circuit. 1983-84:
