Test 3 - Open Loop Switch Test

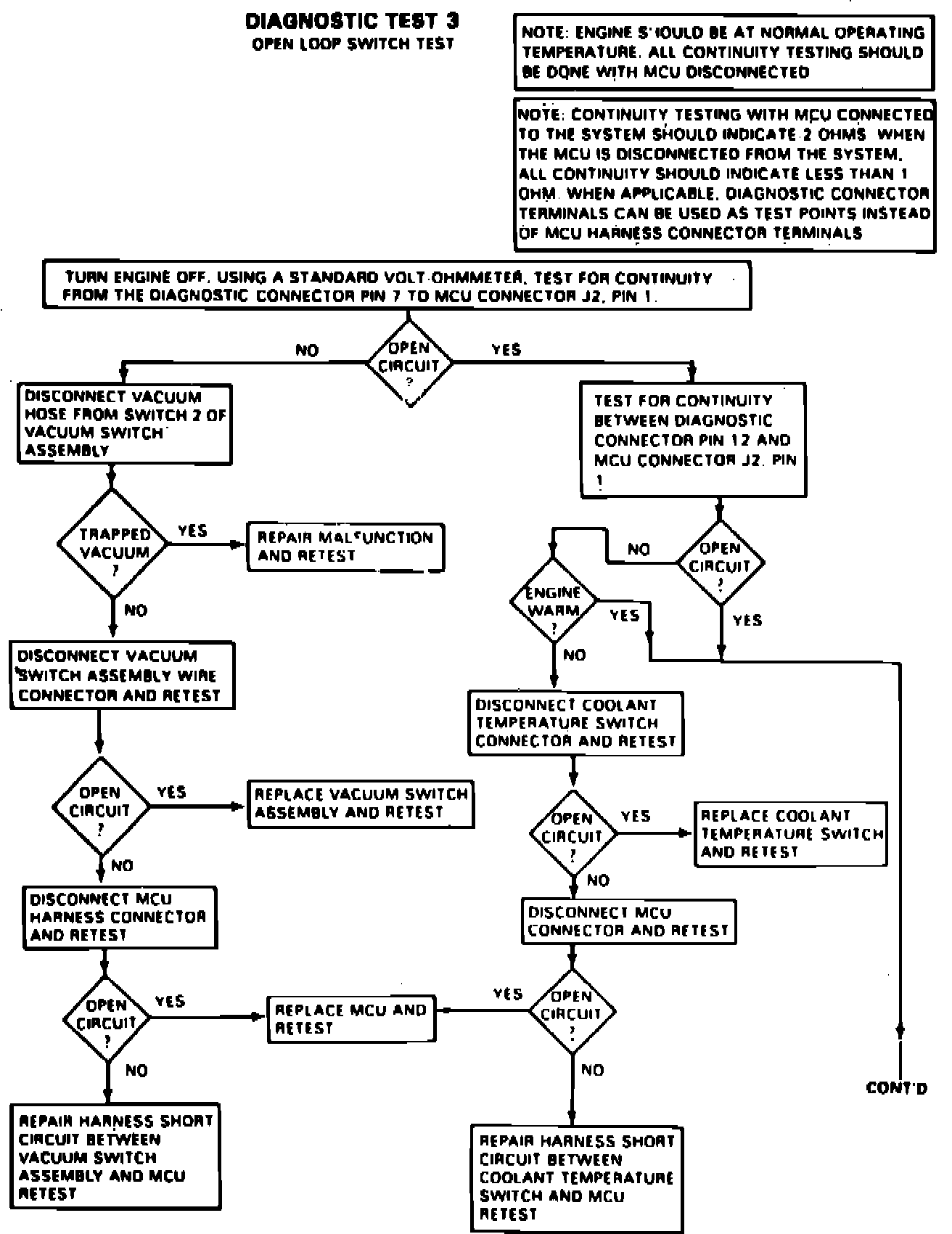

Fig. 14 Diagnostic Test 3 (Part 1 of 5). 1983 6-258/4.2L:

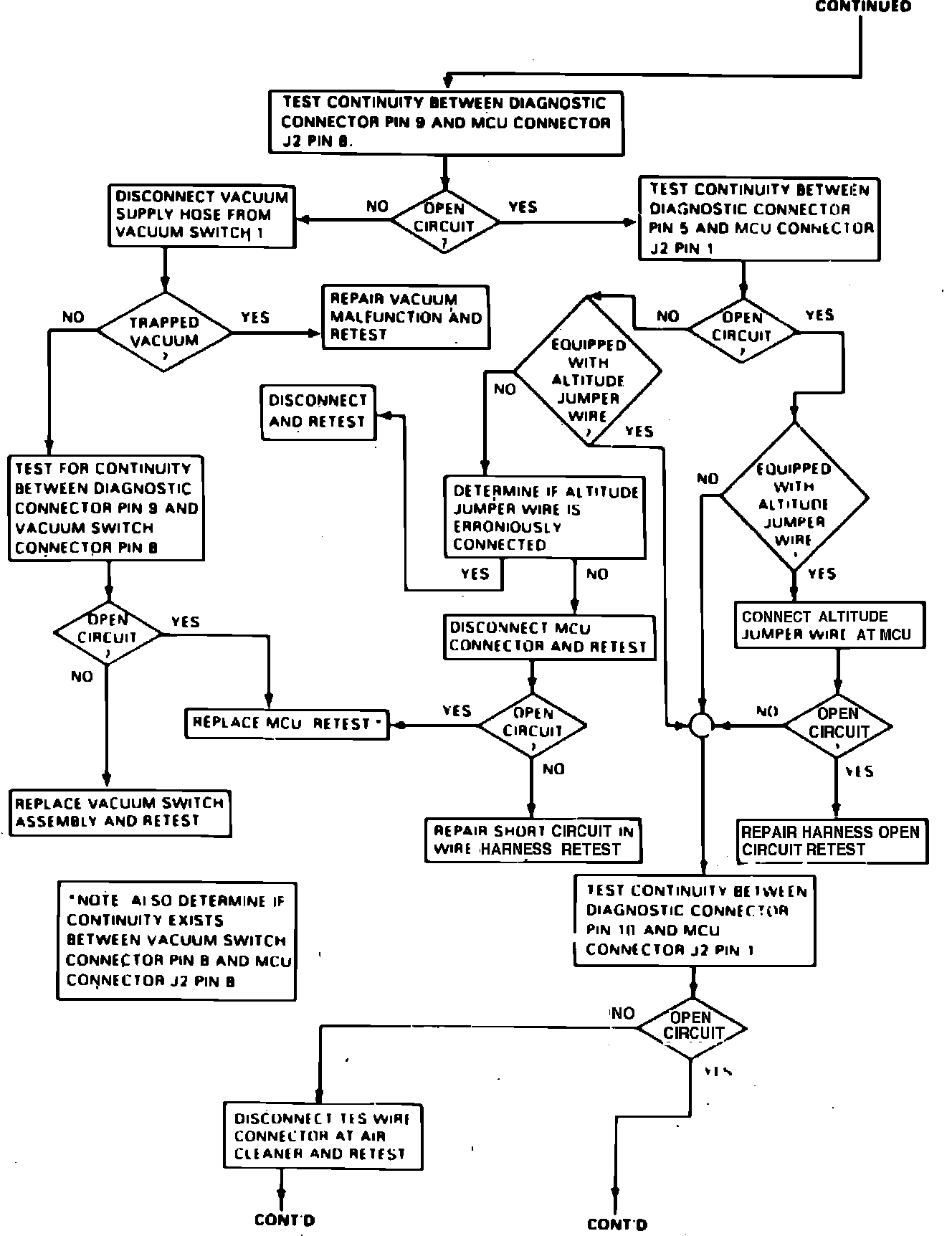

Diagnostic Test 3 (Part 2 of 5). 1983 6-258/4.2L:

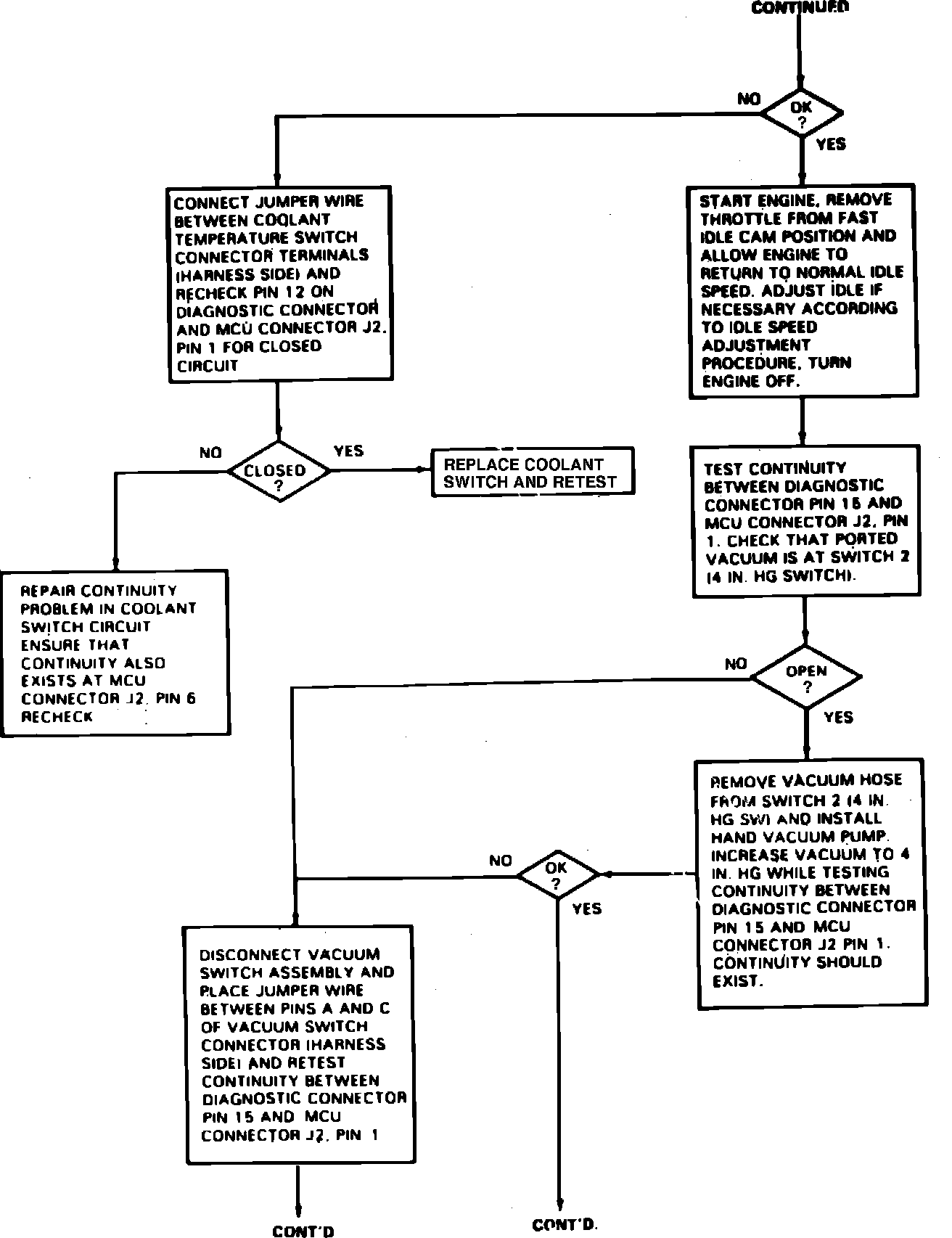

Diagnostic Test 3 (Part 3 of 5). 1983 6-258/4.2L:

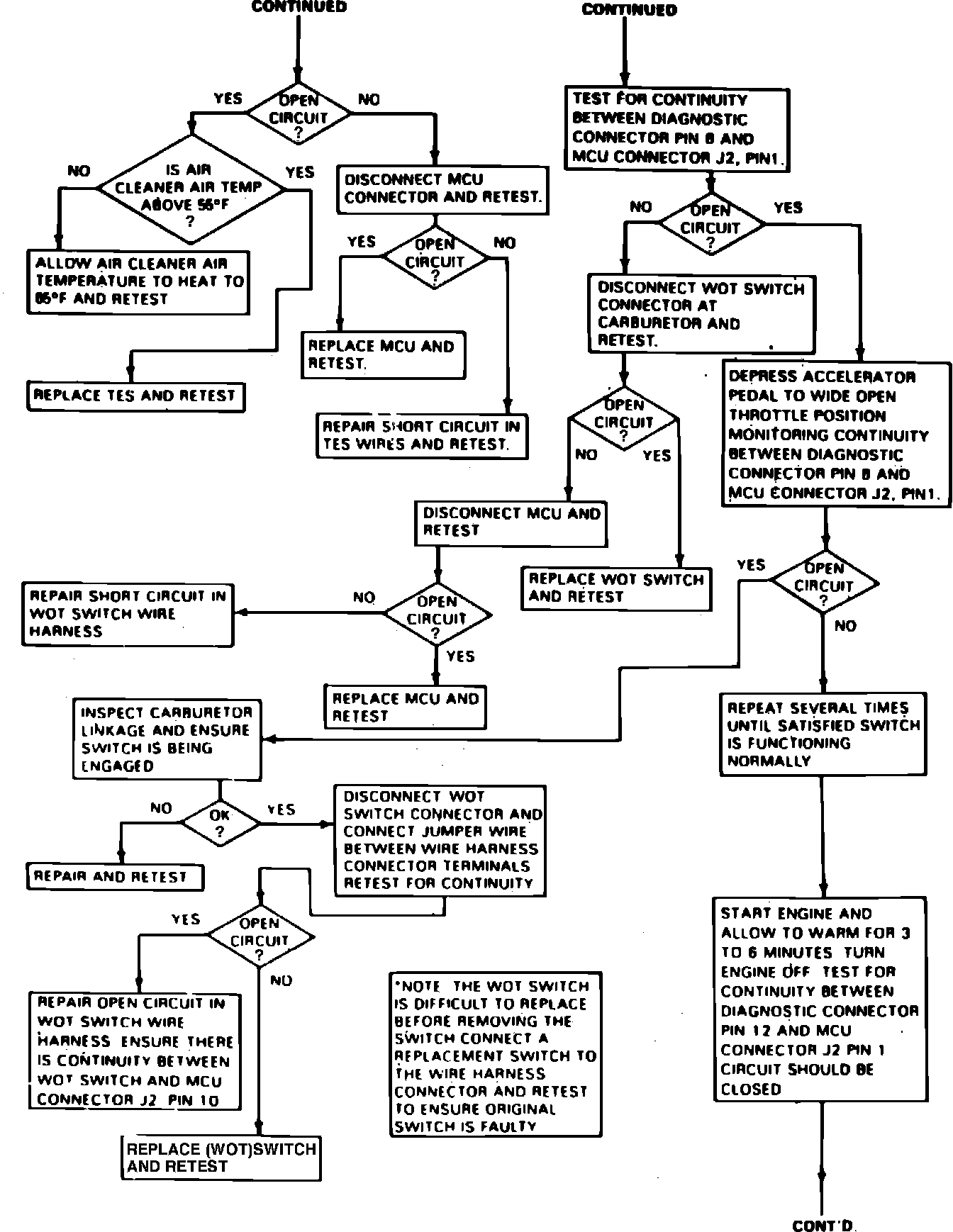

Diagnostic Test 3 (Part 4 of 5). 1983 6-258/4.2L:

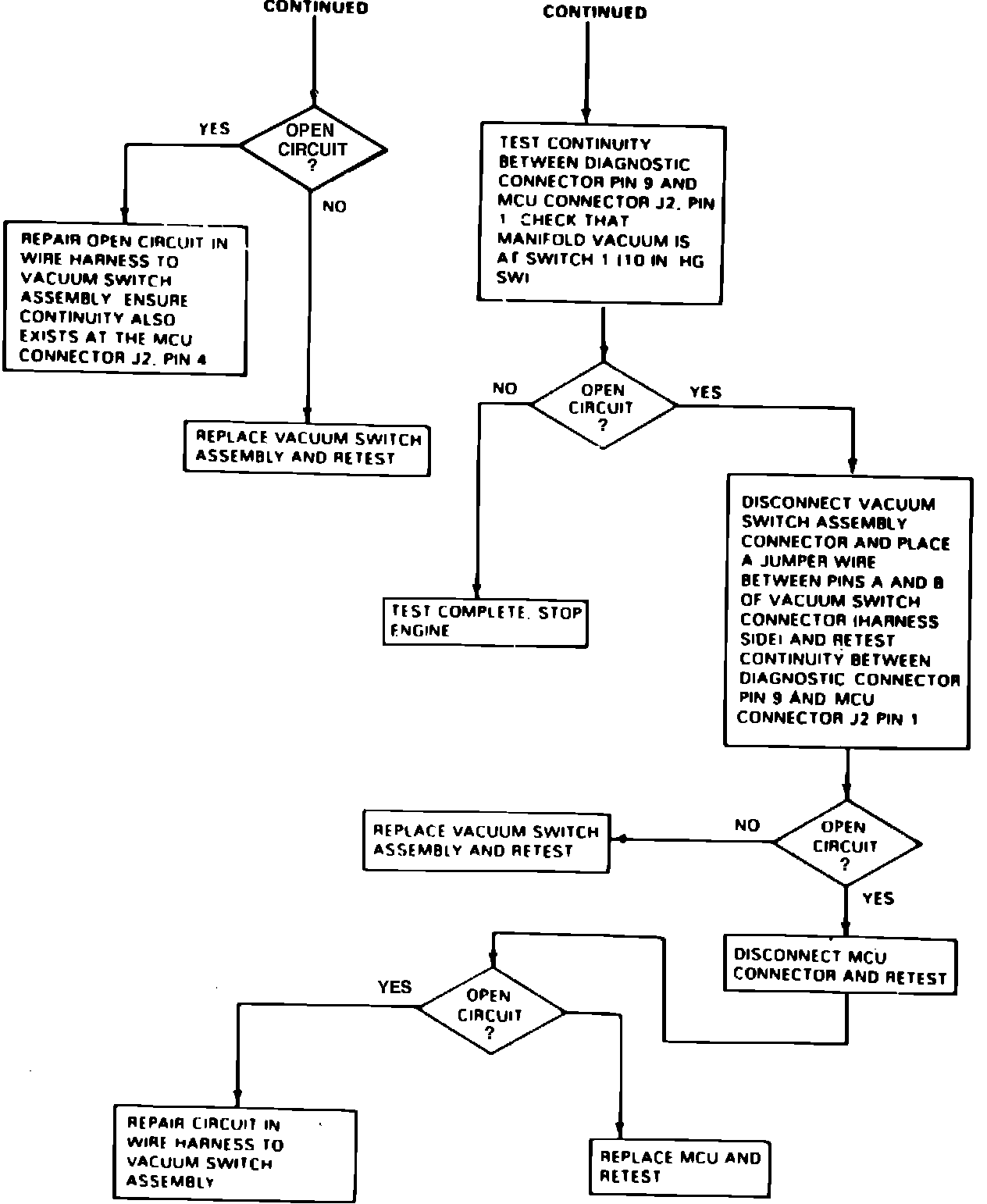

Diagnostic Test 3 (Part 5 of 5). 1983 6-258/4.2L:
