Jeep Truck
>>
1983
>>
Cherokee L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 2
Test 2

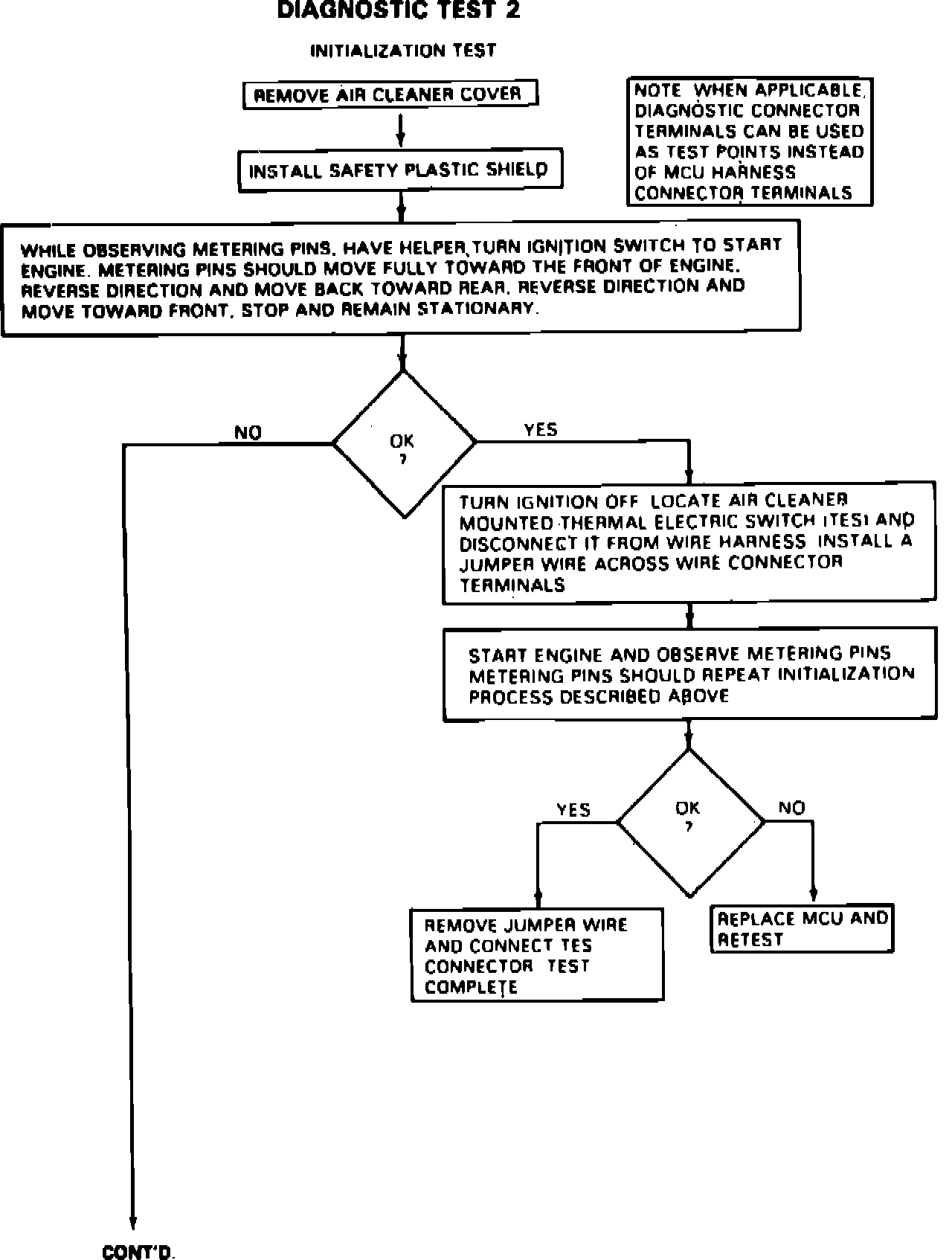

Fig. 13 Diagnostic Test 2 (Part 1 of 2). 1983 6-258/4.2L:

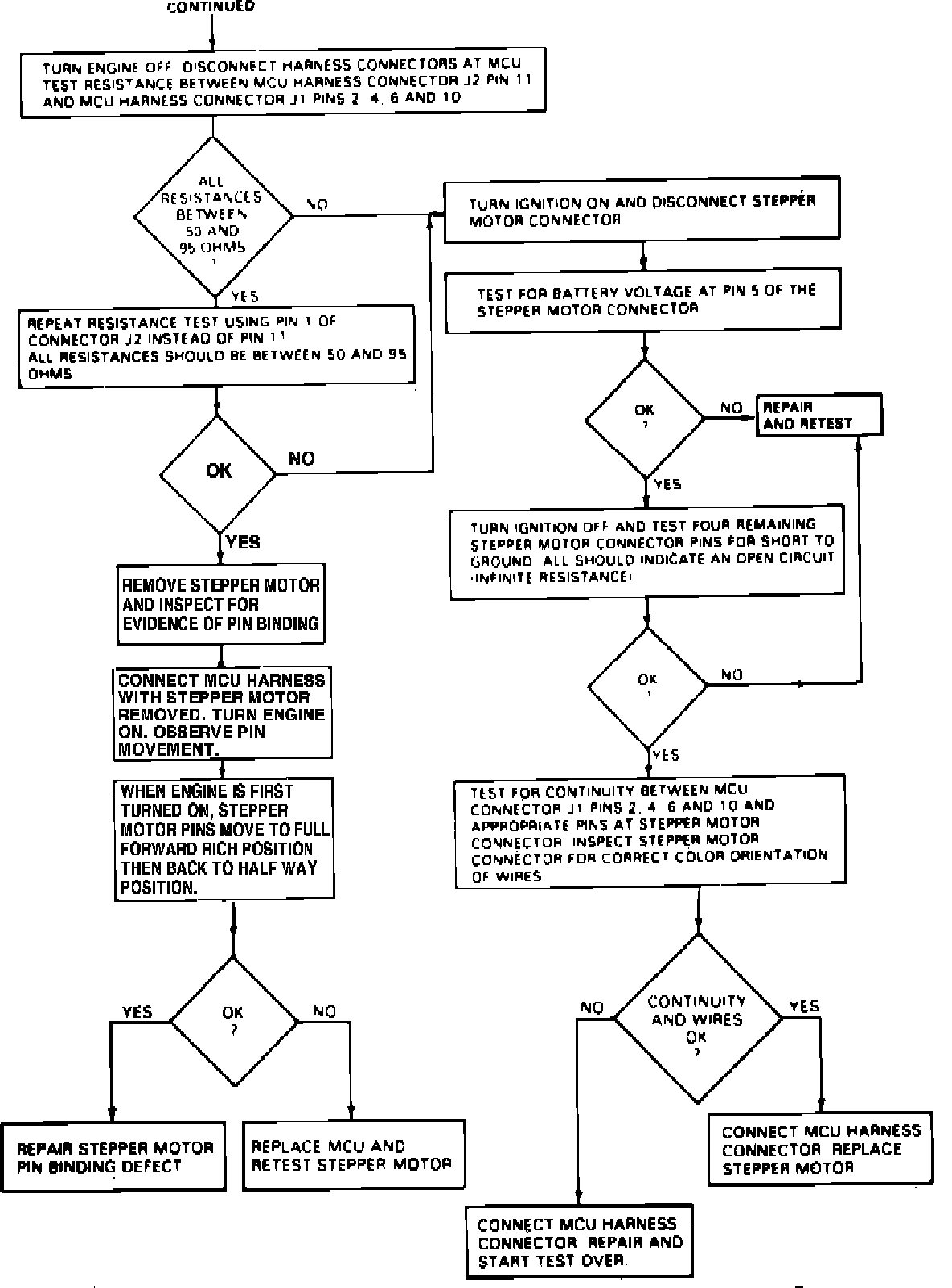

Fig. 13 Diagnostic Test 2 (Part 2 of 2). 1983 6-258/4.2L:
