Home
>>
Jeep Truck
>>
1983
>>
Cherokee L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 1 - Operational Test
Test 1 - Operational Test

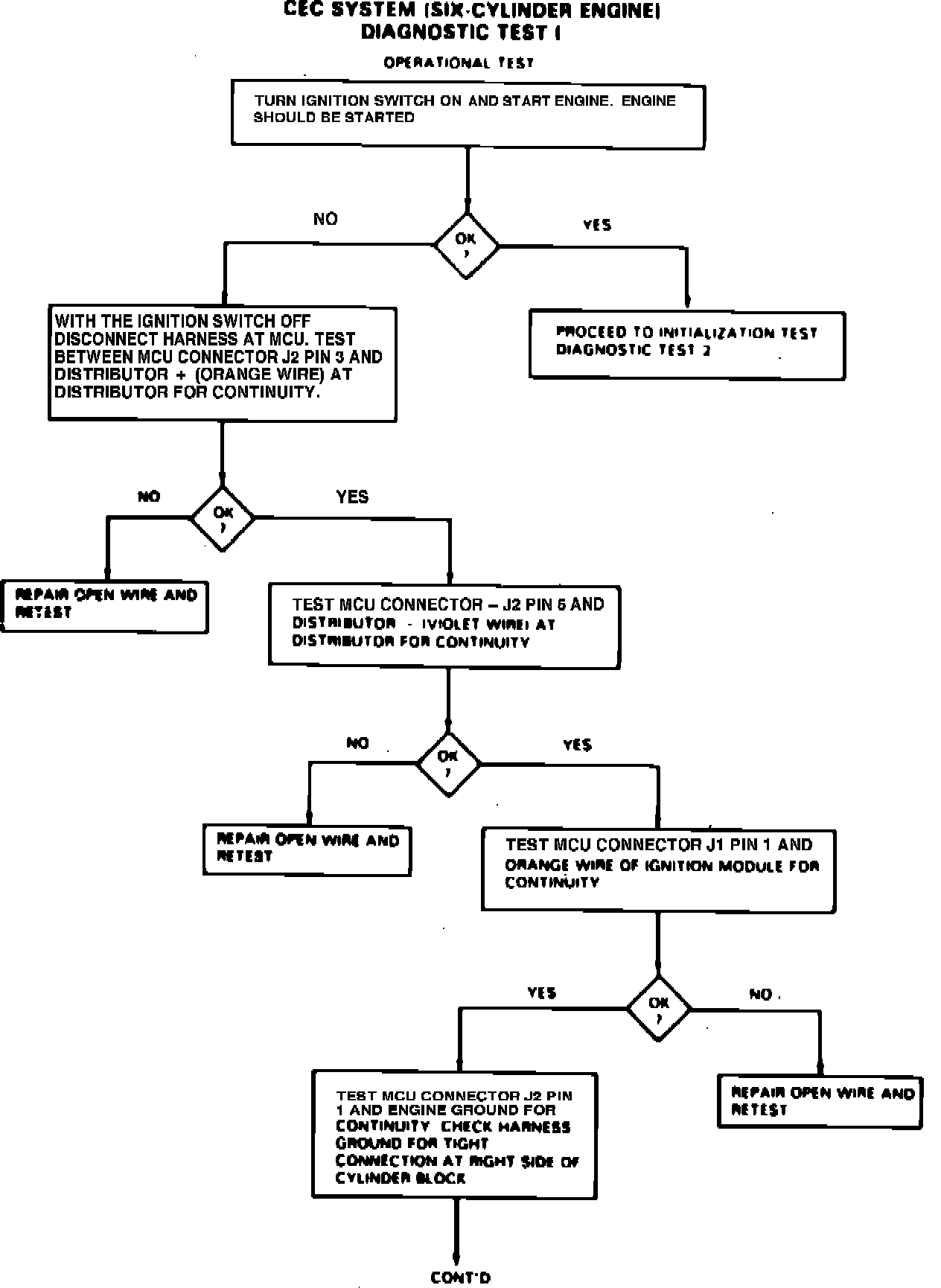

Fig. 12 Diagnostic Test 1 (Part 1 of 2). 1983 6-258/4.2L:

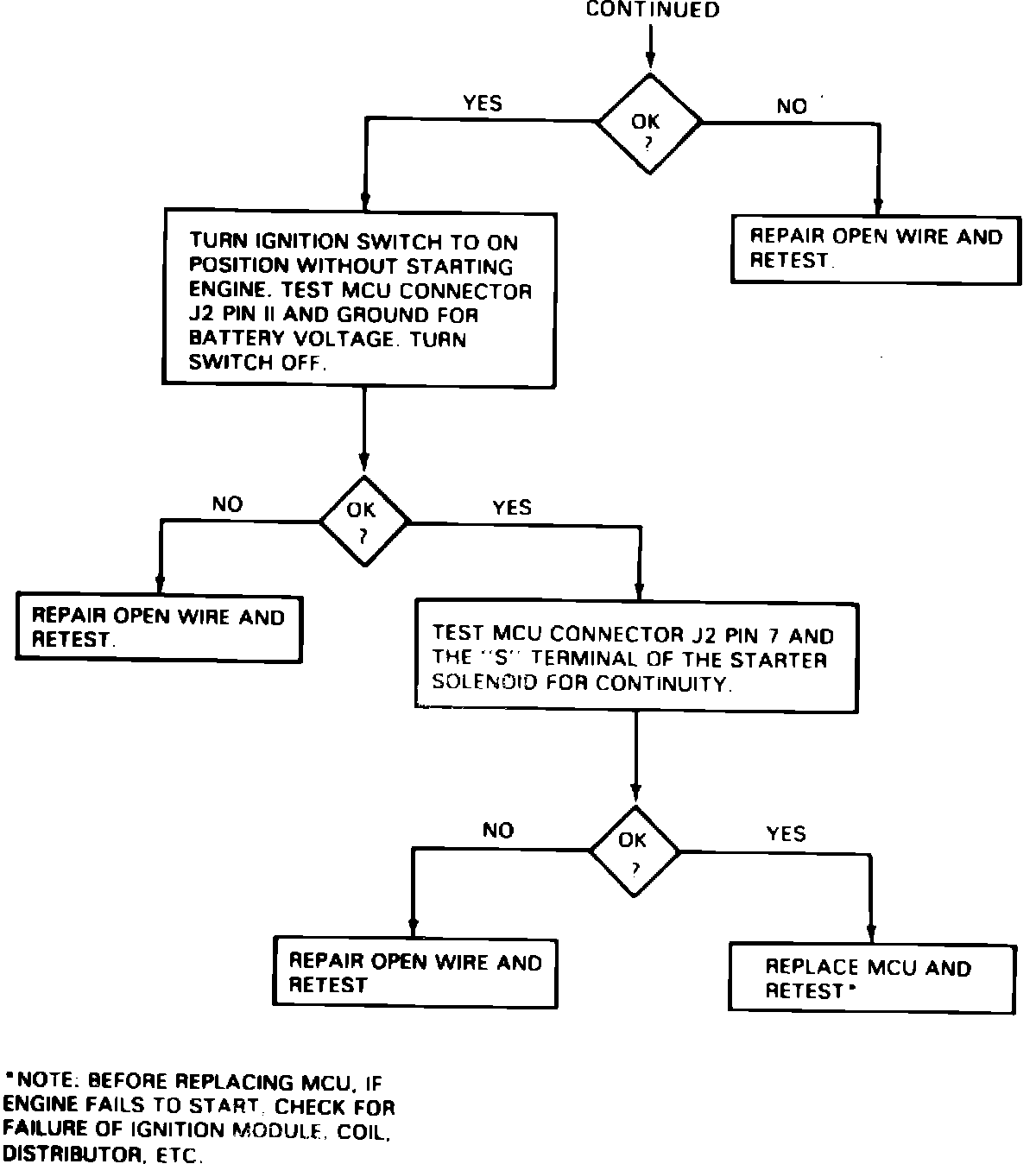

Fig. 12 Diagnostic Test 1 (Part 2 of 2). 1983 6-258/4.2L:
