Exterior Lighting Module

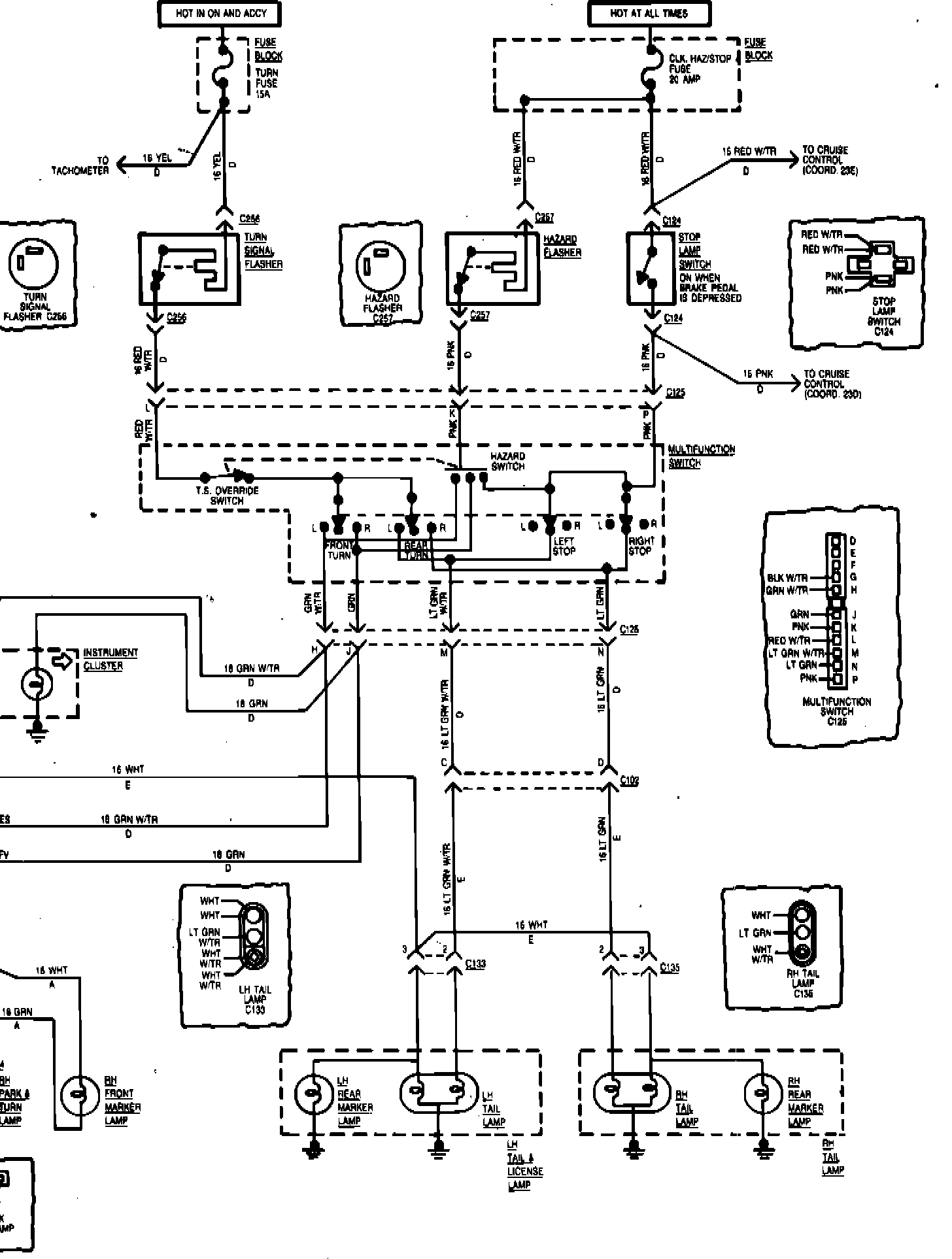

Fig. 12 Exterior Lamp Wiring Circuit (Part 1 Of 2):



Fig. 12 Exterior Lamp Wiring Circuit (Part 2 Of 2):
