Jeep Truck
>>
1983
>>
CJ-5 L4-151 2.5L VIN B 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

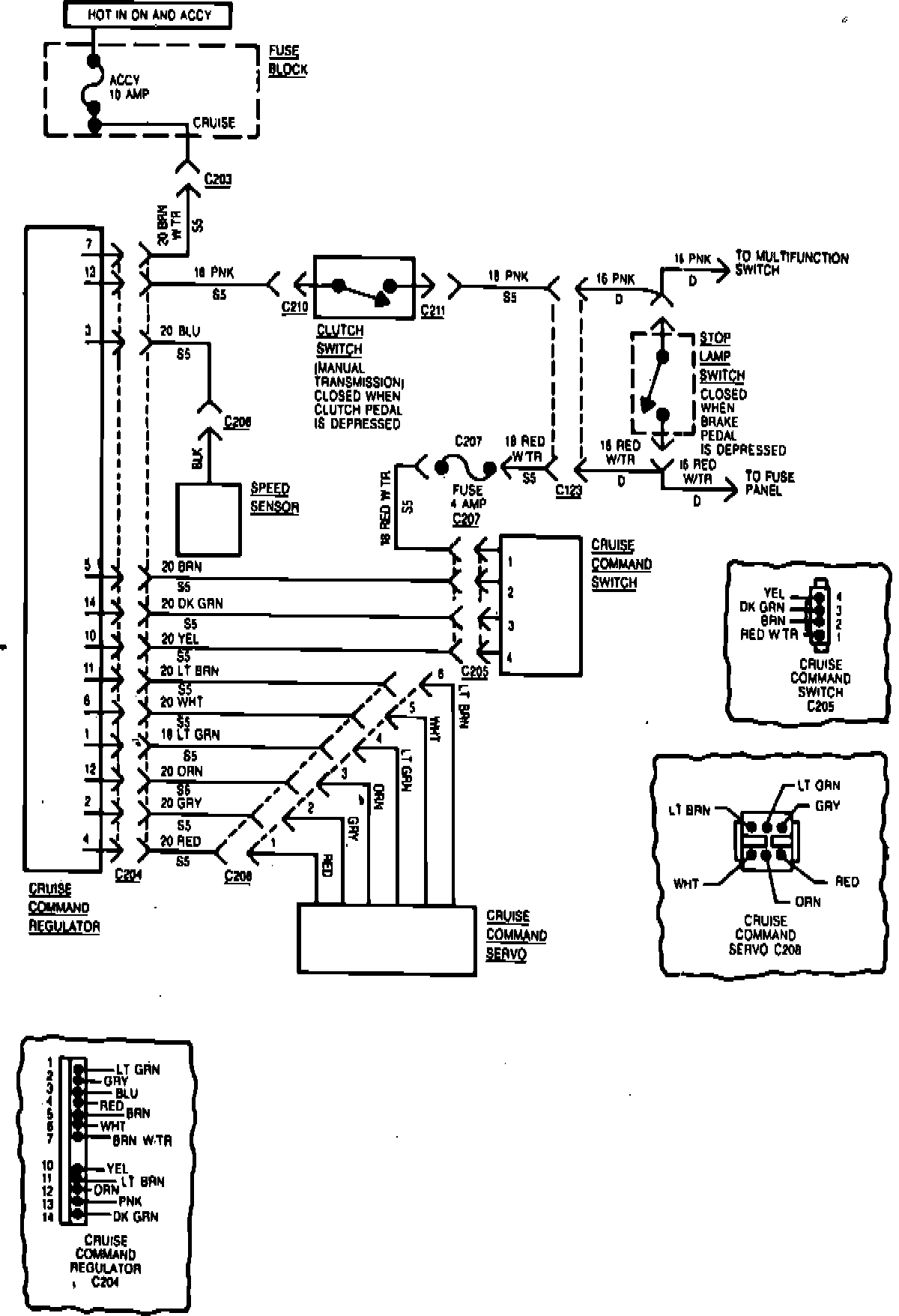

Fig. 9 Cruise Control Wiring Circuit:
