Procedures

Pollen Filter

Removal
1. Open the hood.

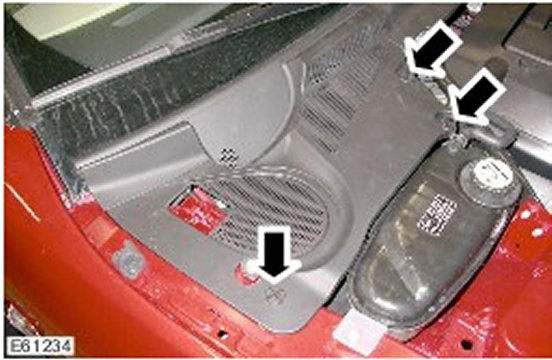

2. Remove the air intake cover.
- Remove the 3 clips.

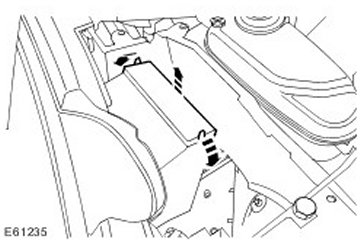

3. Release the pollen filter housing cover.
- Release from the 2 clips.



4. Caution: Remove any debris from the filter aperture.

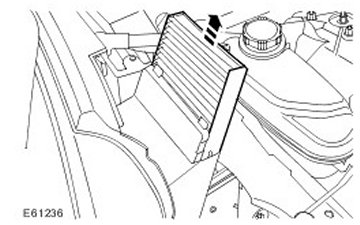

- Remove pollen filter.

Installation
1. Install the pollen filter.
2. Secure the pollen filter housing cover.
3. Install the air intake cover.
- Carefully secure the clips.
4. Close the hood.
