Passenger Side Register

Passenger Side Register

Removal

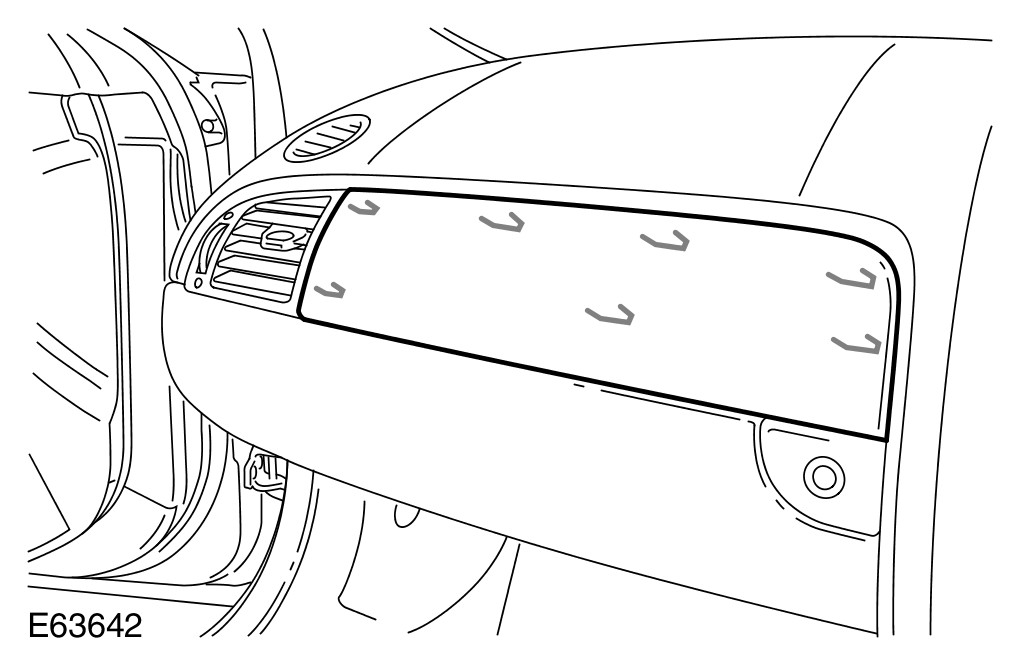

1 Remove the instrument panel passenger side reinforcement trim panel.
- Carefully release the 7 clips.

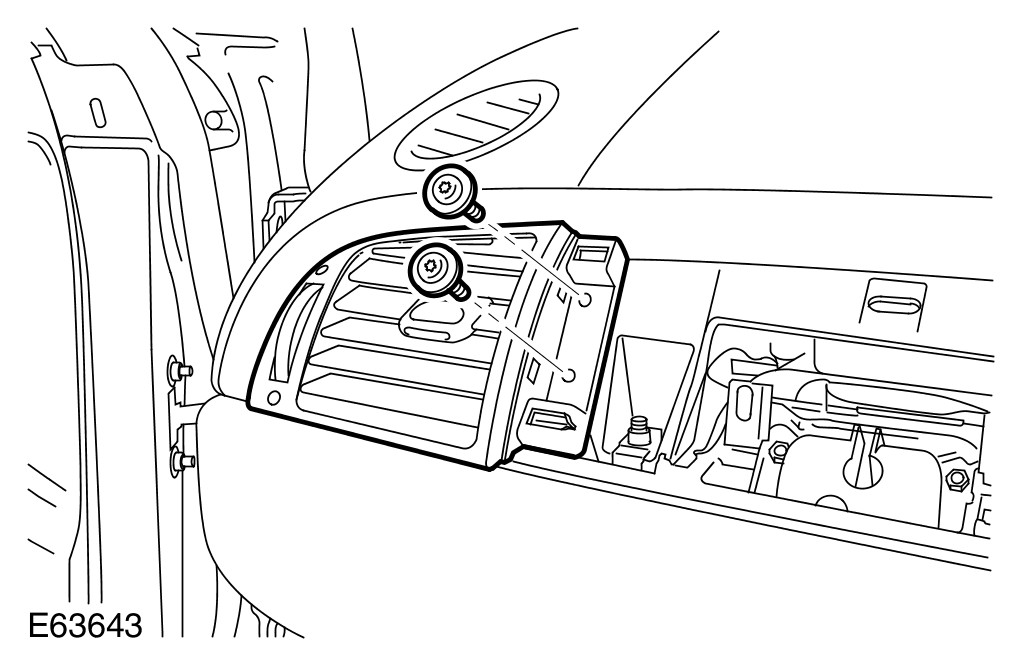

2 Remove the passenger side register.
- Remove the 2 Torx screws.
- Carefully release the component.

Installation
1 Install the passenger side register.
- Install the Torx screws.
2 Install the instrument panel passenger side reinforcement trim panel.
- Align the pegs and secure with the clips.
