Home
>>
Jaguar
>>
2010
>>
XK (X150) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
CP004 - CP005
CP004 - CP005
CP005

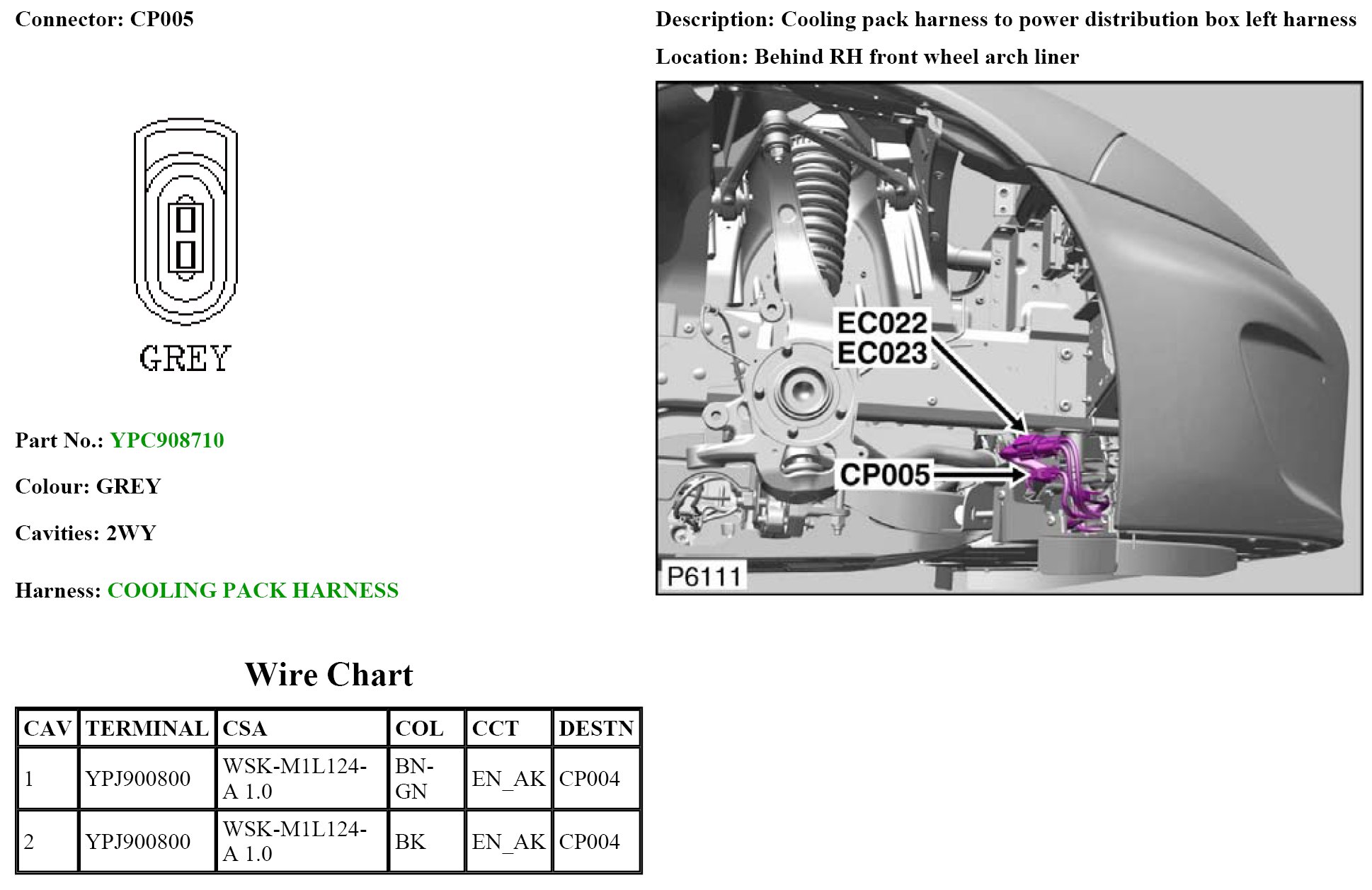

CP005:

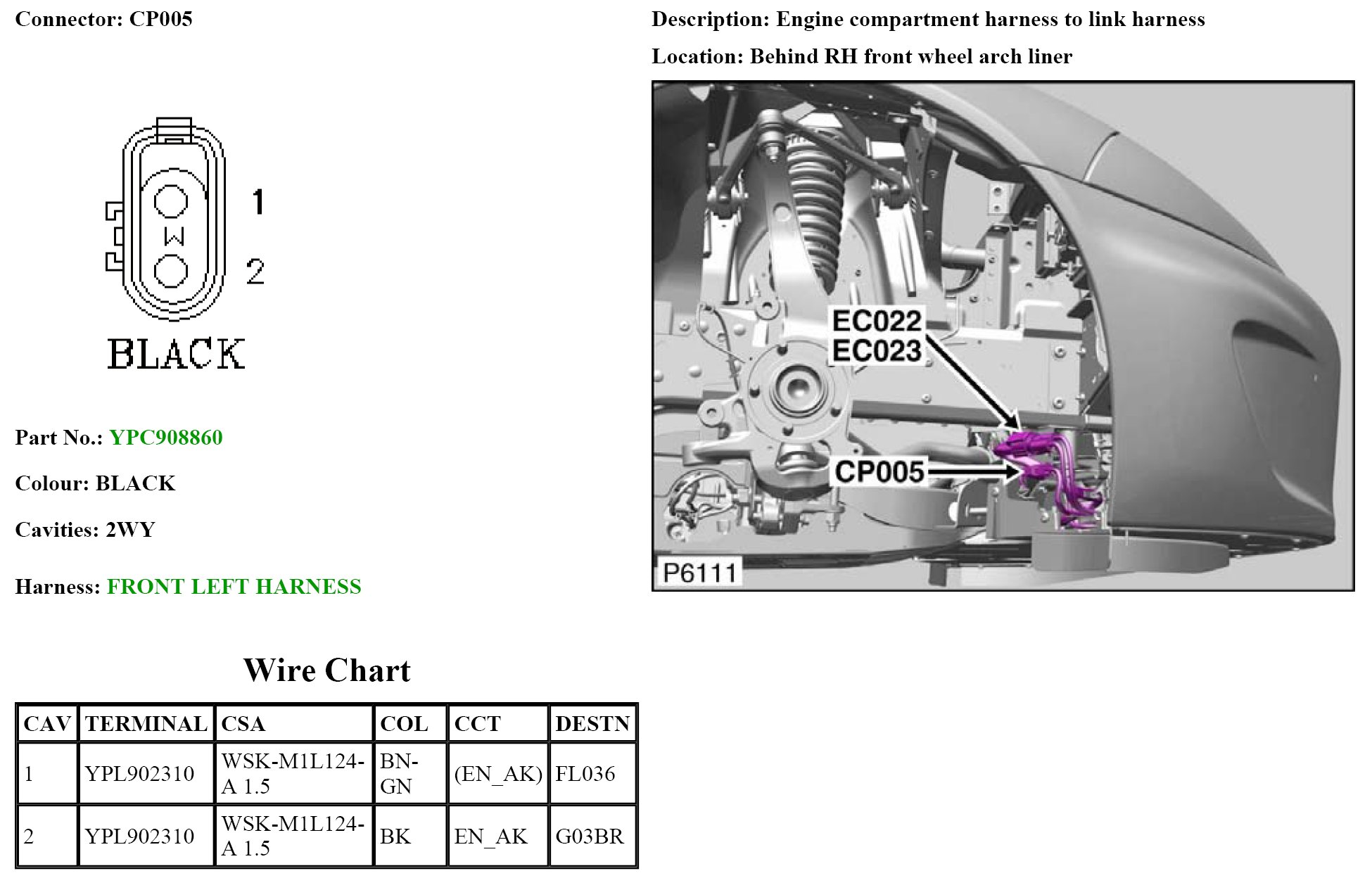

CP005:
