Windshield Washer Reservoir: Service and Repair

Windshield Washer Reservoir

Removal

NOTE:
Some fluid spillage is inevitable during this operation.
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the RH fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield




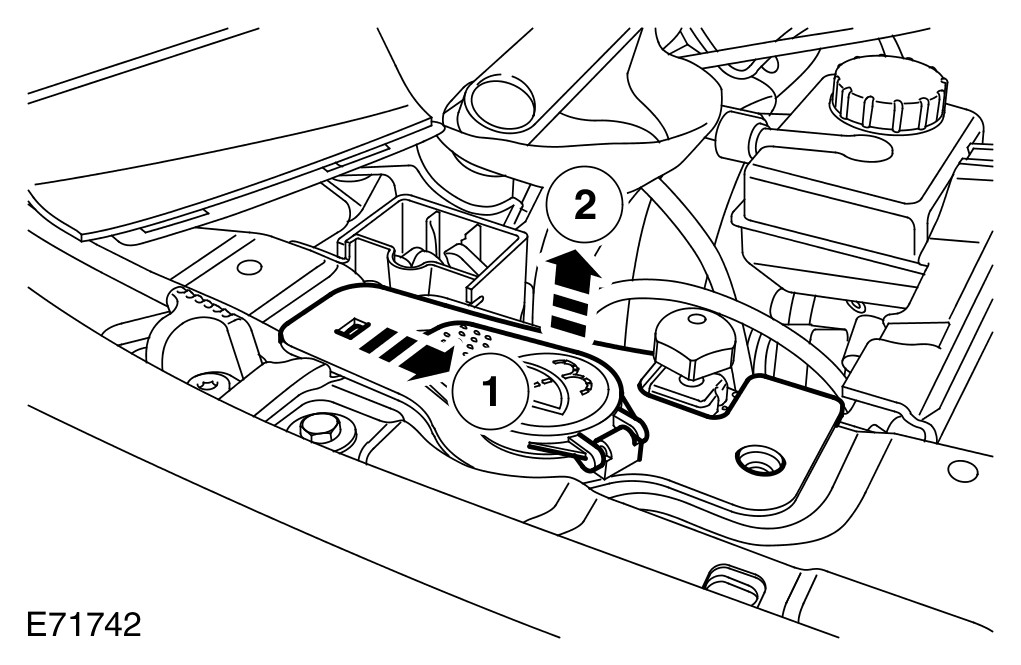

3 Remove the windshield washer reservoir filler neck.
- Release the clip.

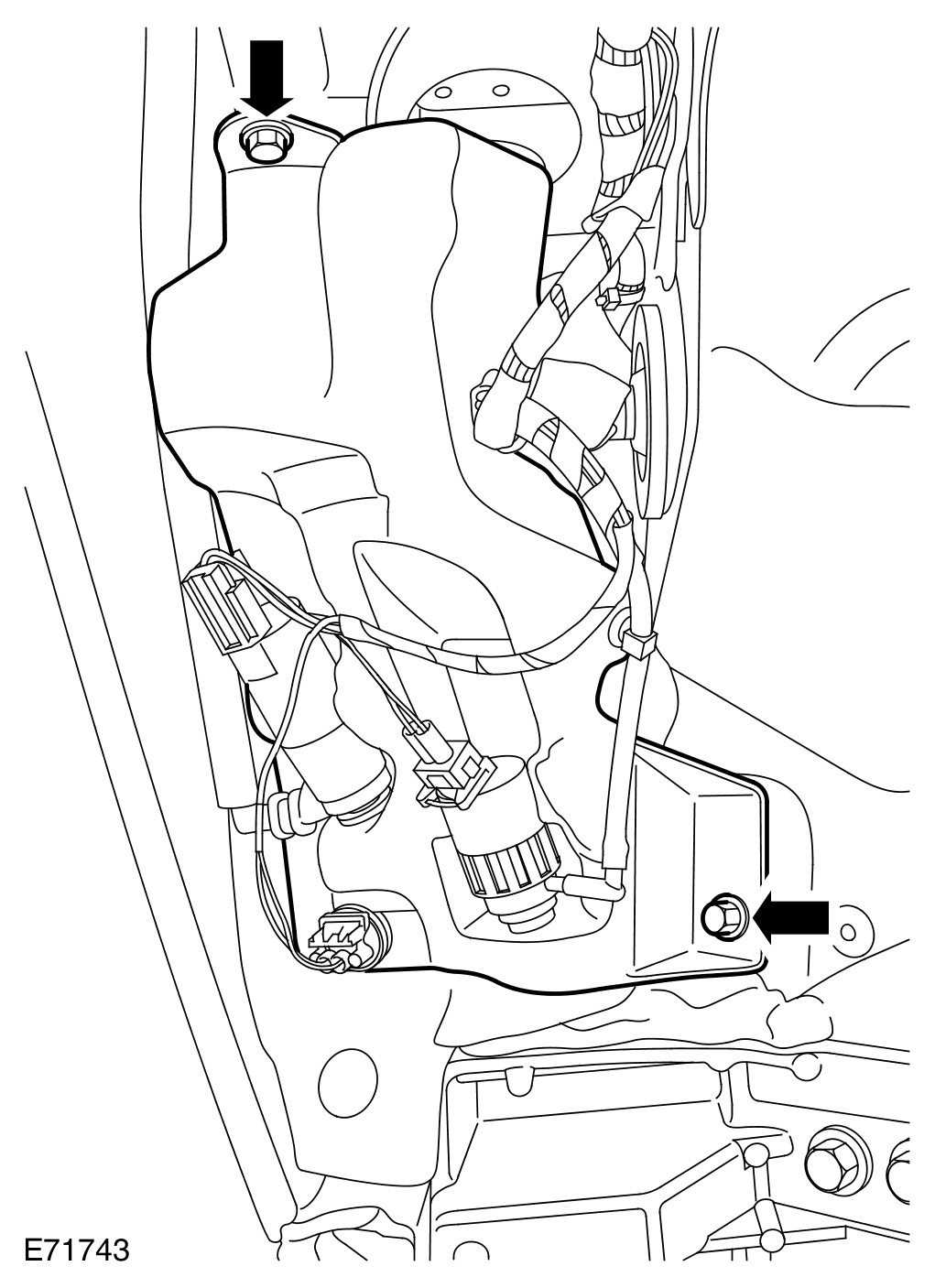

4 Release the washer reservoir.
- Remove the 2 bolts.




5
NOTE:
Note the fitted position.

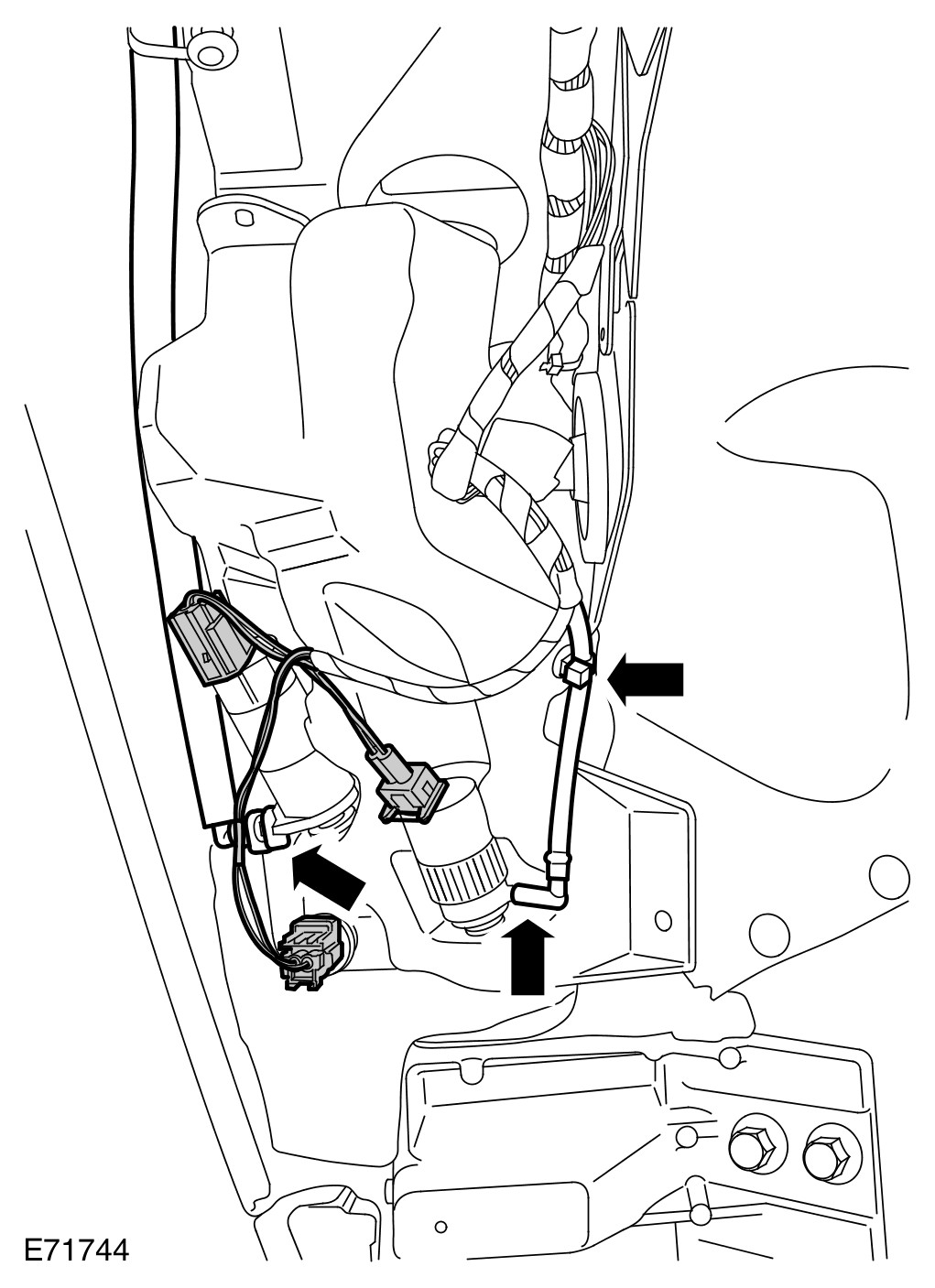

Remove the windshield washer reservoir.
- Position a container to collect spillage.
- Disconnect the 3 electrical connectors.
- Carefully release the clip.
- Disconnect the 2 washer jet hoses.
6
NOTE:
Do not disassemble further if the component is removed for access only.

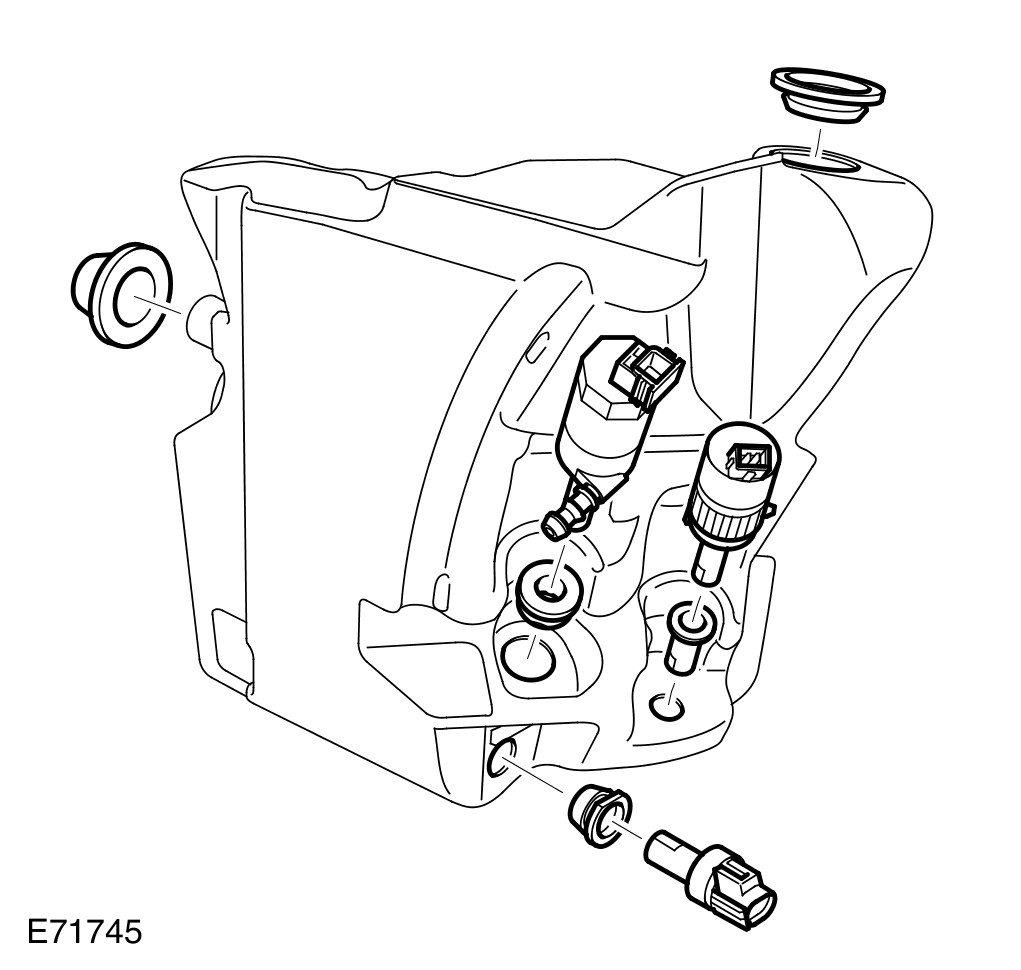

Remove the washer reservoir low level sensor.
- Remove and discard the seal.
7 Remove the headlamp washer pump.
- Remove and discard the seal.
8 Remove the windshield washer pump.
- Remove and discard the seal.
9 Remove the filler neck seal.





10 Remove the rubber mount.

Installation
1 Install the rubber mount.
2 Install the filler neck seal.
3 Install the windshield washer pump.
- Install a new seal.
4 Install the headlamp washer pump.
- Install a new seal.
5
NOTE:
Do not disassemble further if the component is removed for access only.
Install the washer reservoir low level sensor.
- Install a new seal.
6
NOTE:
Align to the position noted on removal.
Install the windshield washer reservoir.
- Connect the washer jet hoses.
- Connect and secure the electrical connectors.
- Tighten the bolts to 6 Nm (4 lb.ft).
7 Install the windshield washer reservoir filler neck.
- Release the clip.
8 Install the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
9 Refill the washer reservoir.
