Windshield Wiper Motor [RHD RWD]

Windshield Wiper Motor

Removal
1 Remove the plenum chamber panel. For additional information, refer to Cowl Vent Screen Service and Repair
2 Remove the coolant expansion tank. For additional information, refer to Coolant Expansion Tank

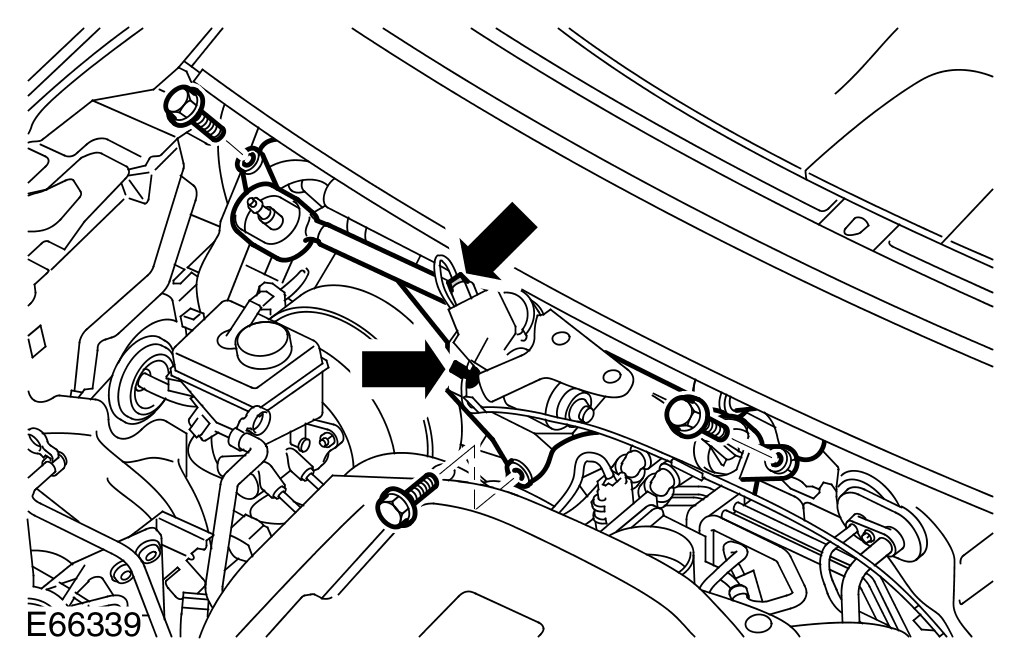

3 Remove the engine compartment braces.
- Release the grommet.
- Remove the 4 Torx bolts.
- Repeat the above procedure for the other side.

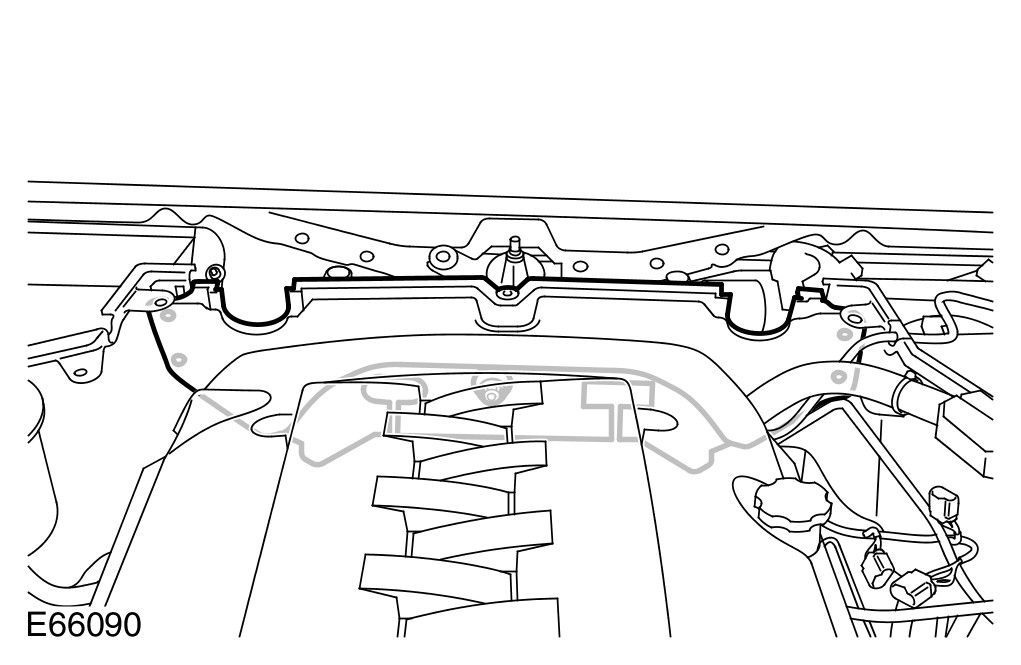

4 Remove the secondary bulkhead panel.
- Remove the nut.
- Release the 4 clips.

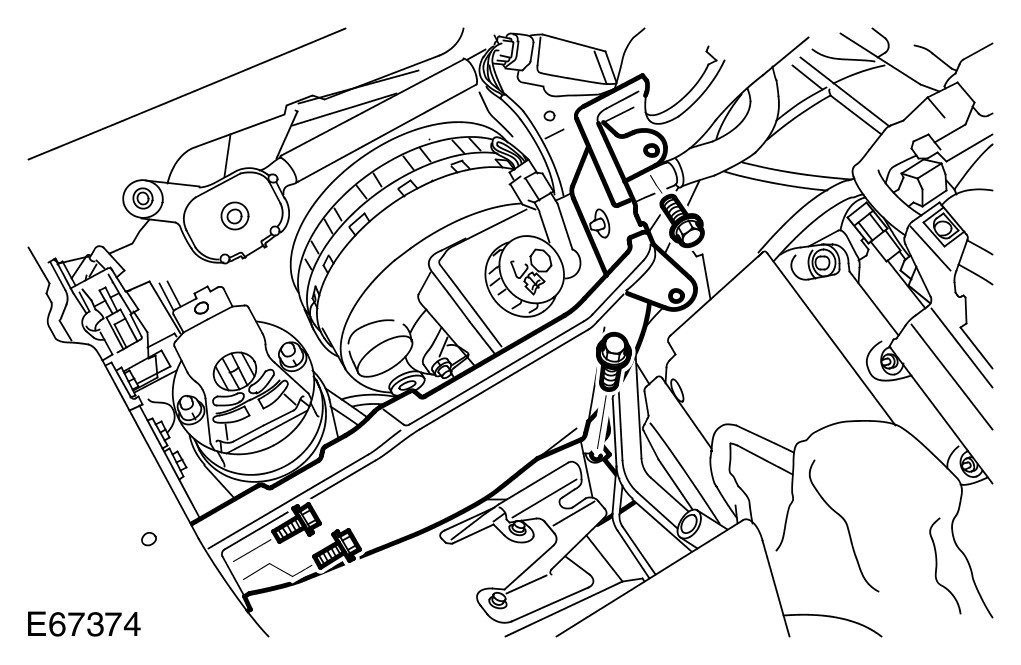

5 Release the engine compartment RH side wall.
- Remove the 4 bolts.




6 Remove the windshield wiper motor.
- Disconnect the electrical connector.
- Remove the 3 bolts.

Installation
1 Install the windshield wiper motor.
- Tighten the bolts to 10 Nm (7 lb.ft).
- Connect and secure the electrical connector.
2 Install the engine compartment RH side wall.
- Tighten the bolts to 6 Nm (4 lb.ft).
3 Install the secondary bulkhead panel.
- Carefully secure the clips.
- Tighten the nut to 4 Nm (3 lb.ft).
4 Install the engine compartment braces.
- Tighten the Torx bolts to 25 Nm (18 lb.ft).
- Install the grommet.
- Repeat the above procedure for the other side.
5 Install the coolant expansion tank. For additional information, refer to Coolant Expansion Tank
6 Remove the plenum chamber panel. For additional information, refer to Cowl Vent Screen Service and Repair
