Steering Wheel: Service and Repair

Steering Wheel

Special Service Tools






Clockspring locking tool

211-326

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2 Make the SRS system safe.
3 Remove the driver air bag module. For additional information, refer to Driver Air Bag Module Driver Air Bag Module




4
NOTE:
Note the fitted position.
Remove the steering wheel.
- Disconnect the electrical connector.
- Loosen, but do not fully remove the bolt.
- Release the steering wheel from the spline.
- Remove the bolt.
- Release the electrical harness.




5
CAUTION: Failing to install the clockspring special tool, may result in damage to vehicle.
CAUTION: Do not dismantle the clockspring, it has no serviceable parts and must be replaced as a complete assembly.
CAUTION: Do not allow the clockspring to unwind.
Install the special tool to the clockspring.




6
NOTE:
Do not disassemble further if the component is removed for access only.

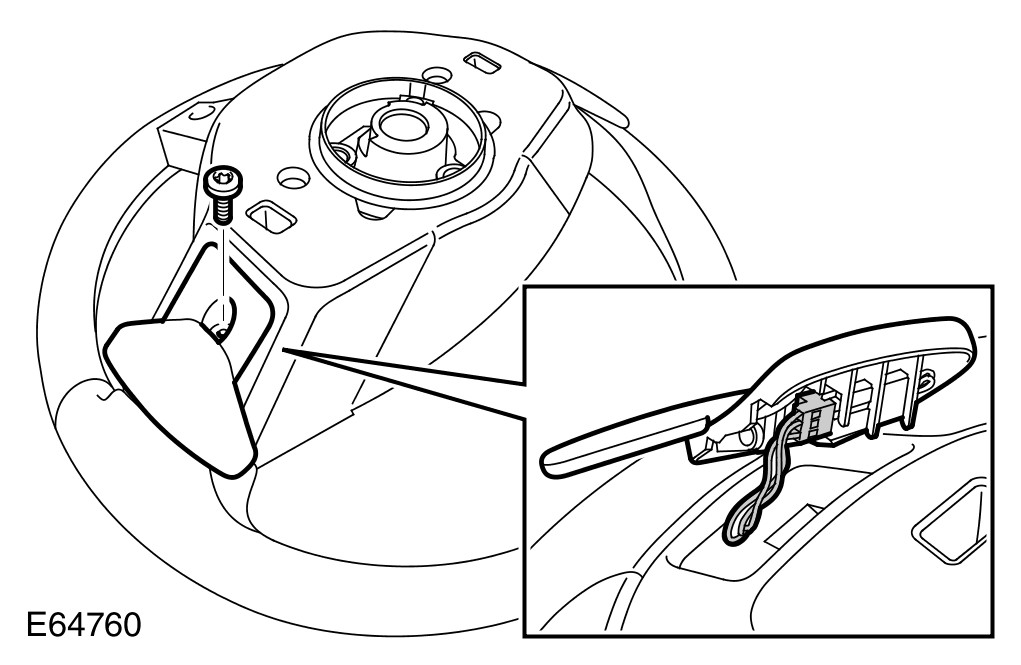

Remove the upshift and downshift paddle switches.
- Remove the Torx bolt.
- Release the assembly.
- Disconnect the electrical connector.
- Repeat the procedure and remove the opposite hand.

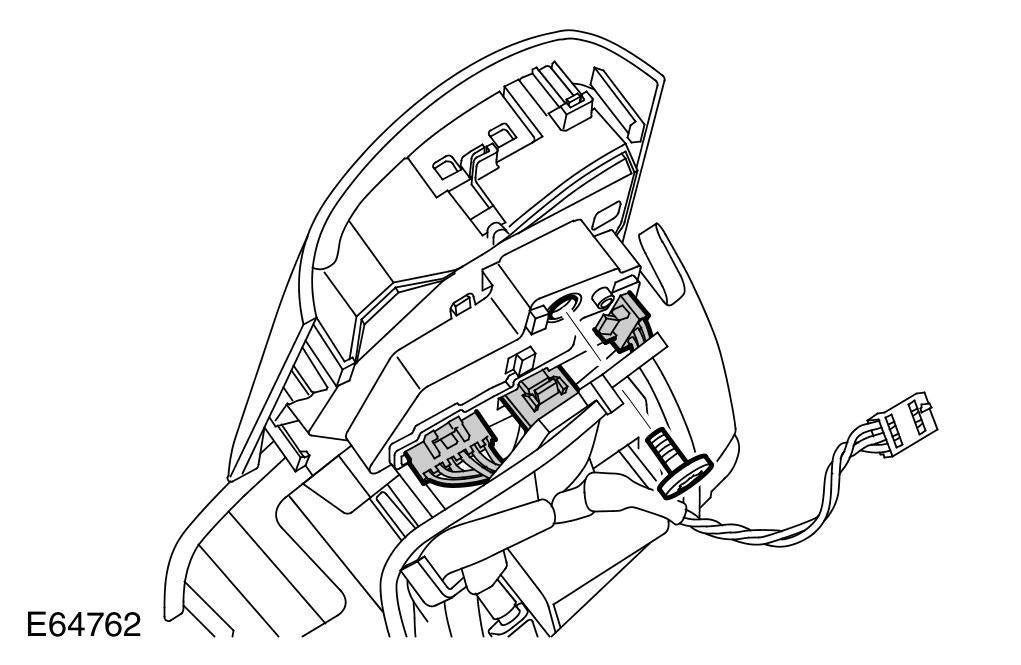

7 Remove the steering wheel switch assembly.
- Remove the Torx bolt.
- Disconnect the electrical connectors.
- Repeat the procedure and remove the opposite hand.

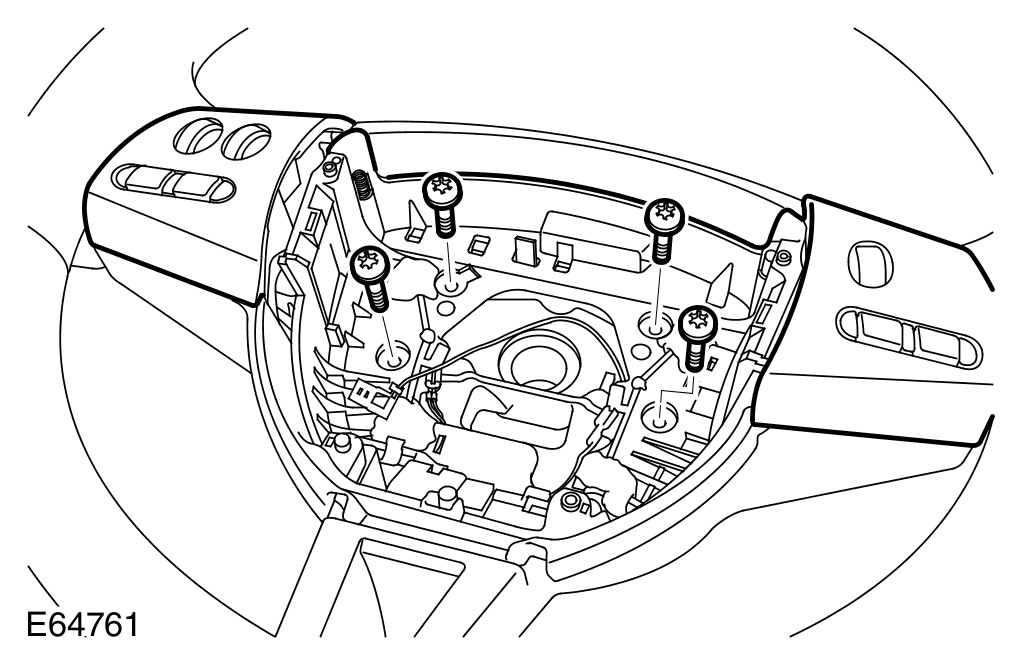

8 Remove the air bag housing.
- Remove the 4 Torx bolts.
- Release the electrical harness.

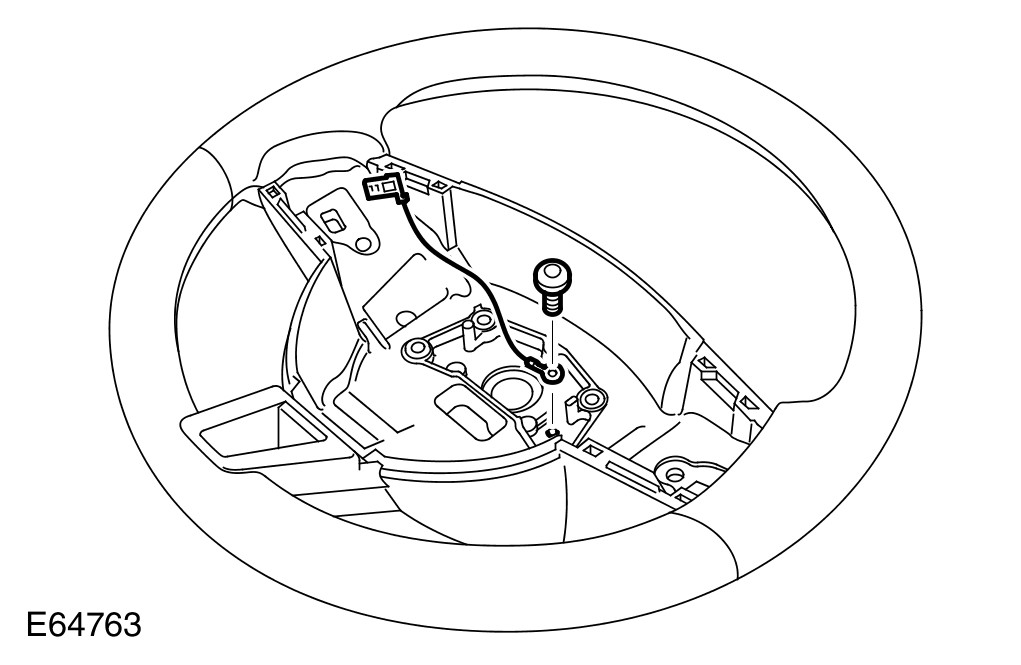

9 Remove the air bag ground cable.
- Remove the Torx screw.

Installation





1 Install the air bag ground cable.
- Install the Torx screw.




2 Install the air bag housing.
- Secure the electrical harness.
- Install the Torx bolts and tighten to 6 Nm (4 lb.ft).




3 Install the steering wheel switch assembly.
- Connect and secure the electrical connectors.
- Tighten the Torx bolt to 3 Nm (2 lb.ft).
- Repeat the above procedure on the opposite hand.




4 Install the upshift and downshift paddle switches.
- Connect and secure the electrical connector.
- Tighten to 3 Nm.
- Repeat the above procedure on the opposite hand.




5
CAUTION: Make sure that the arrow on the cassette is centered and pointing vertically prior to the steering wheel installation. On removal of the special tool keep the clockspring cables taught to prevent the cassette moving from the set position. Do not allow the clockspring to unwind. Failure to follow this instruction may result in damage to the component.
Remove the special tool.




6
CAUTION: Check the alignment arrow is still in the vertical position with the wheels straight ahead to make sure that the directional indicator cancellation is central.
Install the steering wheel.
- Position the electrical harness.
- Tighten the bolt to 40 Nm (30 lb.ft).
- Connect the electrical connector.
7 Install the driver air bag module. For additional information, refer to Driver Air Bag Module Driver Air Bag Module
8 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
