Steering Column Lock: Service and Repair

Steering Column Lock Actuator

Special Service Tools

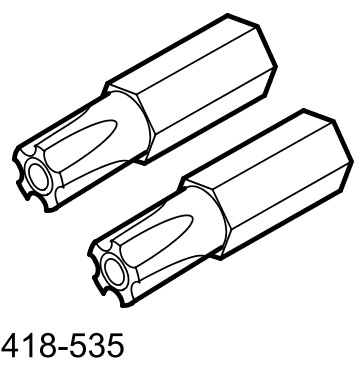

5 point security torx bit

418-535

Removal
1 Remove the steering column.




2 Remove the steering column lock actuator.

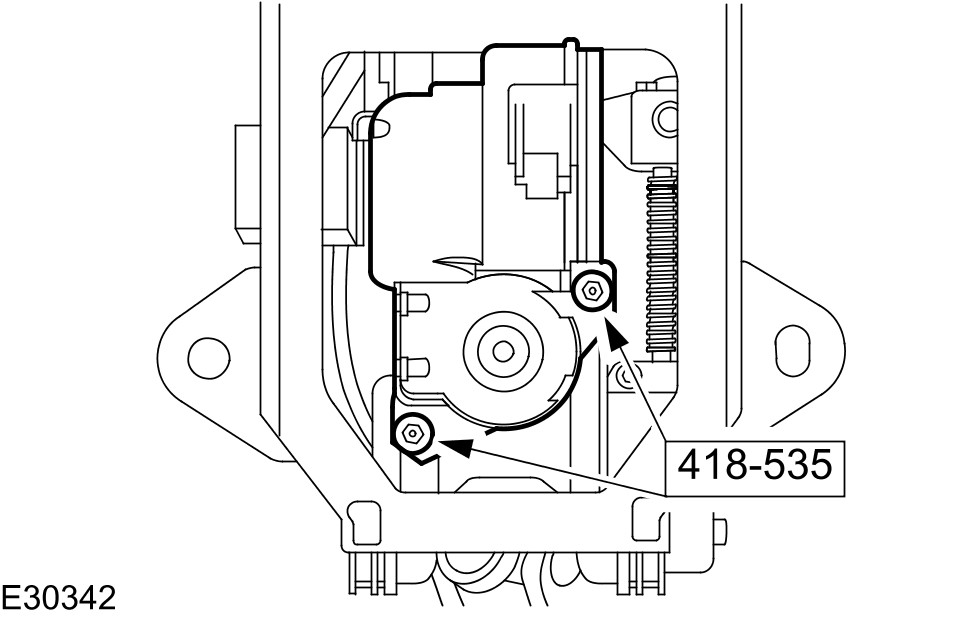

- Using the special tool, remove the steering column lock actuator retaining bolts.

Installation





1 To install, reverse the removal procedure.
- Tighten to 9 Nm.
