Passenger Air Bag Module





Passenger Air Bag Module

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications
2 Make the SRS system safe. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering
3 Remove the instrument panel. For additional information, refer to Instrument Panel Instrument Panel
4 Remove the navigation system display module. For additional information, refer to Navigation System Display Module Service and Repair




5
NOTE:
The Torx screws may not be fitted.
Remove the center register.
- Remove the 2 Torx screws.
- Carefully release the component.




6 Remove the instrument panel driver's side reinforcement trim panel.
- Carefully release the 4 clips.




7
CAUTION: Care must be taken to avoid damage to the mating surfaces.
Remove the driver side register trim panel.
- Remove the 2 Torx screws.




8 Remove the instrument panel passenger side reinforcement trim panel.
- Carefully release the 7 clips.




9 Remove the passenger side register.
- Remove the 2 Torx screws.
- Carefully release the component.

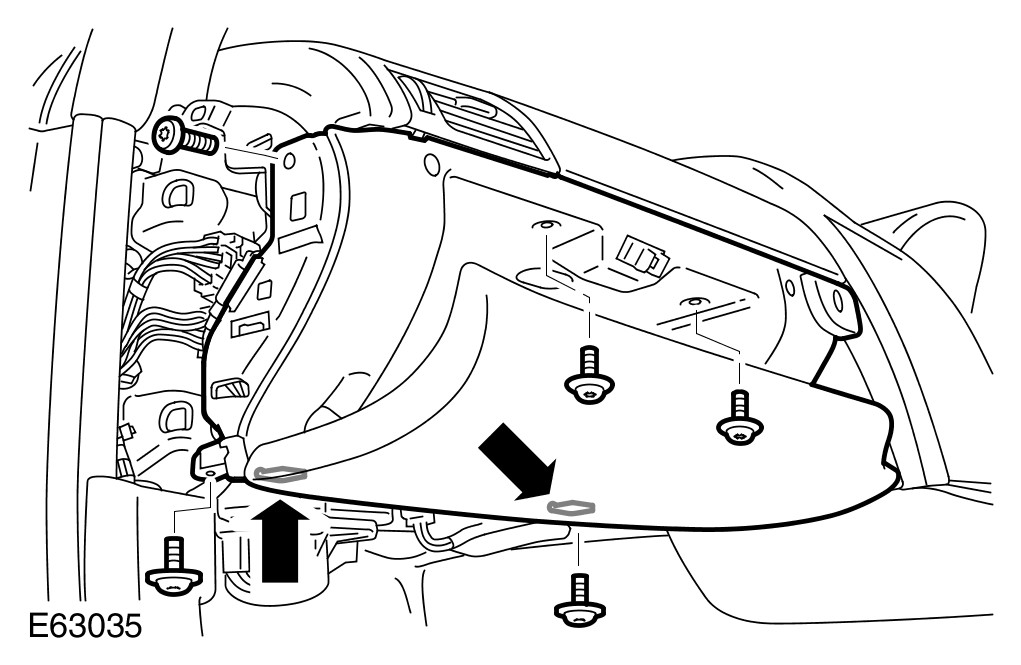

10 Release the glove compartment.
- Remove the 5 Torx screws.
- Release the 2 clips.

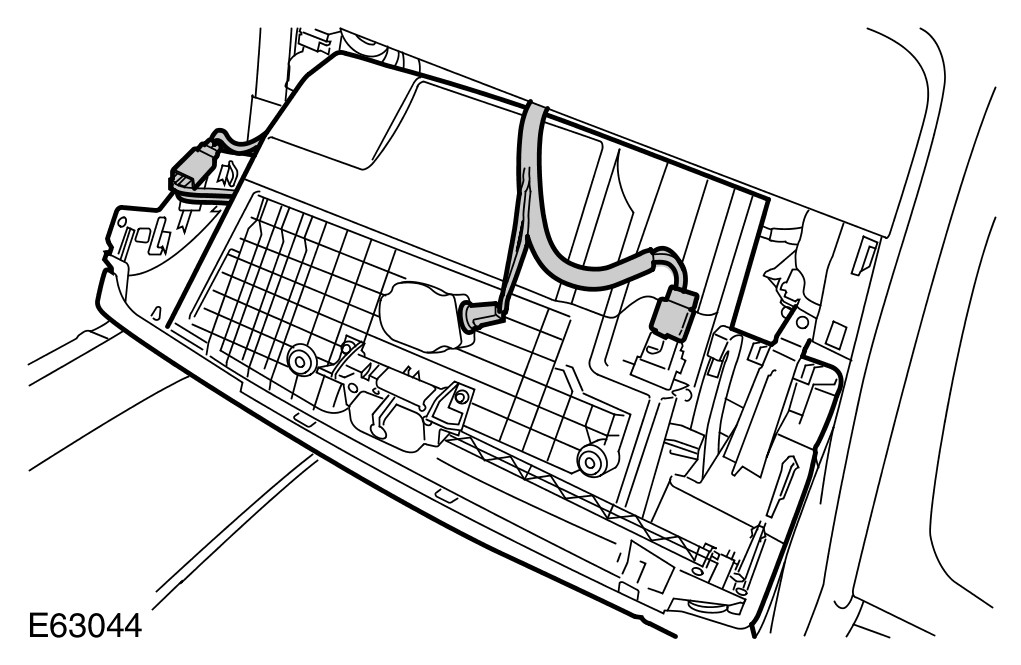

11 Remove the glove compartment.
- Disconnect the 2 electrical connectors.
- Release the glove compartment lamp assembly.





12
CAUTION: Care must be taken to avoid damage to the mating surfaces.

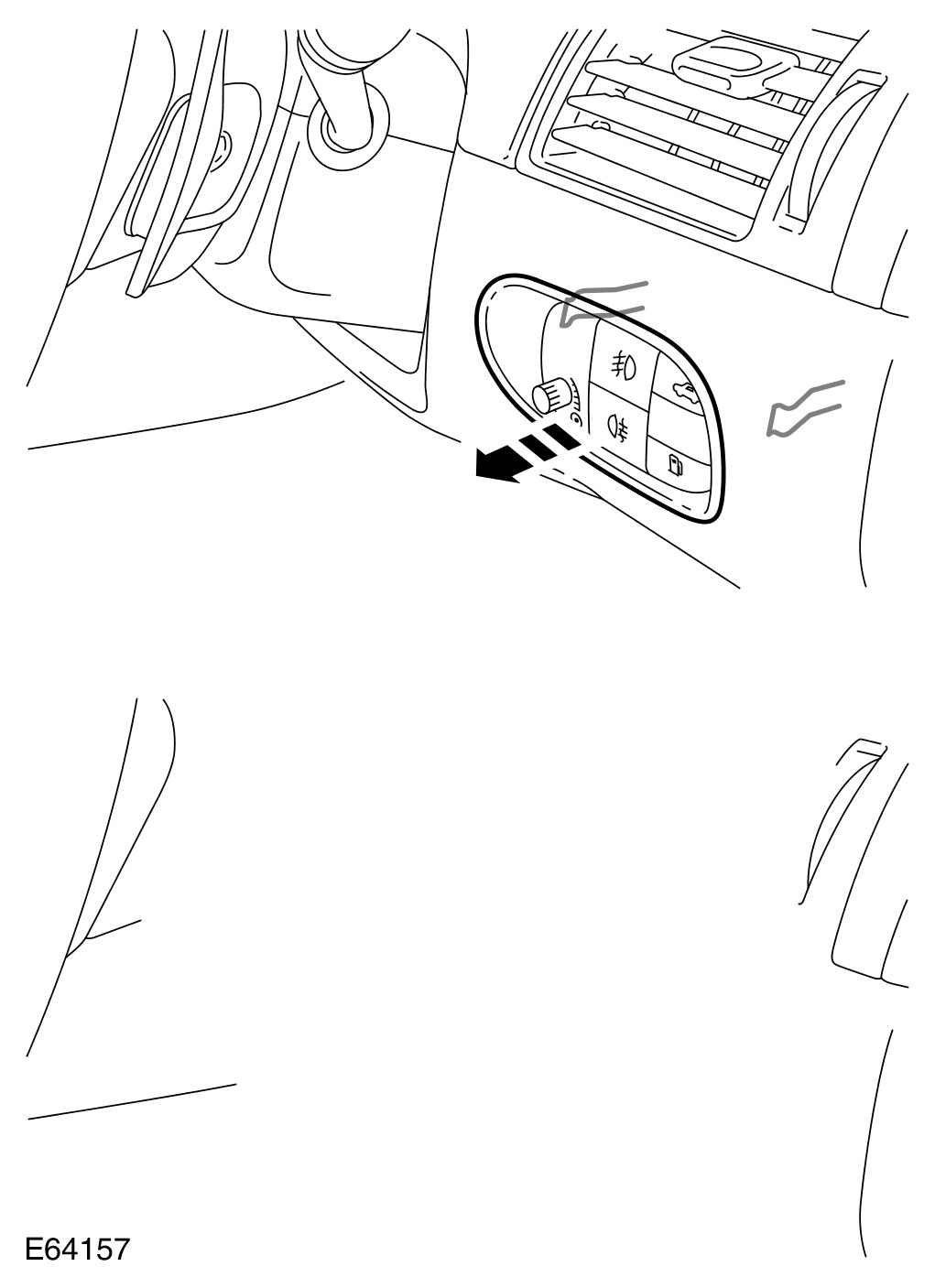

Carefully release and remove the rheostat switch assembly.
- Disconnect the electrical connector.





13 Release the MOST diagnostic port.
- Carefully release the clip.

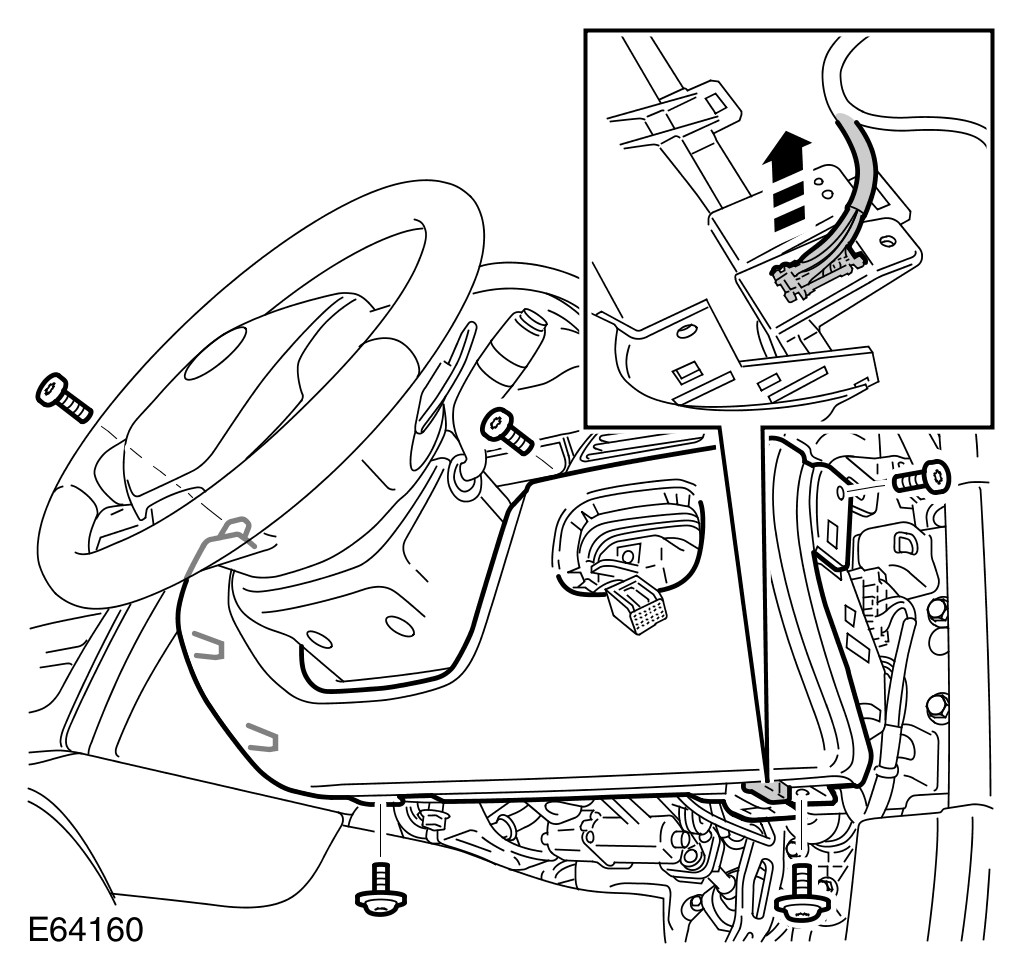

14 Remove the instrument panel, lower trim panel.
- Remove the 3 Torx bolts.
- Remove the 2 Torx screws.
- Release the 2 clips.
- Release the vehicle diagnostic port.





15
CAUTION: Protect the surrounding trim from damage when changing the component.

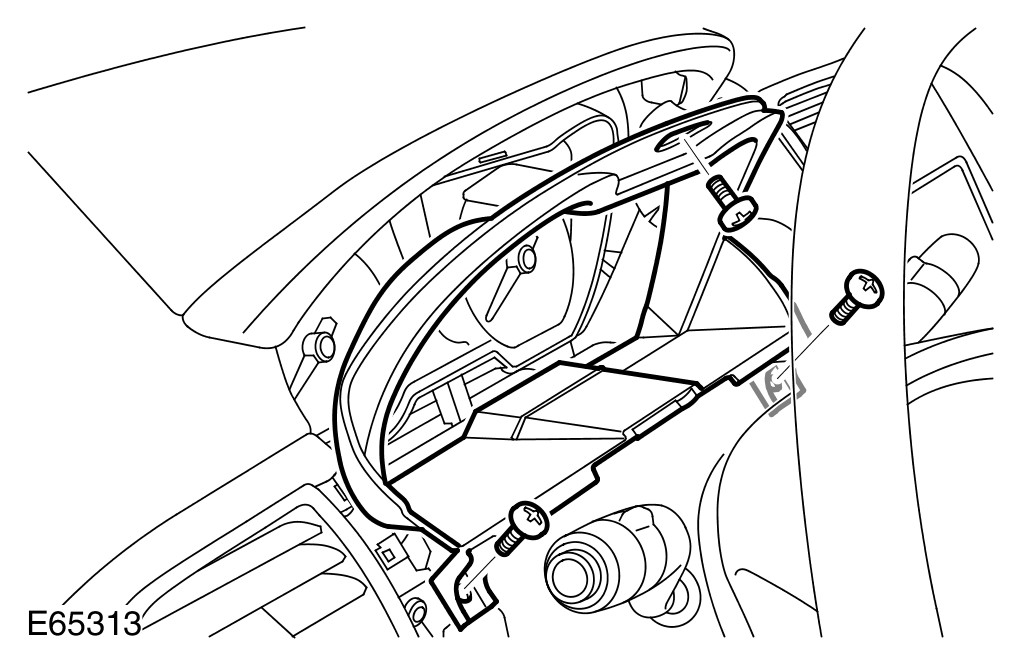

Remove the instrument cluster surround.
- Remove the 3 screws.

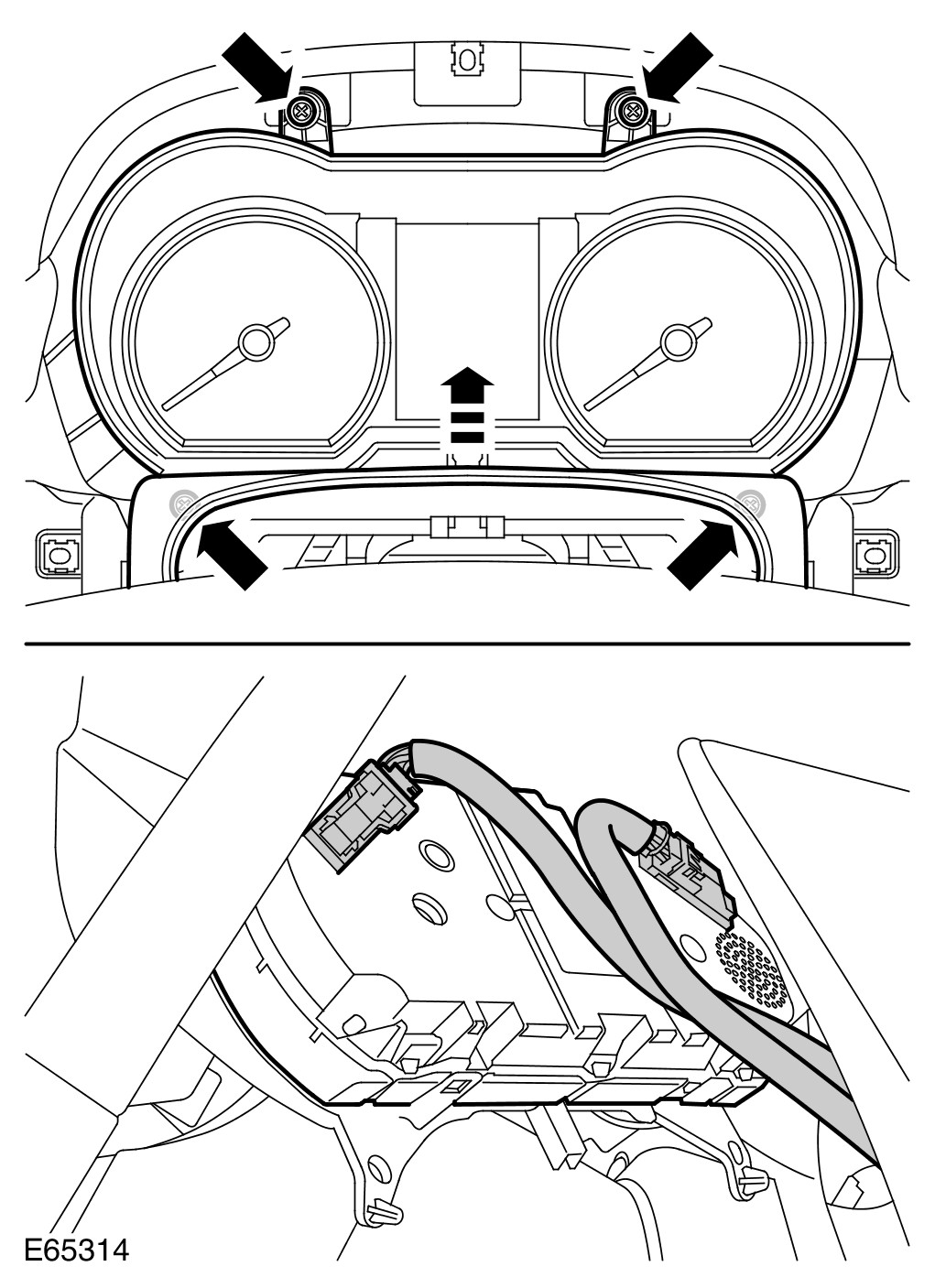

16 Remove the instrument cluster.
- Raise the steering column finisher for access to the lower screws.
- Remove the 4 screws.
- Disconnect the 2 electrical connectors.





17 Remove the in-vehicle temperature sensor.
- Remove the Torx screw.
- Disconnect the electrical connector.





18
CAUTION: Protect the surrounding trim from damage when changing the component.

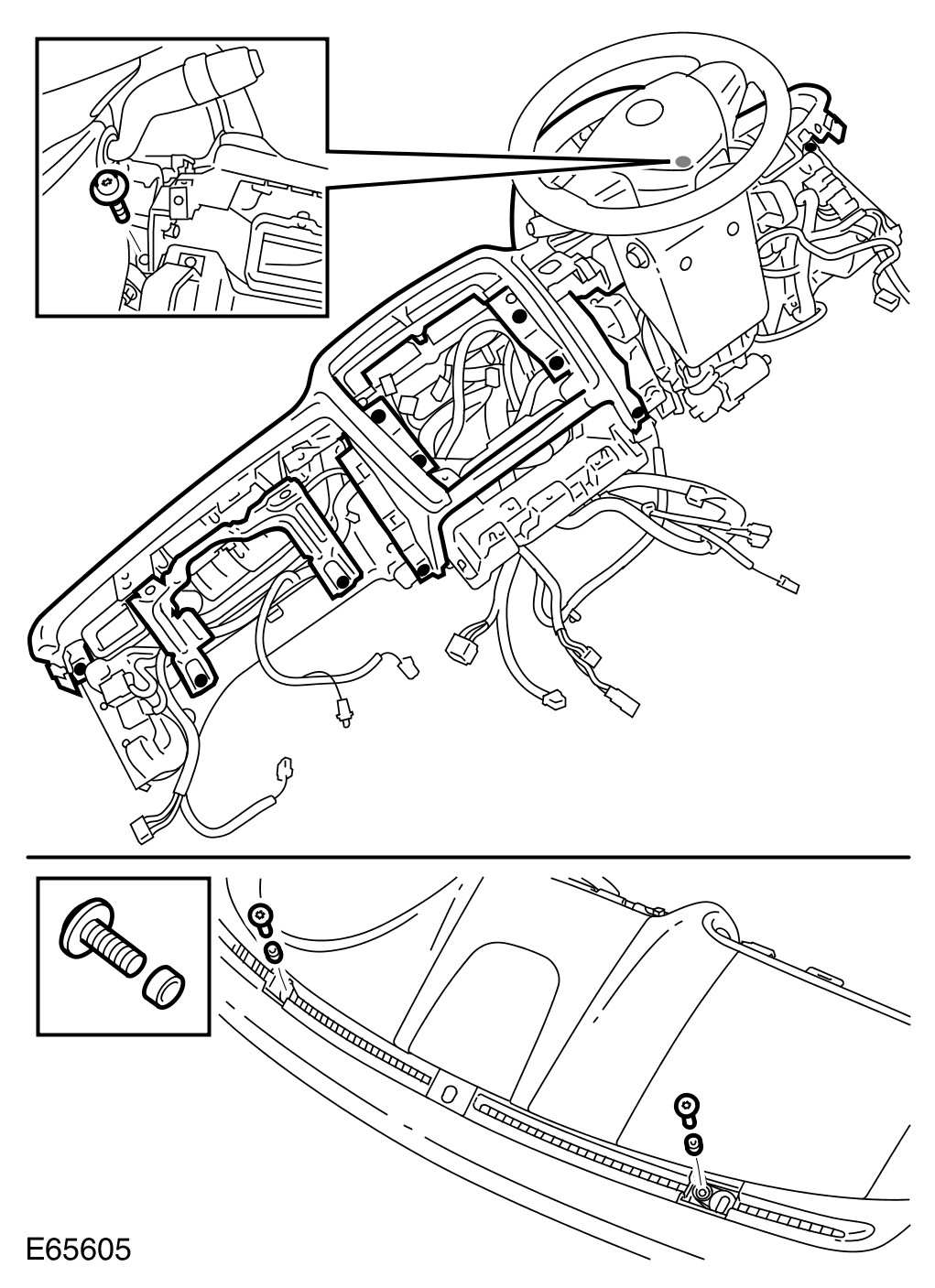

Release the instrument panel upper trim.
- Remove the 11 Torx screws.
- Collect the compression limiters.
- Release the glove box support bracket.
- Remove the 2 Torx screws.
- With assistance, separate the components.

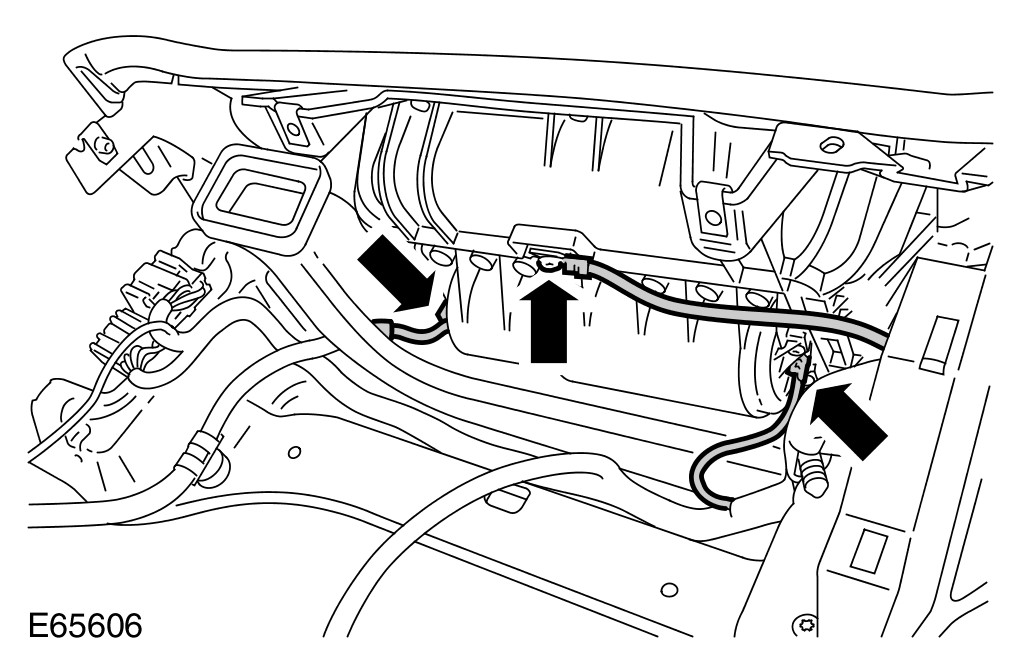

19 Disconnect the passenger air bag ground cable.
- Remove the Torx bolt.





20 Disconnect the passenger air bag module 2 electrical connectors.
- Carefully release the clips.

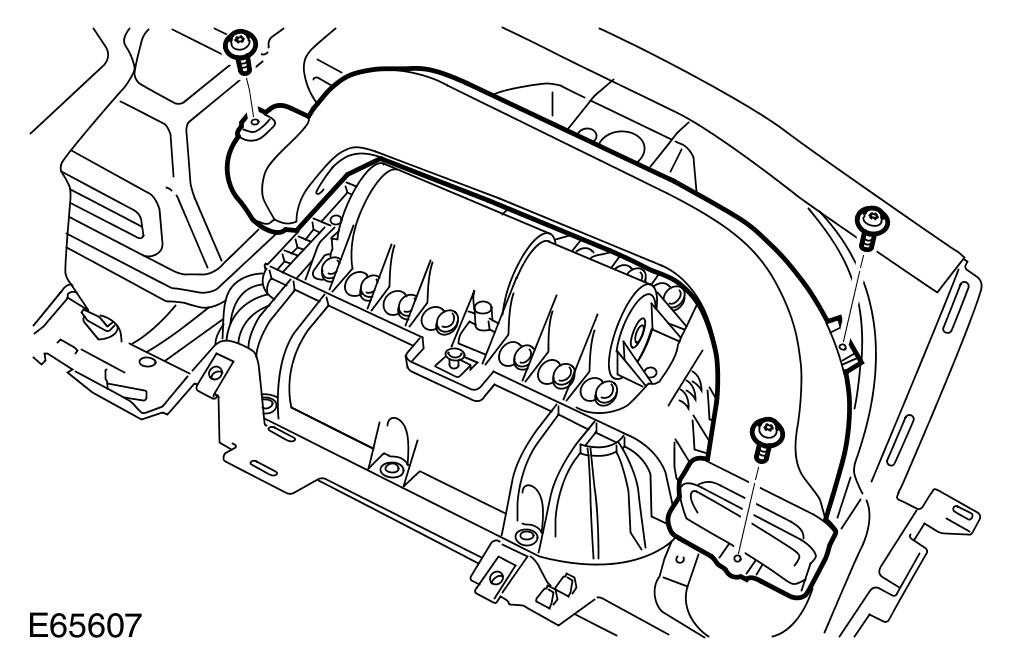

21 Remove the heater duct.
- Remove the 3 Torx screws.

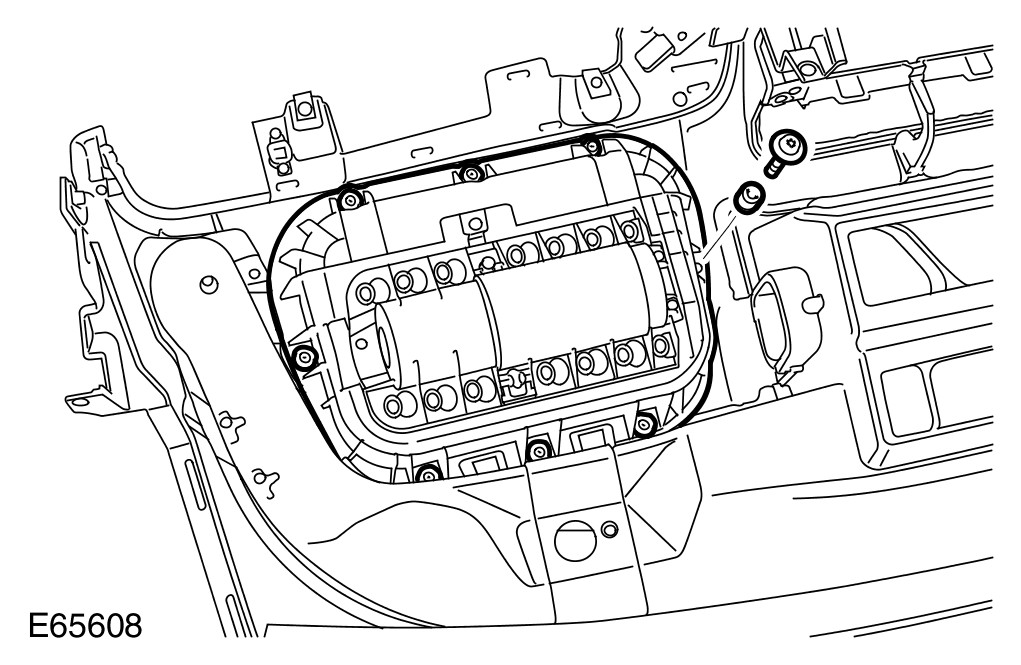

22 Remove the passenger air bag module.
- Remove the 8 Torx bolts.

Installation
1 Install the passenger air bag module.
- Tighten the Torx bolts to 3 Nm (2 lb.ft).
2 Install the heater duct.
- Install the Torx screws.
3 Connect the passenger air bag module electrical connectors.
4 Connect the passenger air bag ground cable.
- Install the Torx bolt and tighten to 6 Nm (4 lb.ft).
5 Install the instrument panel upper trim.
- With assistance, align the components.
- Install the compression limiters.
- Install and tighten the Torx screws.
6 Install the in-vehicle temperature sensor.
- Position the electrical harness.
- Connect and secure the electrical connector.
- Install the Torx screw.
7 Install the instrument cluster.
- Connect and secure the electrical connectors.
- Install the screws.
8 Install the instrument cluster surround.
- Install the screws.
9 Install the MOST diagnostic port.
- Secure the clip.

10 Install the instrument panel, lower trim panel.
- Install and secure the diagnostic socket.
- Align the clips.
- Install the Torx screws.
- Install the Torx bolts and tighten to 6 Nm (4 lb.ft).

11 Install the rheostat switch assembly and align the instrument panel lower trim panel.
- Secure the switch assembly clips.
- Connect the switch assembly electrical connector.

12 Install the glove compartment.
- Install the lamp assembly.
- Connect and secure the electrical connectors.
- Tighten the Torx screws.

13 Install the passenger side register.
- Install the Torx screws.

14 Install the instrument panel passenger side reinforcement trim panel.
- Align the pegs and secure with the clips.

15 Install the driver side register trim panel.
- Install the Torx screws.

16 Install the instrument panel driver's side reinforcement trim panel.
- Align the pegs and secure with the clips.

17
NOTE:
The Torx screws may not be fitted.
Carefully install the center register.
- Install the Torx screws.

18 Install the navigation system display module. For additional information, refer to Navigation System Display Module Service and Repair

19 Install the instrument panel. For additional information, refer to Instrument Panel Instrument Panel

20 Connect the battery ground cable and install the cover. For additional information, refer to Specifications

21 Connect WDS to the vehicle and configure a new module.
