Center Mounted Brake Lamp: Service and Repair

High Mounted Stoplamp

Removal
1 Remove the liftgate lower trim panel. For additional information, refer to Liftgate Lower Trim Panel Liftgate Lower Trim Panel

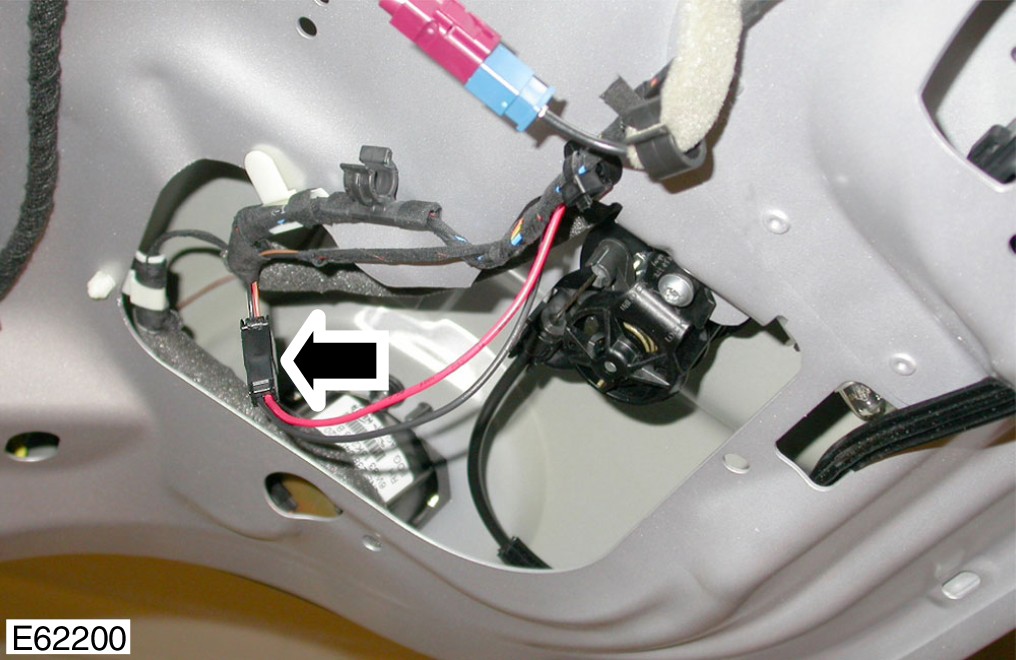

2 Disconnect the high mounted stoplamp electrical connector.

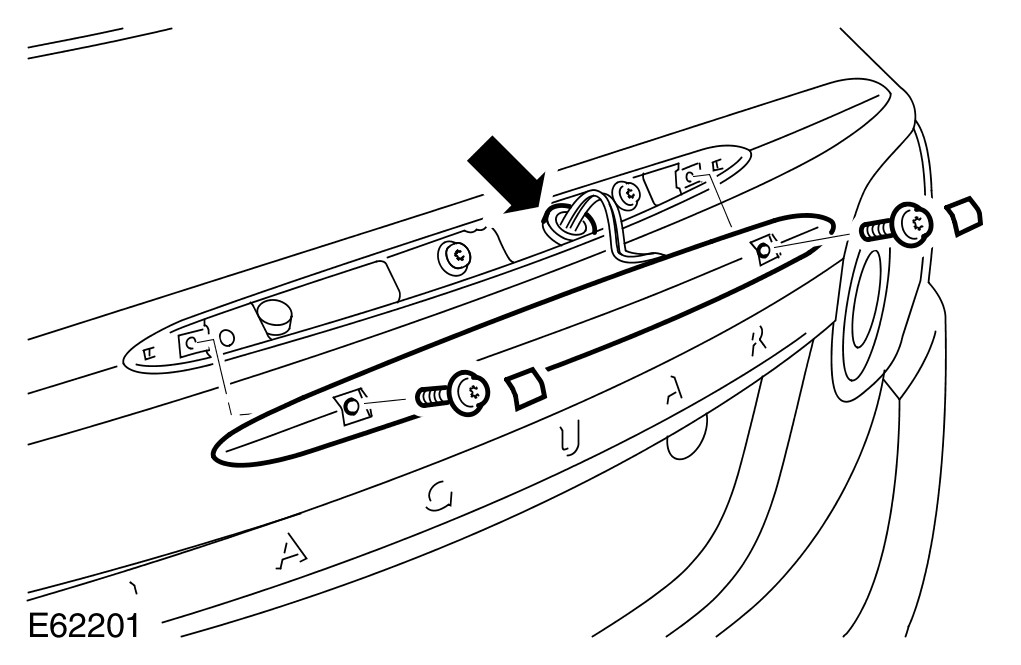

3 Remove the high mounted stoplamp.
- Carefully release the Torx bolt covers.
- Remove the 2 Torx bolts.

Installation
1 Install the high mounted stoplamp.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Install the Torx bolt covers.
2 Connect the high mounted stoplamp electrical connector.
3 Install the liftgate lower trim panel. For additional information, refer to Liftgate Lower Trim Panel Liftgate Lower Trim Panel
