Removal and Replacement

Pollen Filter

Removal
1 Open the hood.

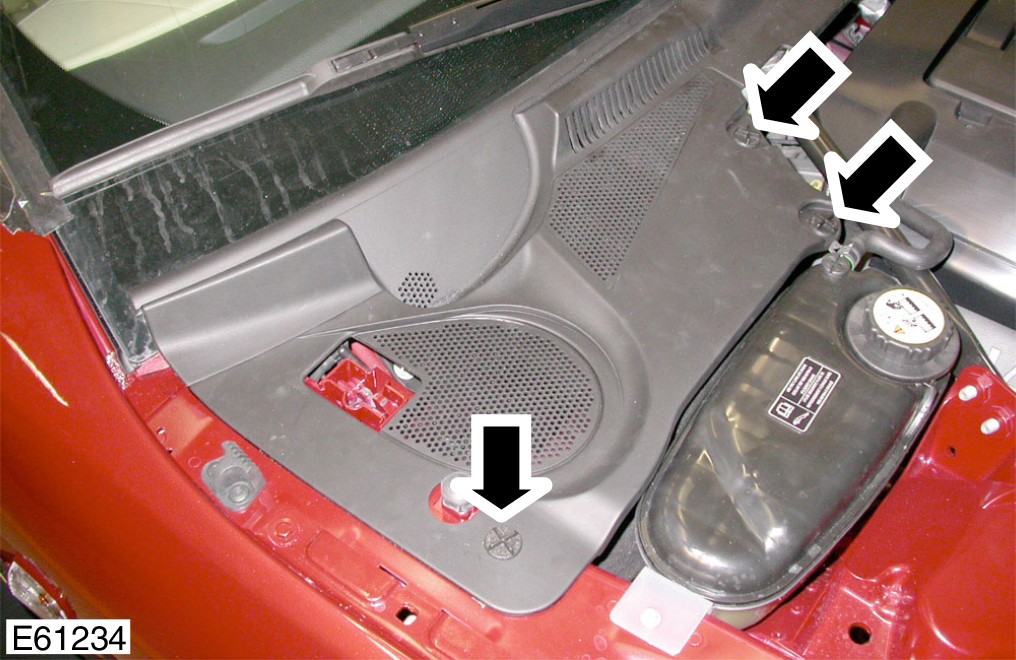

2 Remove the air intake cover.
- Remove the 3 clips.

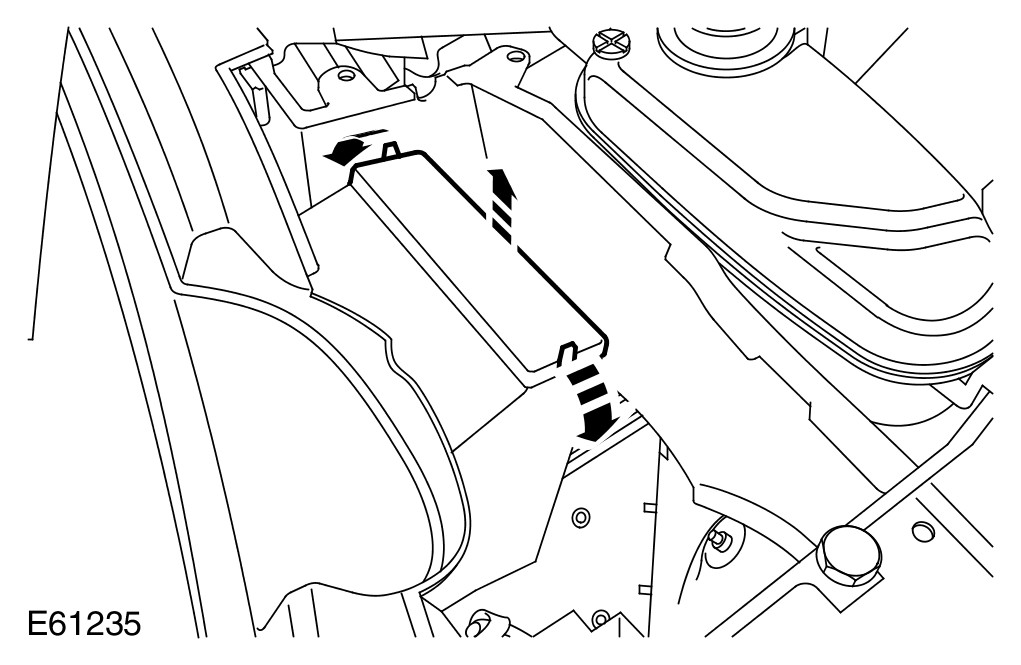

3 Release the pollen filter housing cover.
- Release from the 2 clips.




4
CAUTION: Remove any debris from the filter aperture.

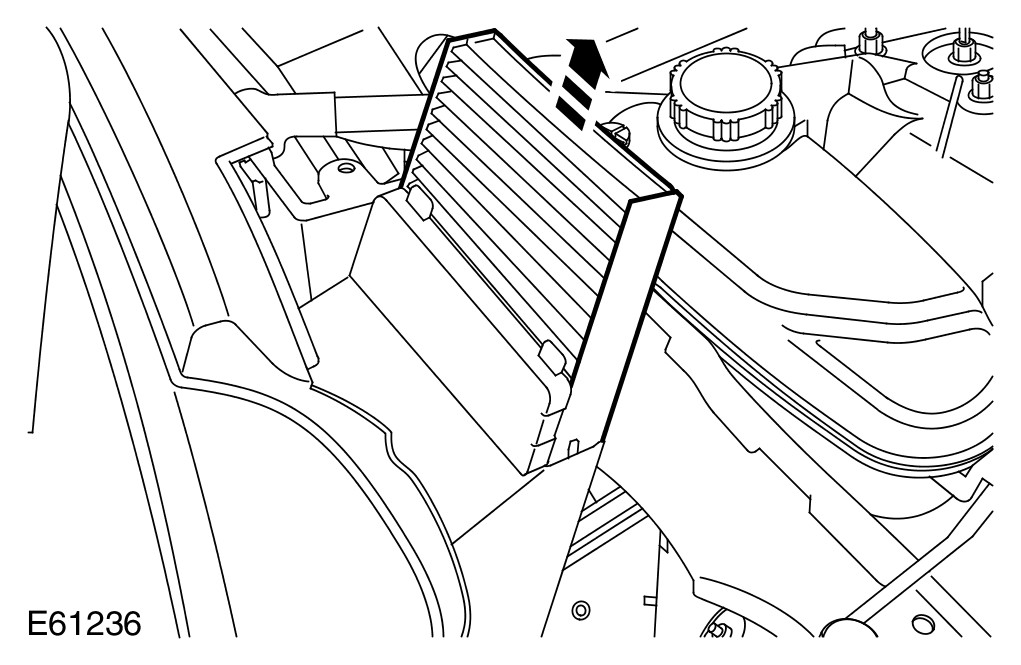

Remove the pollen filter.

Installation
1 Install the pollen filter.
2 Secure the pollen filter housing cover.
3 Install the air intake cover.
- Carefully secure the clips.
4 Close the hood.
