Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
RB001 - RB012
>>

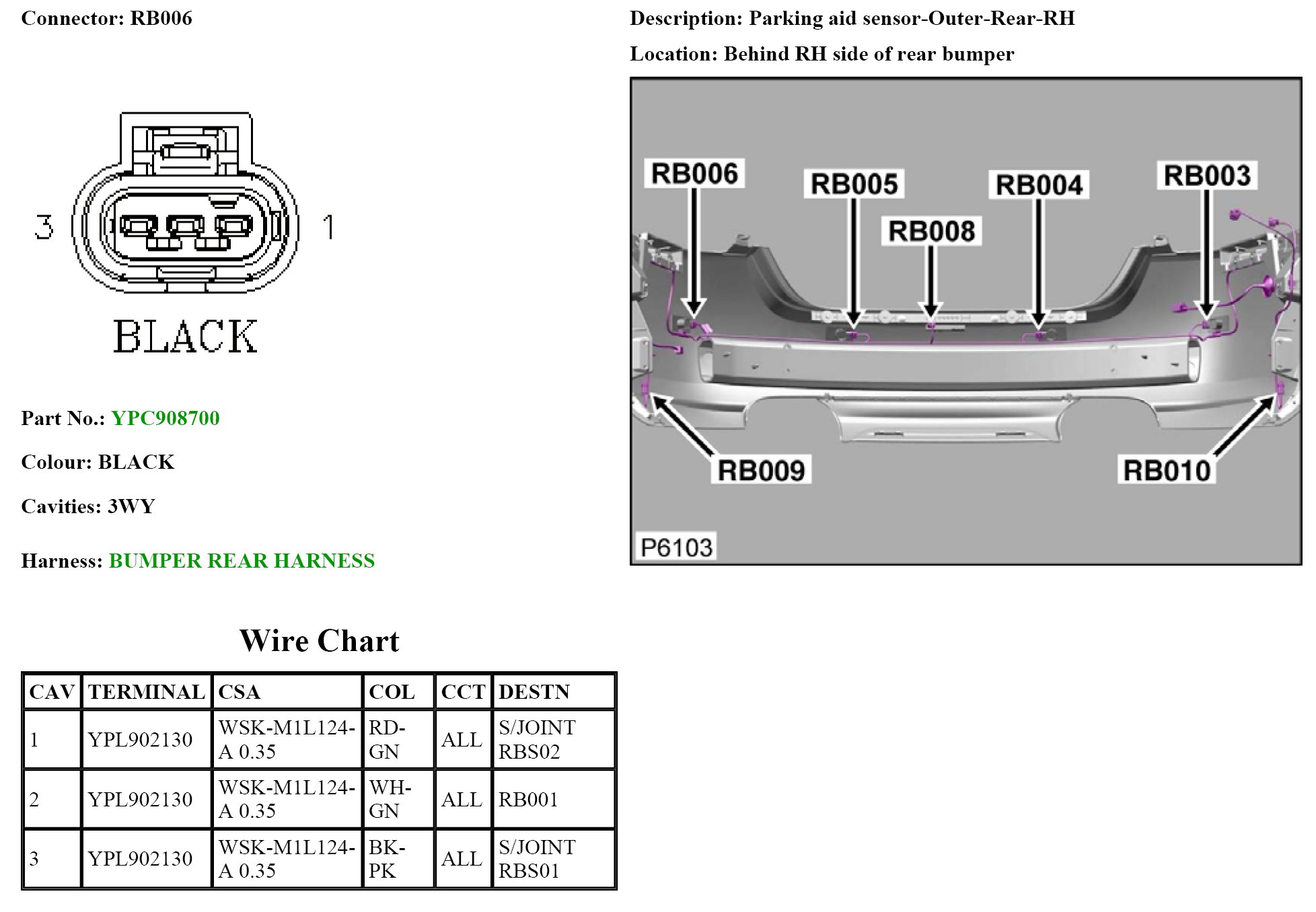

RB006
RB006
RB006
RB006:
