Home
>>
Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
IP001 - IP100
>>
IP003
IP003
IP003

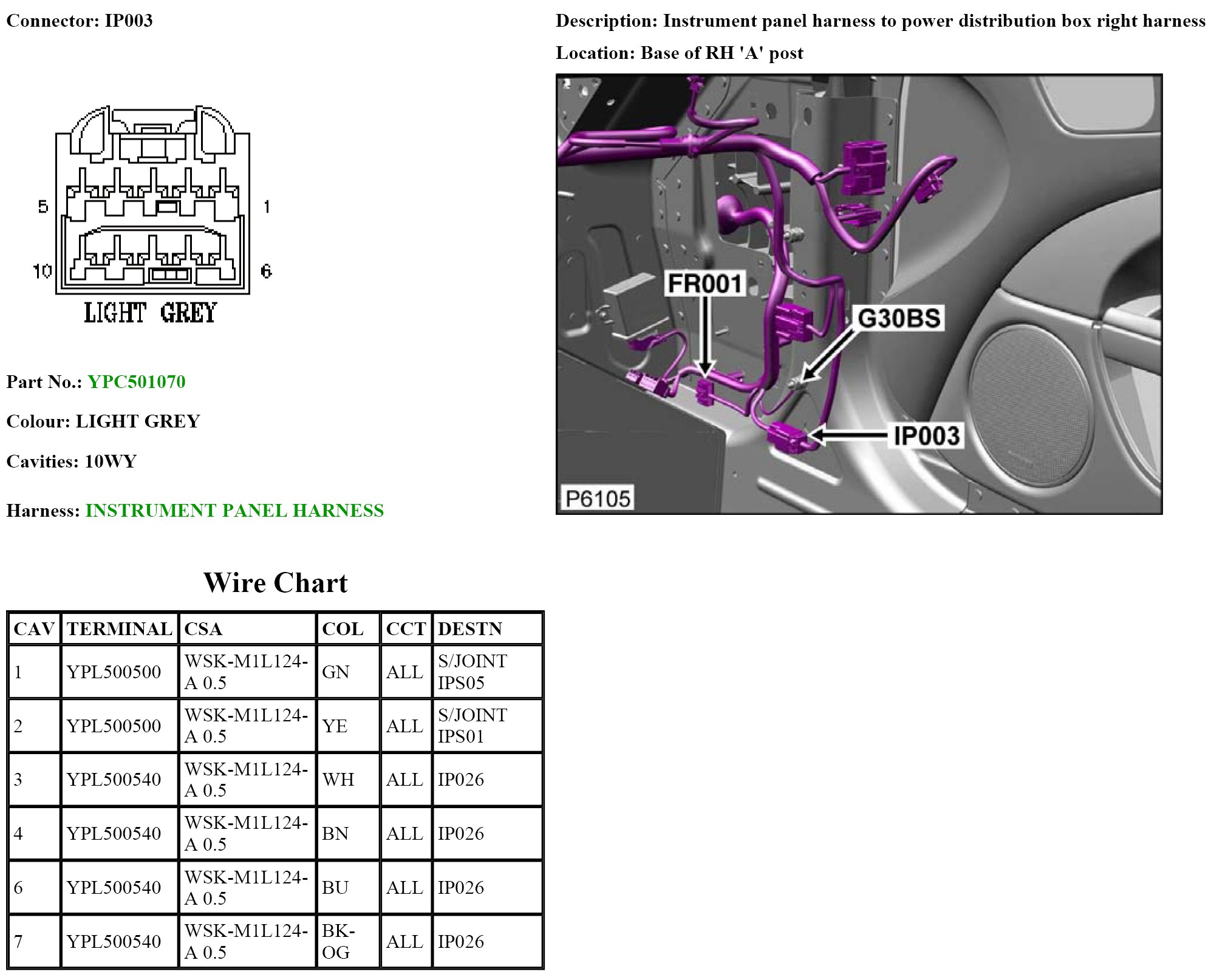

IP003:

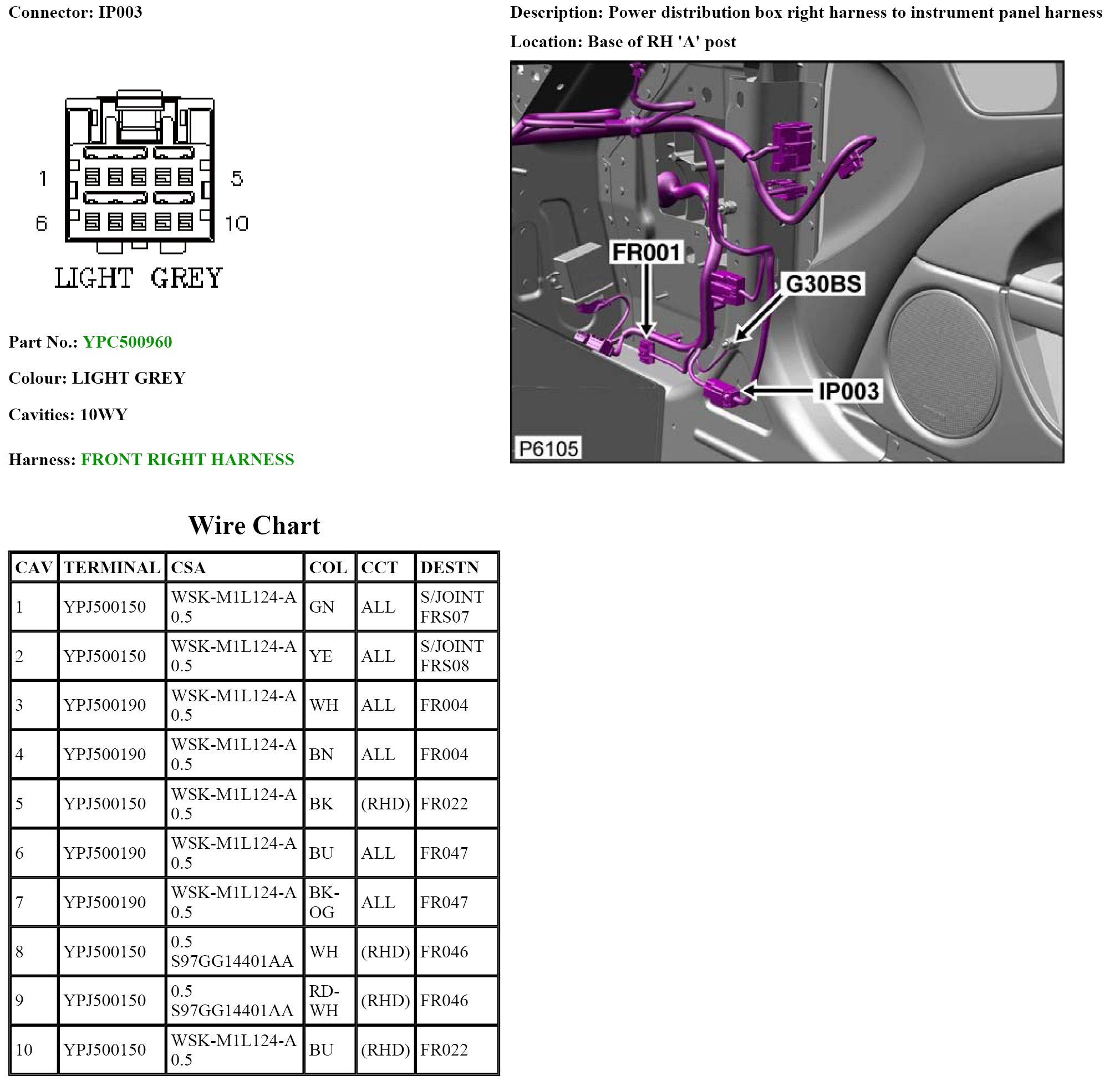

IP003:
