Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G09AL - G09BR
>>

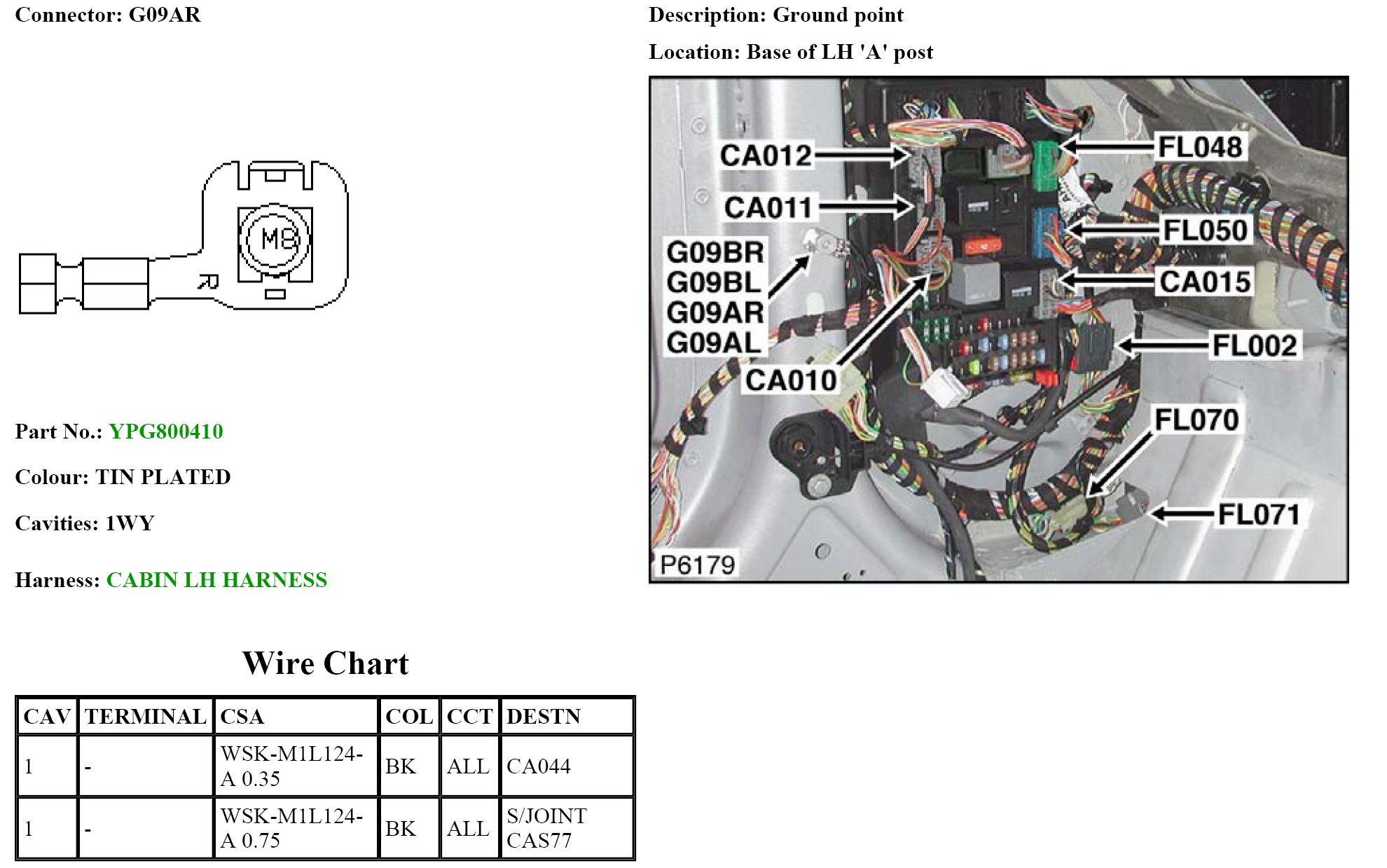

G09AR
G09AR
G09AR
G09AR:
