Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G01AL - G01BR
>>

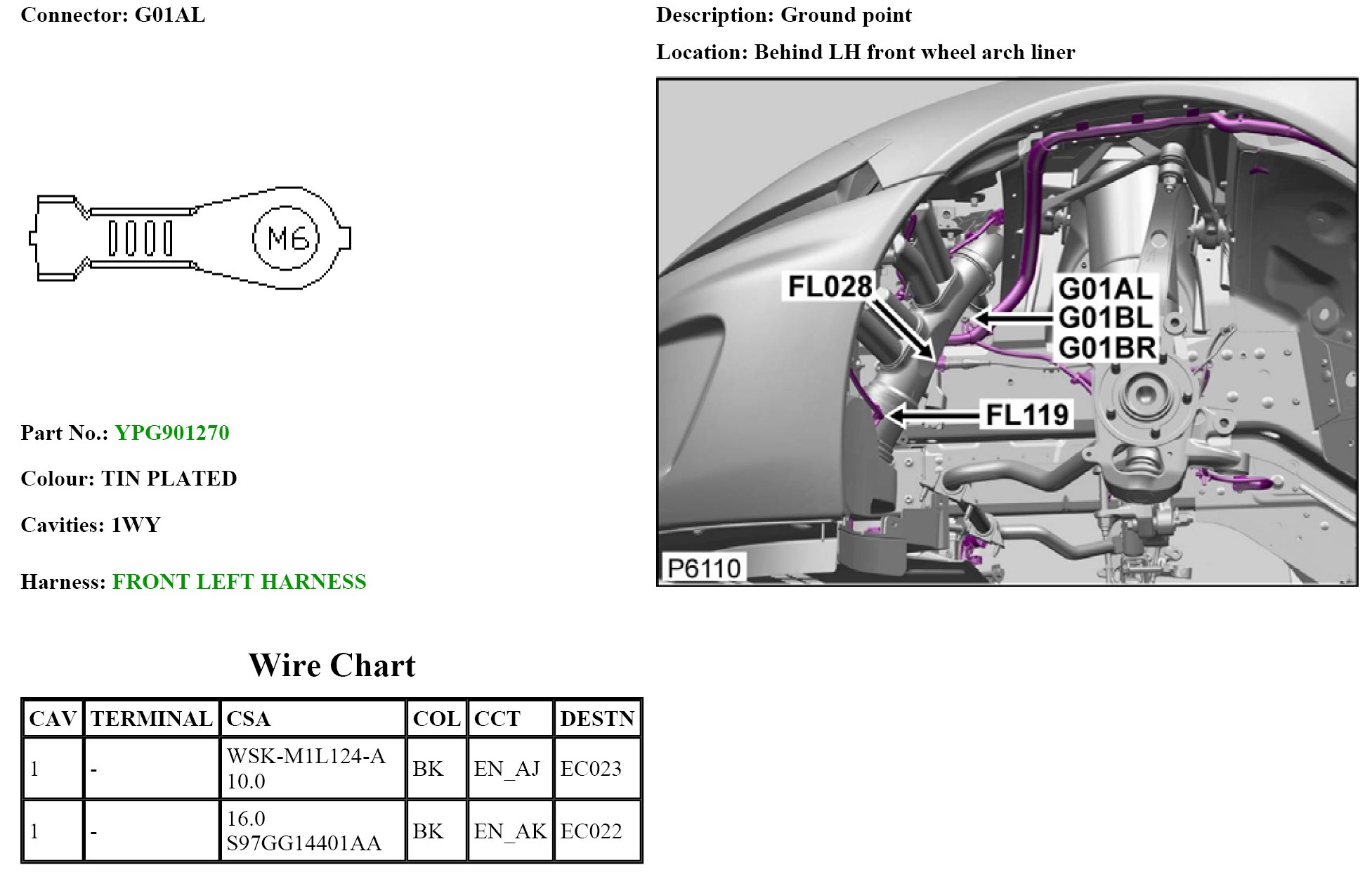

G01AL
G01AL
G01AL
G01AL:
