Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
FL100 - FL120
>>

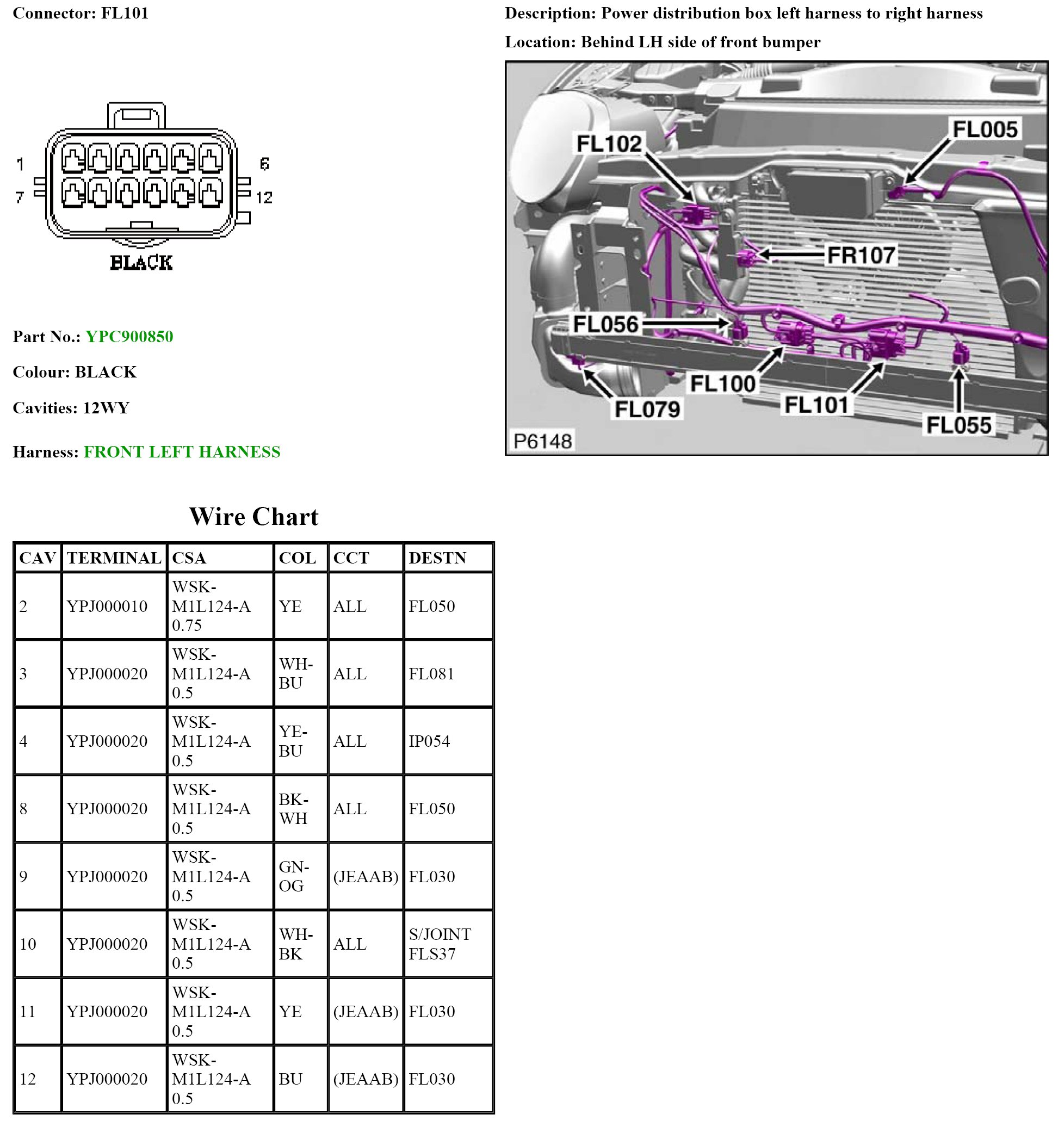

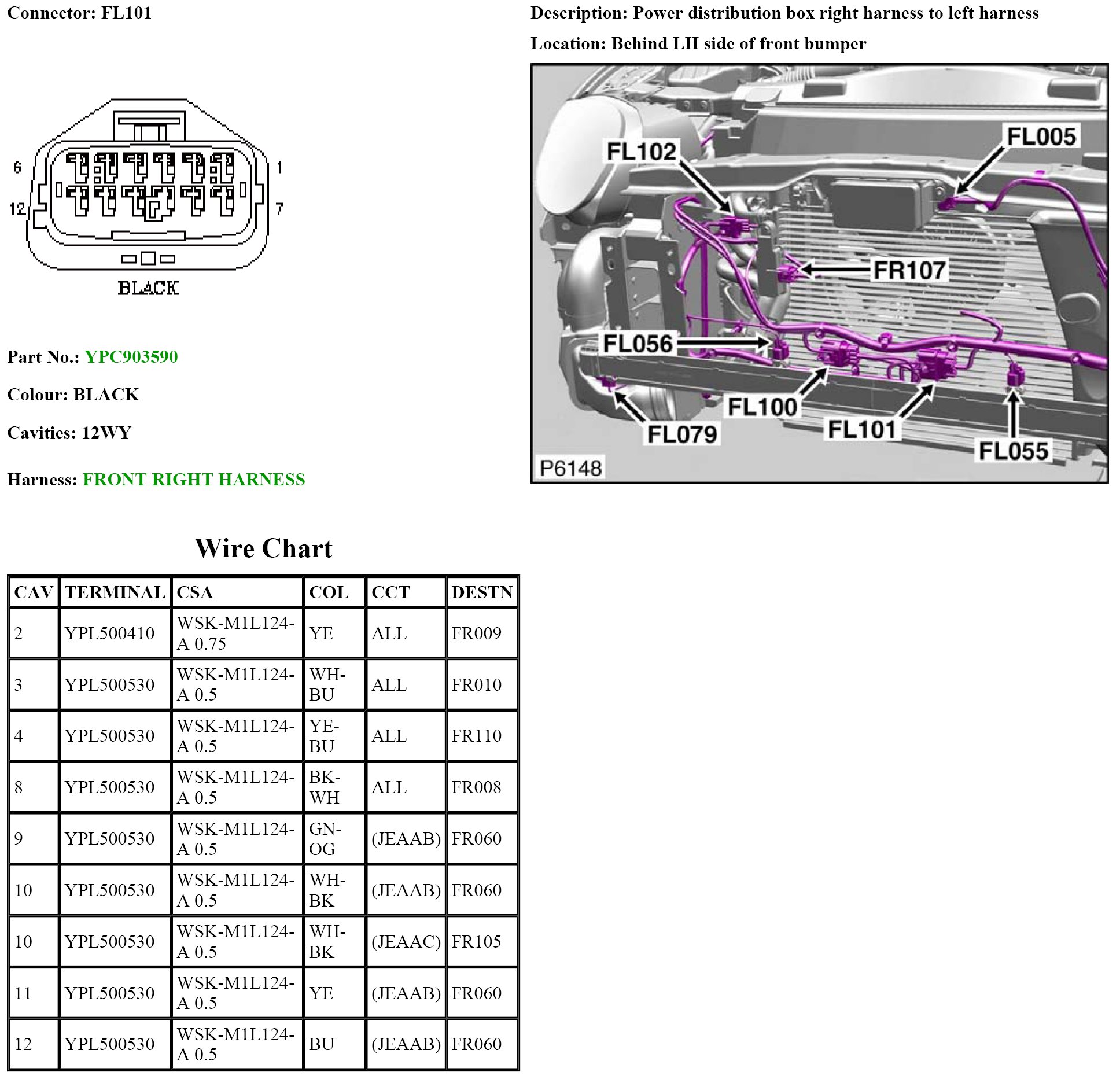

FL101
FL101
FL101
FL101:
FL101:
