Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
FB001 - FB013
>>

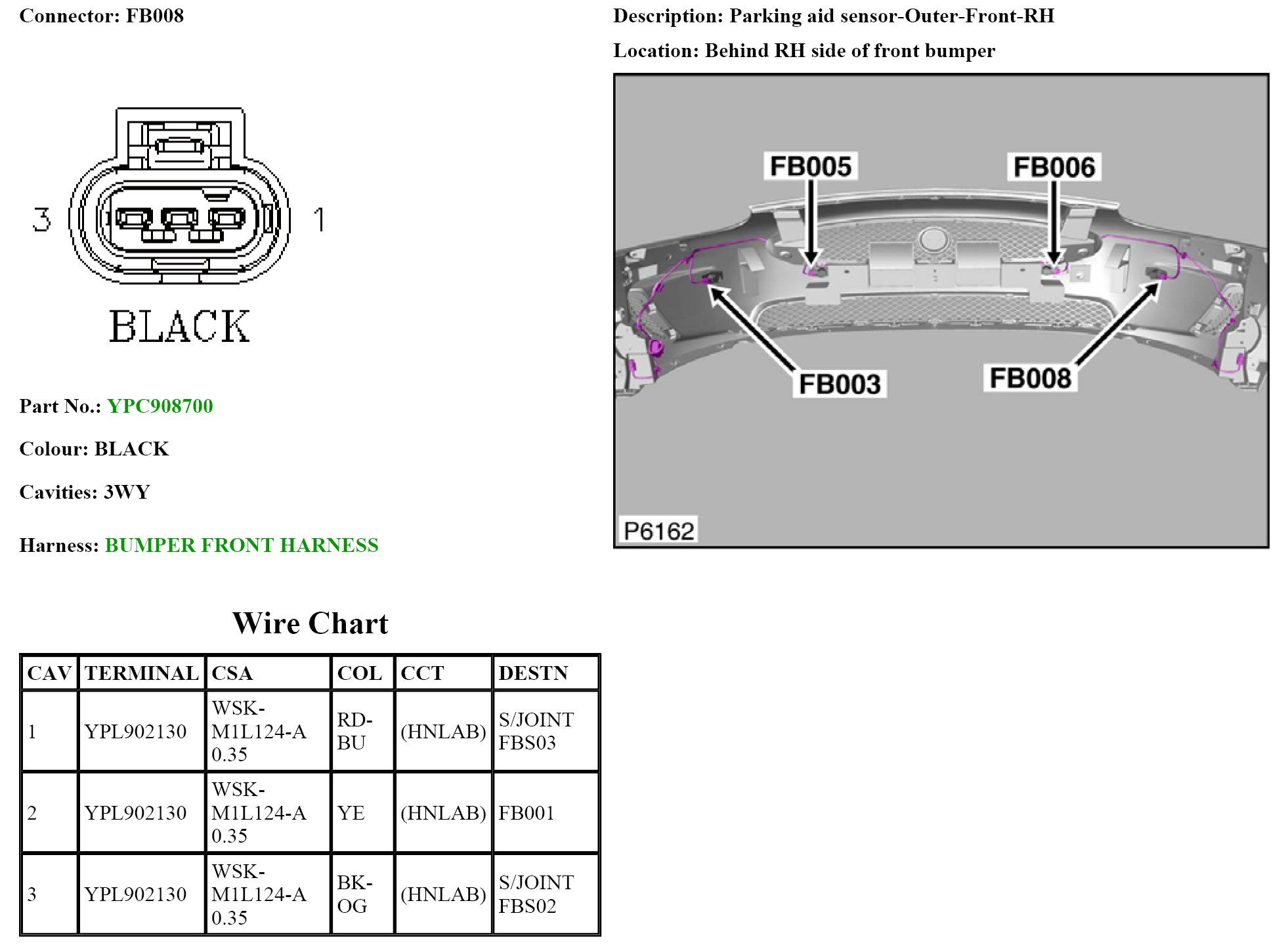

FB008
FB008
FB008
FB008:
