Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
DS001 - DS054
>>

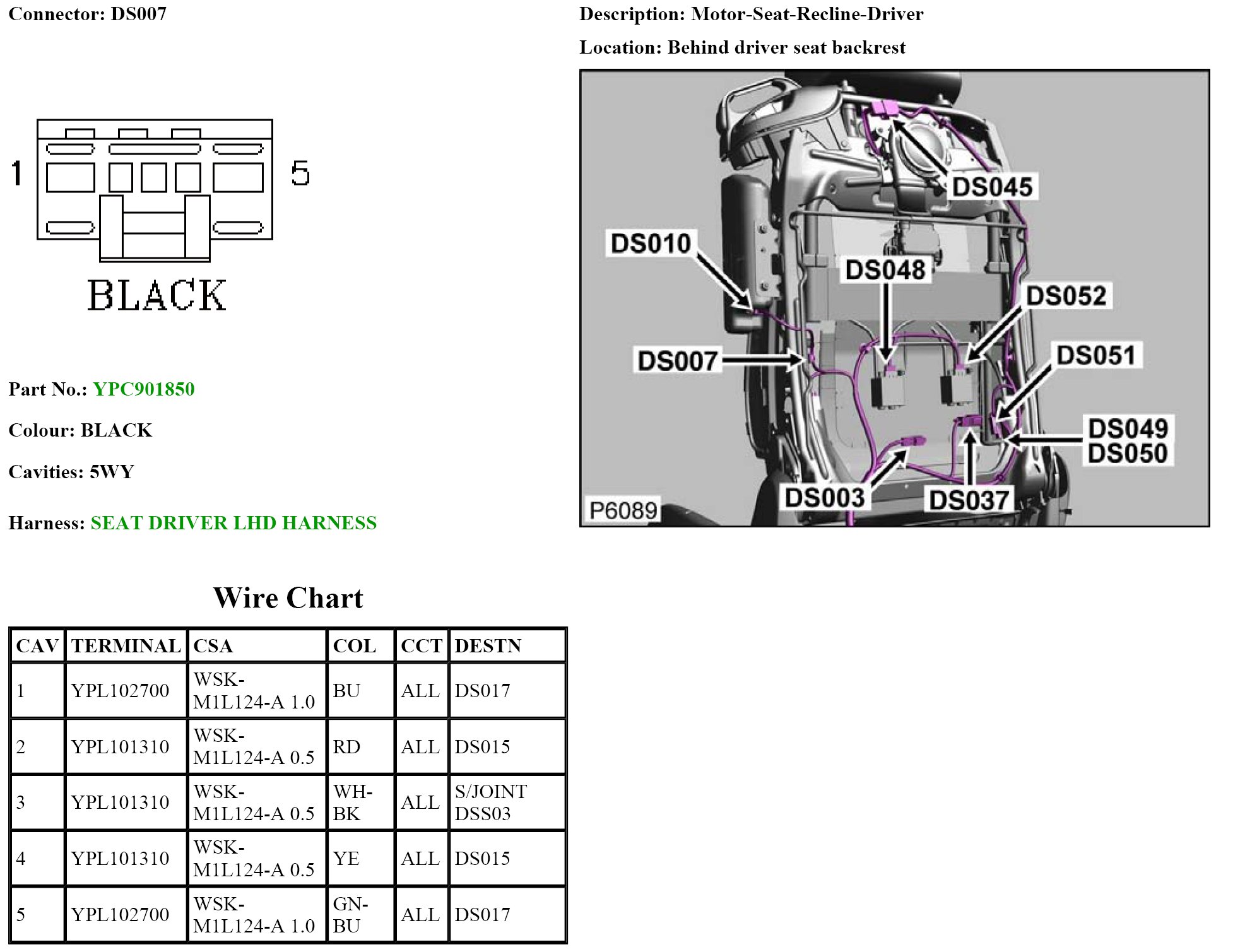

DS007
DS007
DS007
DS007:
