Jaguar
>>
2010
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
CV001 - CV008
>>

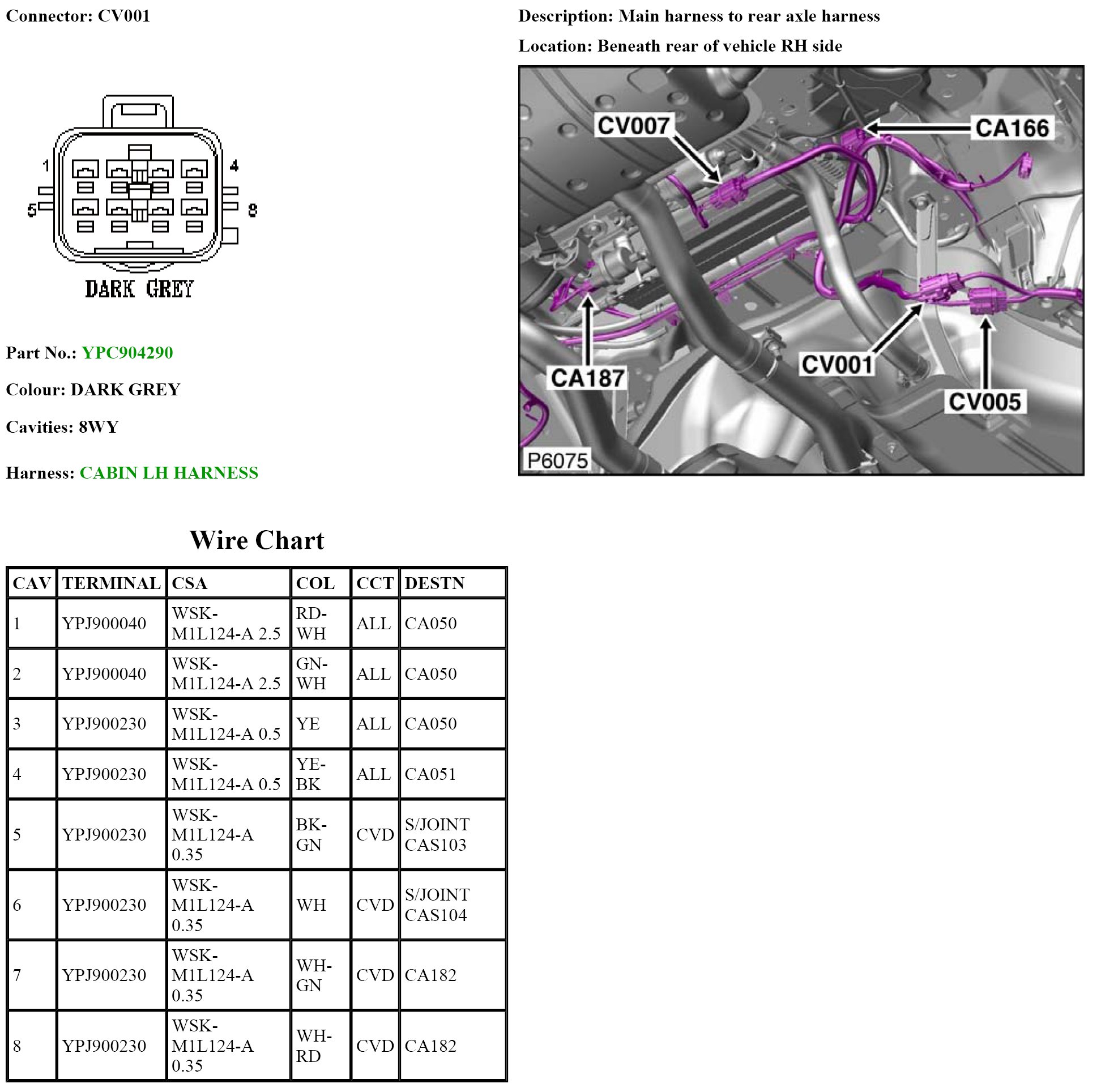

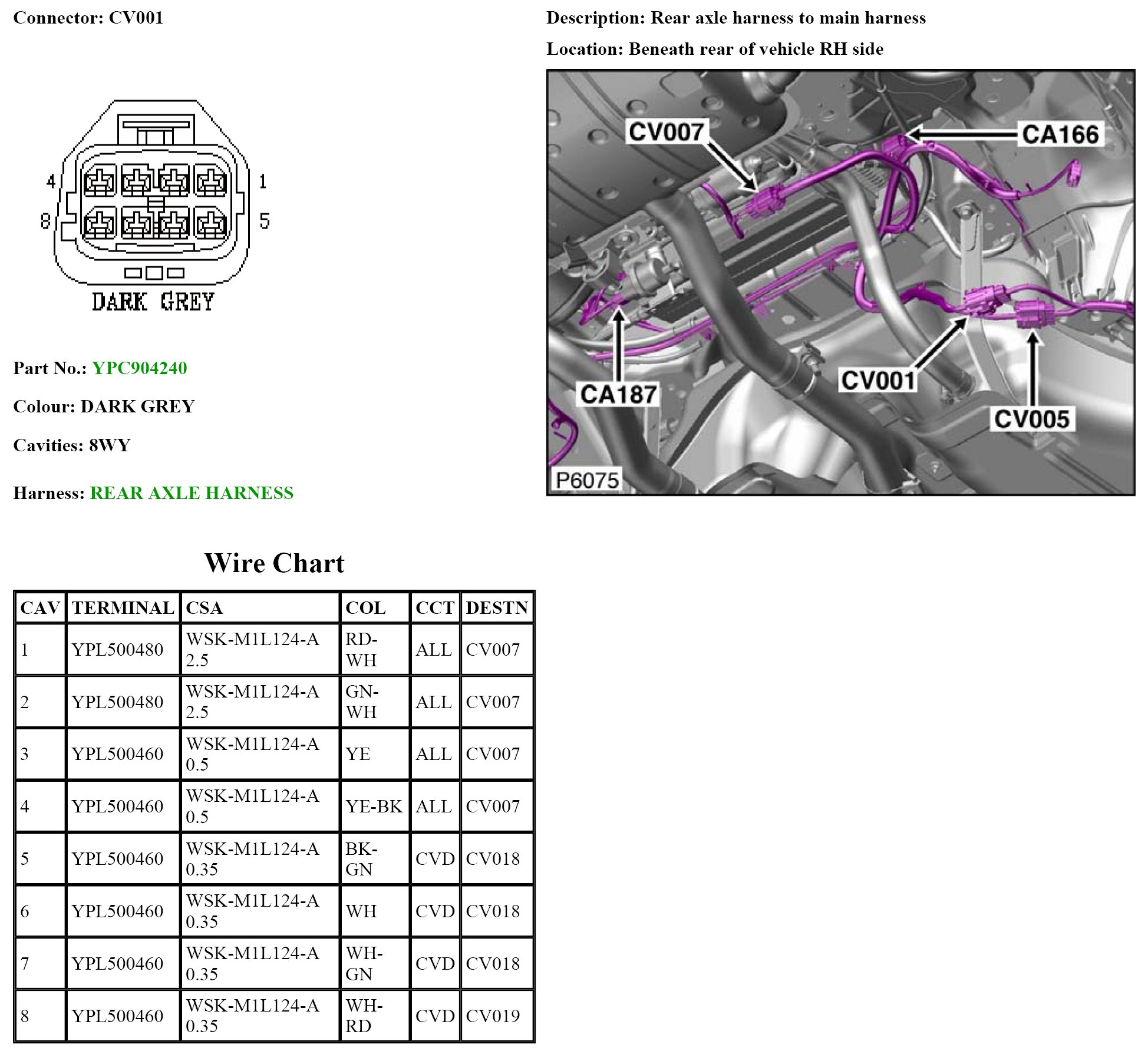

CV001
CV001
CV001
CV001:
CV001:
