XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
BL001 - BL003
>>

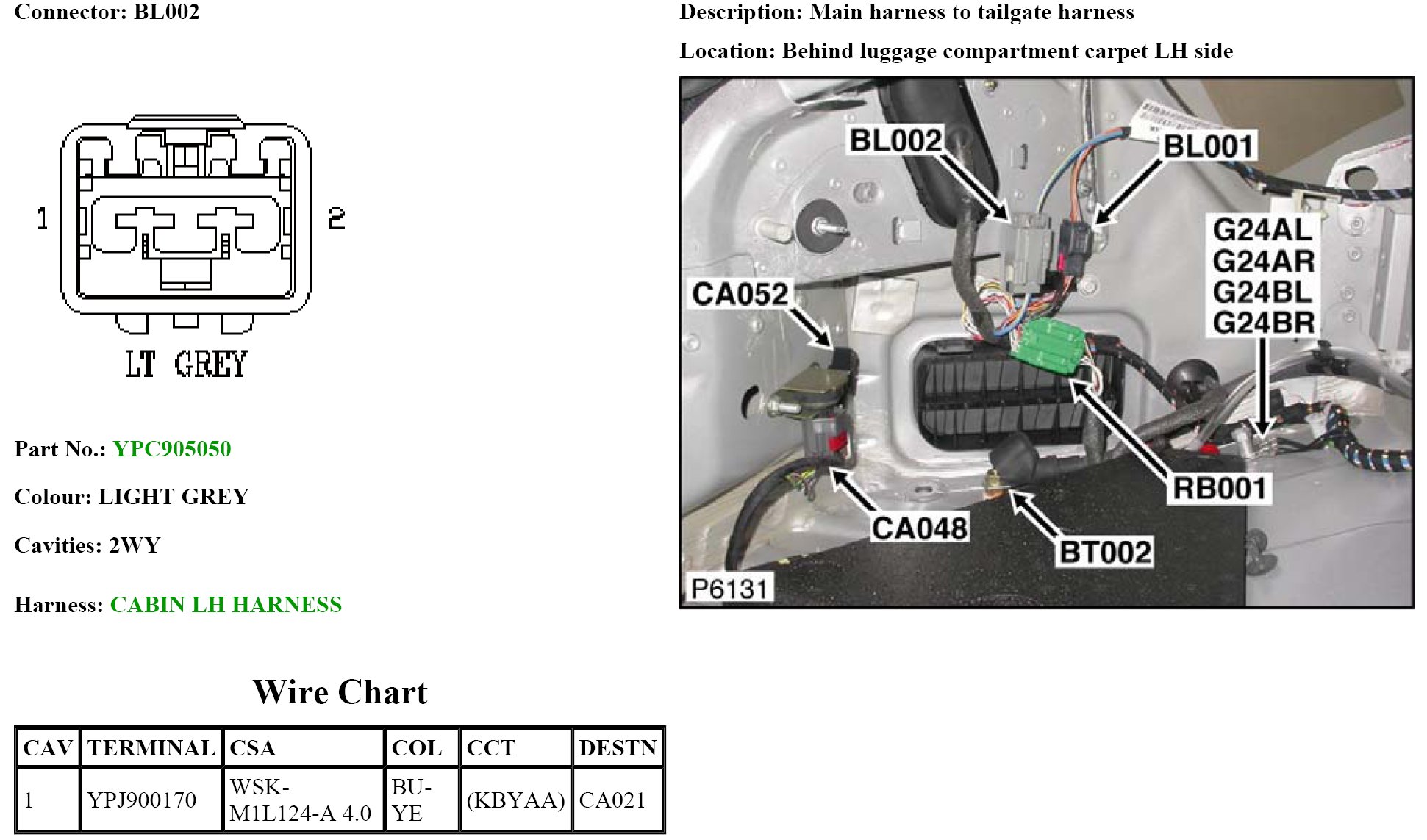

BL002

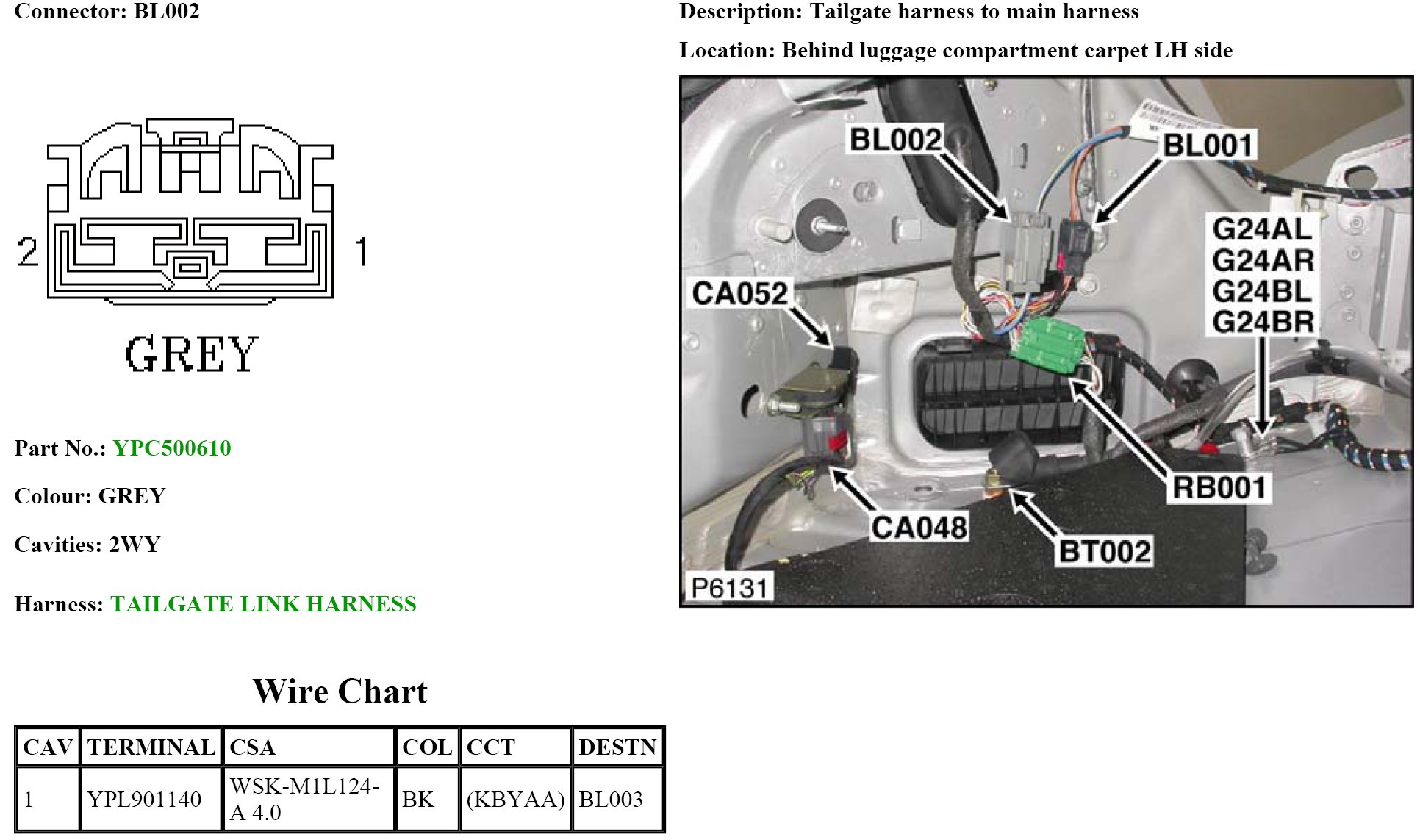

BL002
BL002
BL002:
BL002:
