Front Seat Cushion Heater Mat

Front Seat Cushion Heater Mat

Removal
1 Remove the cover and disconnect the battery ground cable.
2 Make the SRS system safe. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering
3 Remove the front seat. For additional information, refer to Front Seat Removal and Replacement
4 Release the front seat cushion outer trim panel.
- Remove the 2 Torx screws.




5 Remove the front seat cushion outer trim panel.
- Release the 2 clips.
- Disconnect the electrical connector.




6 Remove the front seat hinge covers.
- Remove the 2 Torx screws.
- Remove the hinge cover retainers.




7 Release the front seat backrest cover lower tension straps.




8 Remove the front seat cushion assembly.
- Release and disconnect the 2 electrical connectors.
- Release the Velcro strap.
- Release the 5 clips.

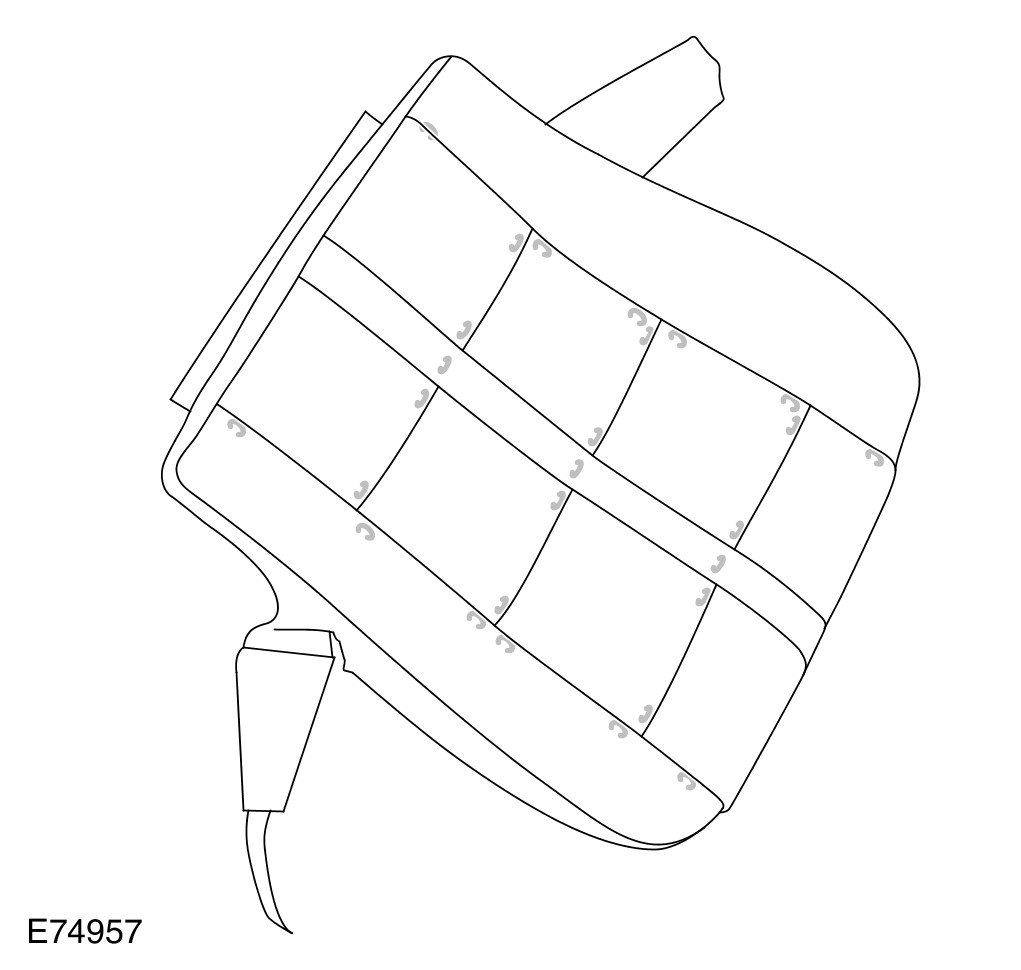

9 Remove the front seat cushion cover.
- Remove the 27 hog rings.





10 Remove the front seat cushion heater mat.
- Carefully release from the seat cushion pad.

Installation
1 Install the front seat cushion heater mat.
- Secure to the seat cushion pad.
2 Install the front seat cushion cover.
3 Secure the front seat cushion assembly.
- Connect and secure the electrical connectors.
- Secure the Velcro strap.
- Attach the clips.
4 Secure the front seat backrest cover lower tension straps.
5 Install the front seat cushion outer trim panel.
- Connect the electrical connector.
- Secure in the clips.
6 Secure the front seat cushion outer trim panel.
- Tighten the Torx screws.
7 Install the front seat hinge covers.
- Attach the hinge cover retainers.
- Tighten the Torx screws.
8 Install the front seat. For additional information, refer to Front Seat Removal and Replacement
9 Connect the battery ground cable and install the cover.
