Steering Column Multifunction Switch RH

Steering Column Multifunction Switch RH

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2 Make the SRS system safe. For additional information, refer to General Service Information General Service Information
3 Remove the instrument panel, lower trim panel. For additional information, refer to Instrument Panel Lower Trim Panel Instrument Panel Lower Trim Panel




4 Remove the steering column lower cowl.
- Remove the 2 screws.
- If installed, disconnect the steering column and foot pedal control switch electrical connector.




5 Remove the steering column upper cowl.
- Remove the 3 screws.

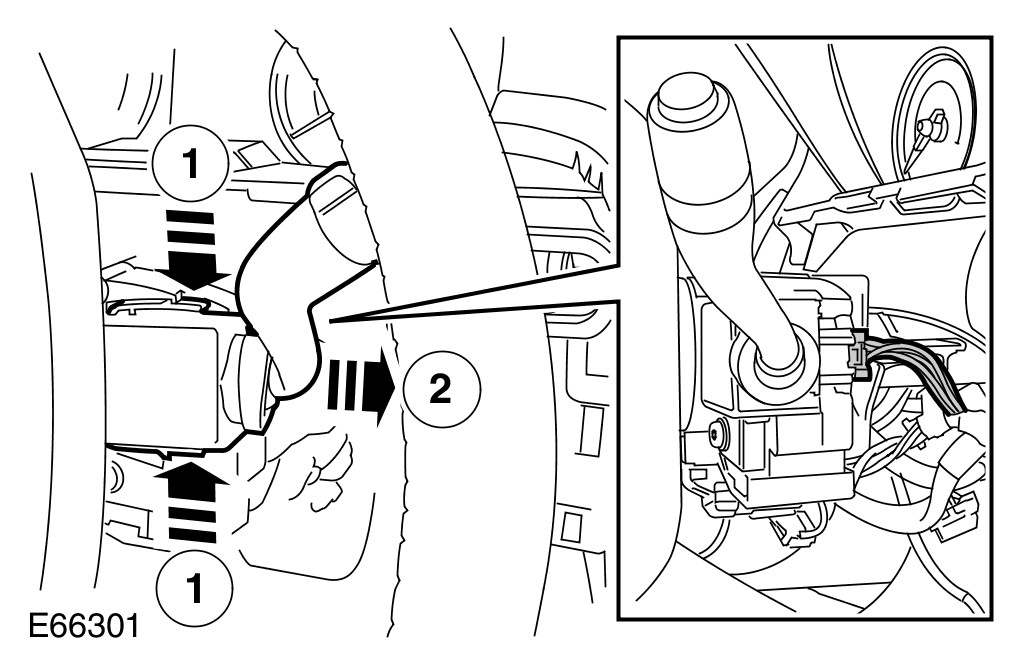

6 Remove the steering column multifunction switch.
- Disconnect the electrical connector.
- Depress the 2 clips.

Installation
1 Install the multifunction switch.
- Align the lugs and secure the clips.
- Connect the electrical connector.
2 Install the steering column upper cowl.
- Install the screws.
3 Install the steering column lower cowl.
- If installed, connect the steering column and foot pedal switch electrical connector.
- Secure in the clips.
- Install the screws.
4 Install the instrument panel, lower trim panel. For additional information, refer to Instrument Panel Lower Trim Panel Instrument Panel Lower Trim Panel
5 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
