Steering Column Multifunction Switch LH

Steering Column Multifunction Switch LH

Removal

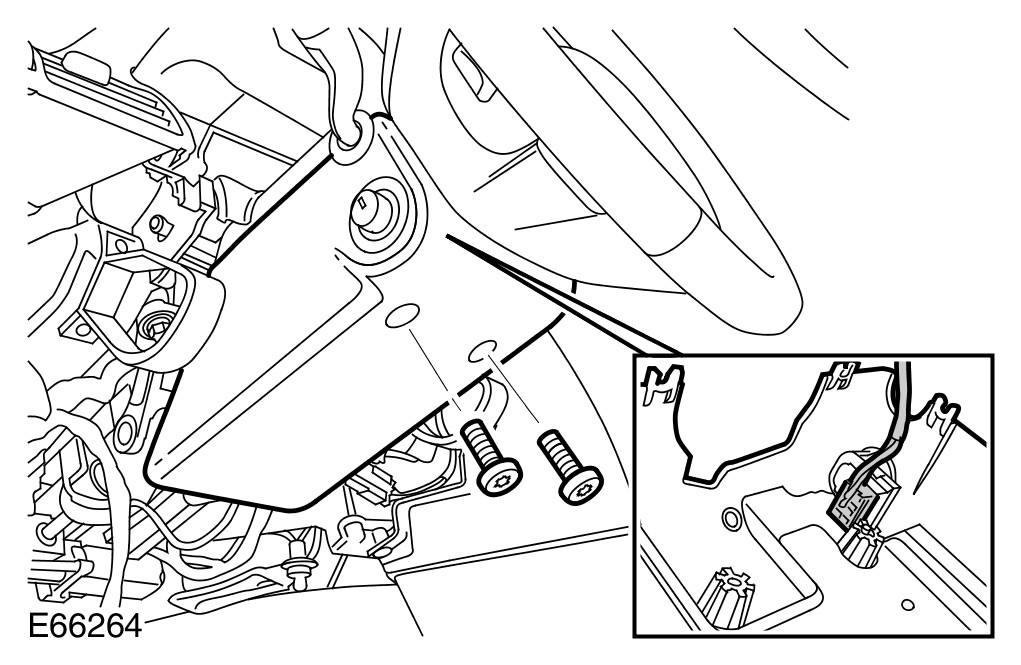

1 Remove the steering column lower cowl.
- Remove the 2 screws.
- If installed, disconnect the steering column and foot pedal control switch electrical connector.

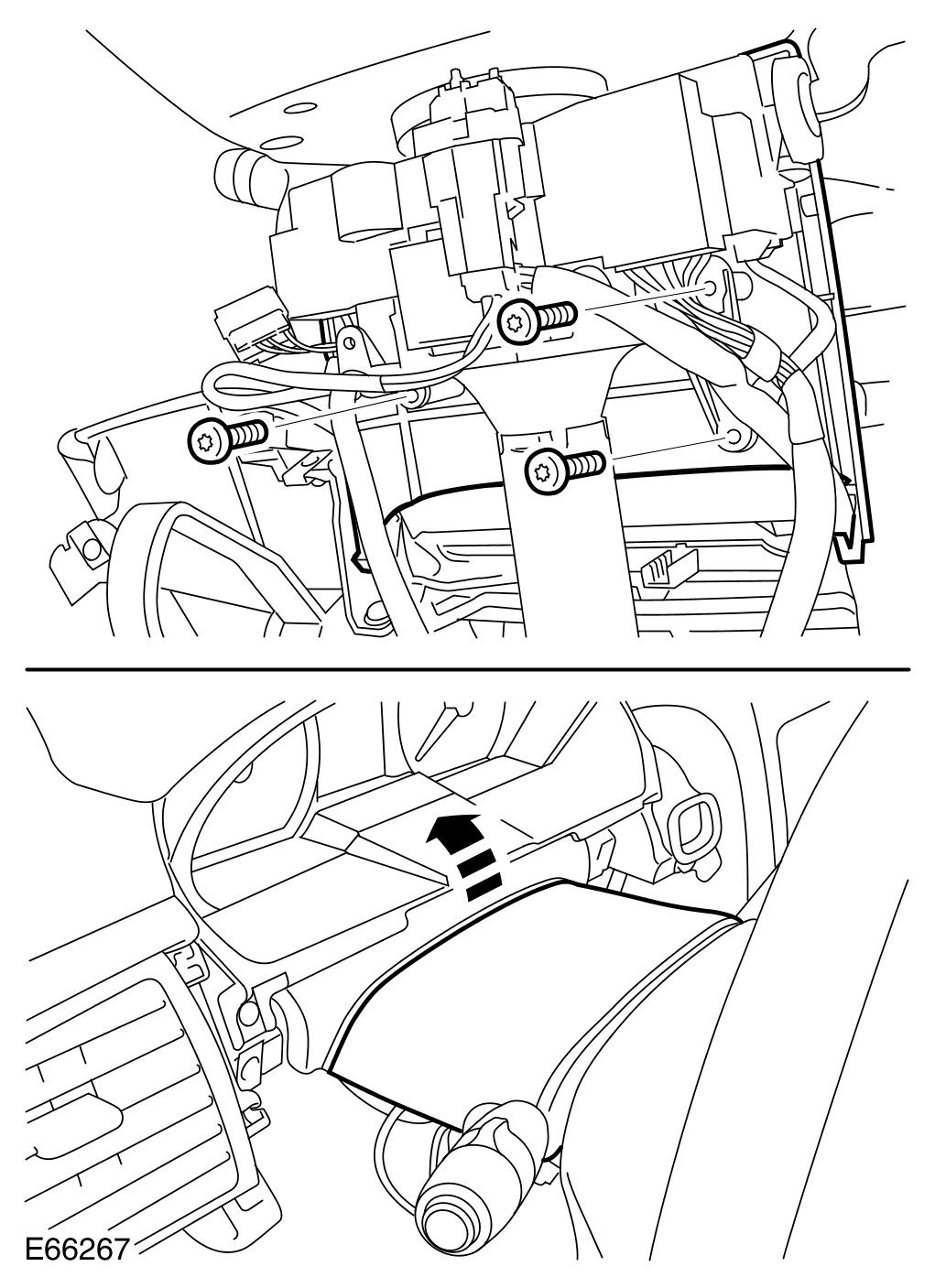

2 Remove the steering column upper cowl.
- Remove the 3 screws.

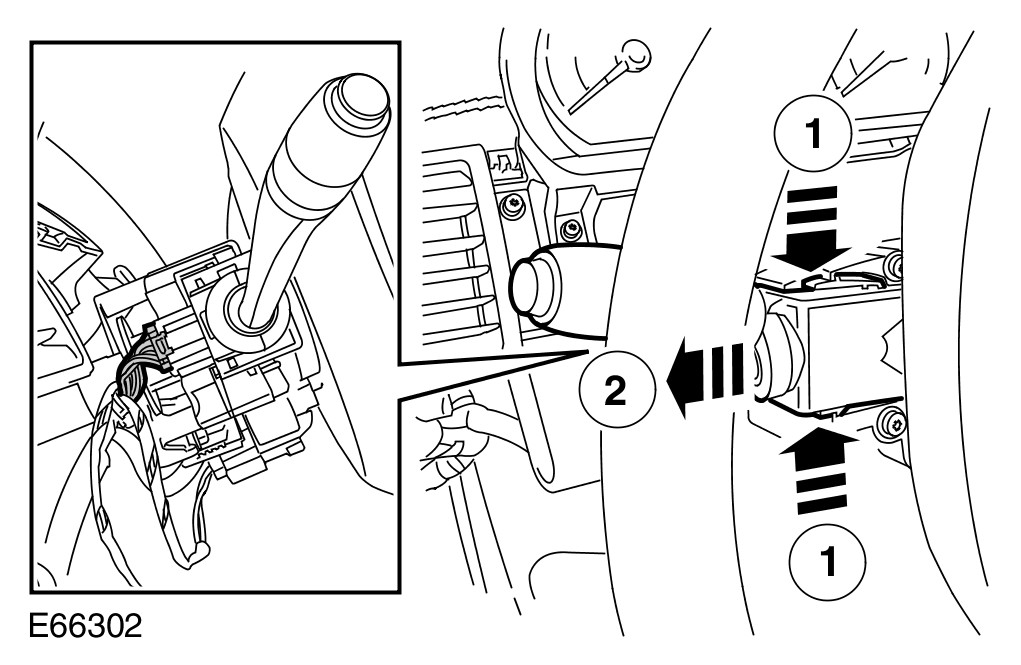

3 Remove the steering column multifunction switch.
- Depress the 2 clips.
- Disconnect the electrical connector.

Installation
1
CAUTION: Make sure the electrical harness is not trapped during the installation.
To install, reverse the removal procedure.
