Cellular Phone Transceiver: Service and Repair

Transceiver Module

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications

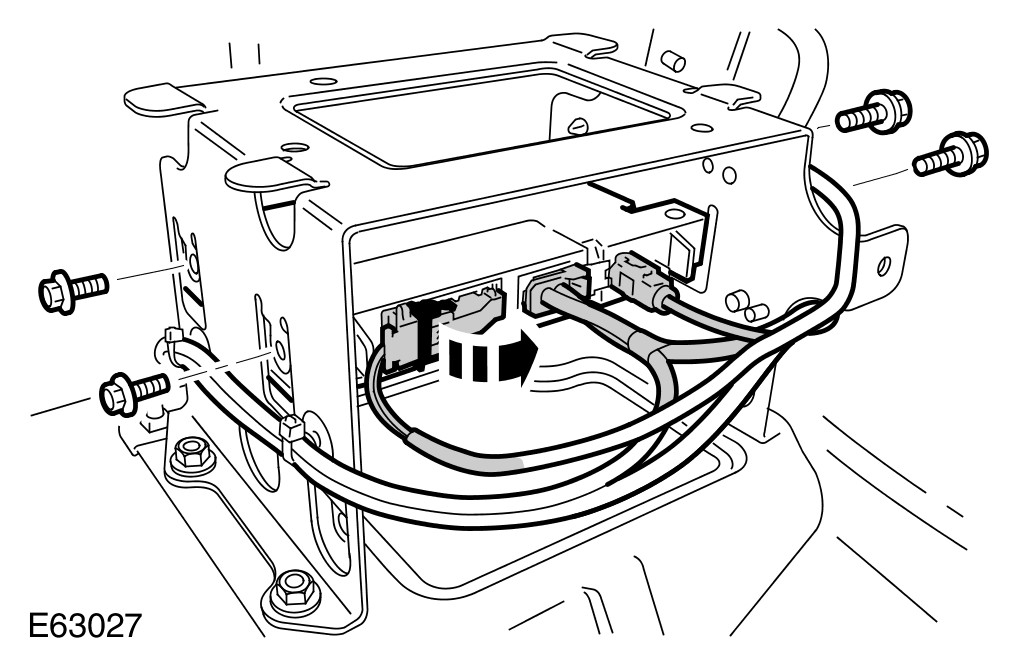

2 Remove the transceiver module.
- Disconnect the 3 electrical connectors.
- Remove the 4 bolts.

Installation
1 Install the transceiver module.
- Tighten the bolts to 10 Nm (7 lb.ft).
- Connect the electrical connectors.
2 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
