Passenger Side Register Duct 82.20.51

Passenger Side Register Duct (82.20.51)

Removal
1. Remove the passenger air bag module.

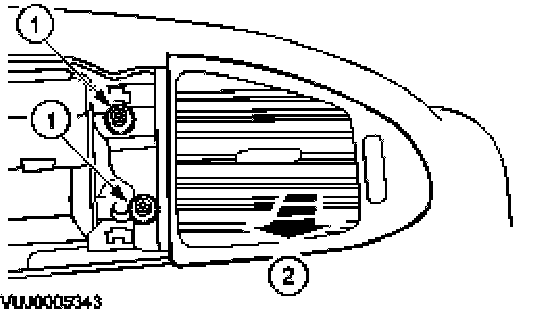

2. Remove the passenger side register.
- Remove the passenger side register retaining screws
- Remove the passenger side register.

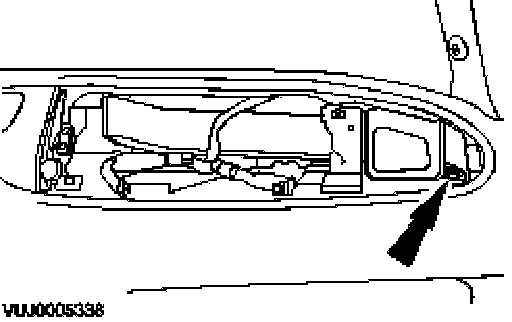

3. Remove the passenger side register duct retaining screw.

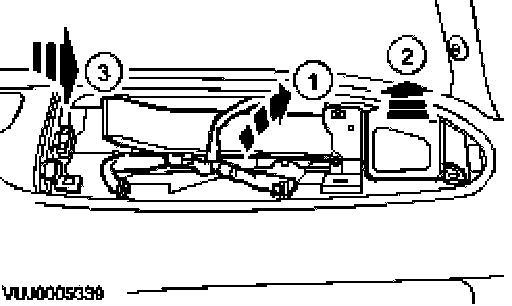

4. Detach passenger side register duct.
- Reposition the passenger air bag module electrical harness.
- Release the passenger side register duct from the instrument panel.
- Detach passenger side register duct.

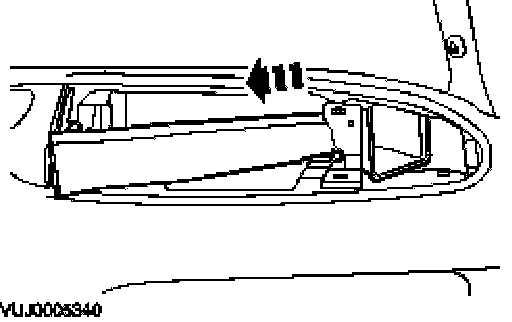

5. Remove the passenger side register duct.







Installation

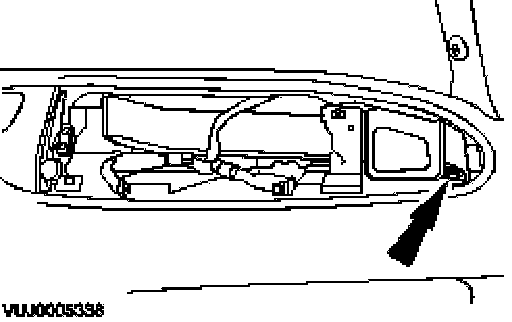

1. To install, reverse the removal procedure.
- Tighten to 3 Nm.
