Differential Axle Housing: Service and Repair

Axle Housing Bushing

Special Service tools

Forcing screw remover and installer 204-274

Bearing kit JAG-061

Receiving Cup and mount plate 205-534

Remover Front Mount Bush 205-533

Installer front mount bush 204-245

Installer Front Mount Bush 204-243

Removal
1. Remove the axle assembly.

2. Using the special tools, remove the axle housing bushing.

Installation

1. The bushing should be installed with the raised molding at 45 degrees to the centre line of the pinion shaft.

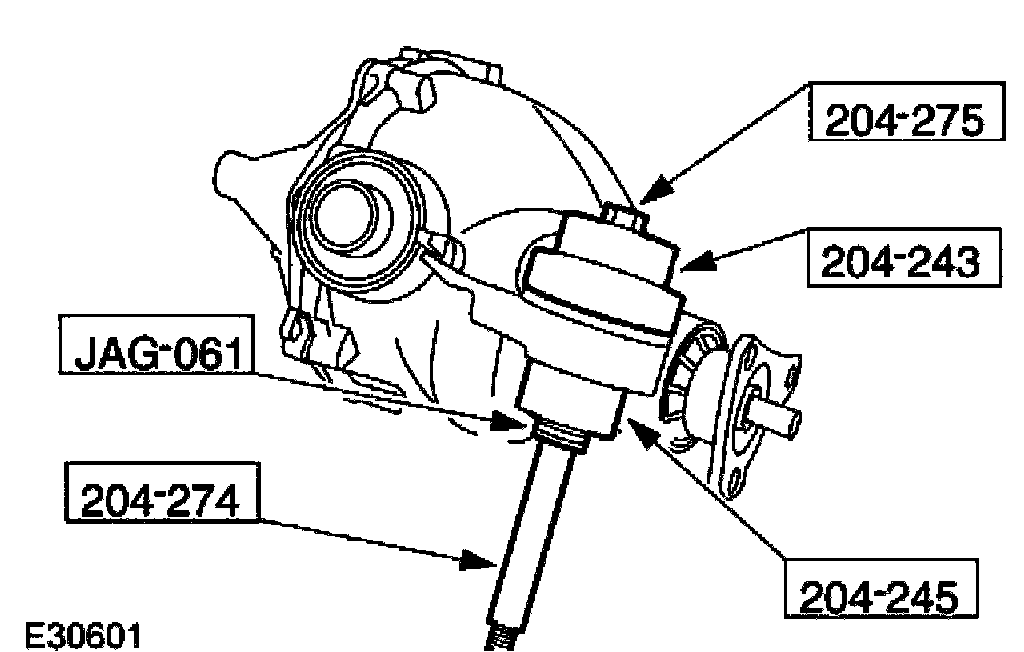

2. Using the special tools, install the axle housing bushing.
3. Install the axle assembly.
