Intake Air Duct: Service and Repair

Air Cleaner Outlet Pipe (19.10.31)

Removal

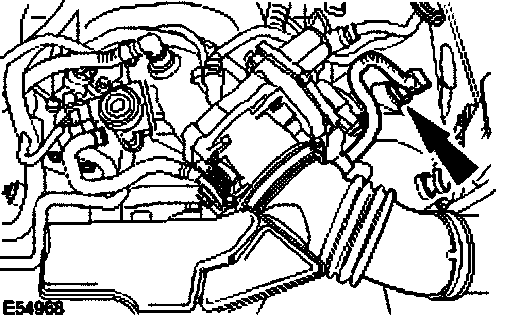

1. Remove the engine cover.

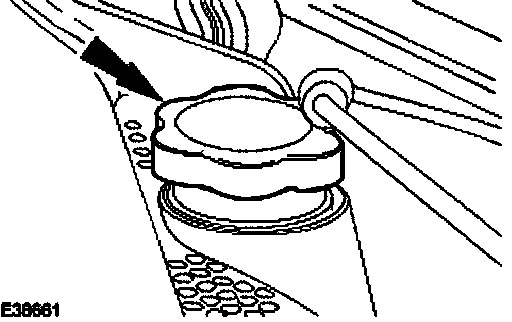

2. Install the oil filler cap.







3. Disconnect the engine breather hose.

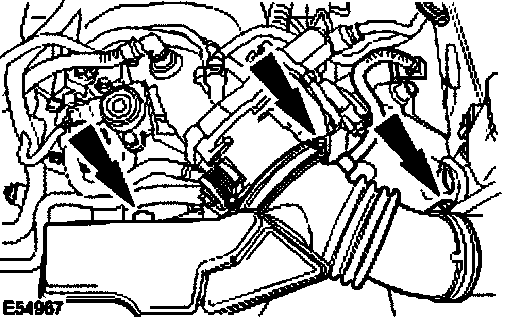

4. Remove the air cleaner outlet pipe.







Installation
1. To install, reverse the removal procedure.
