Front Footwell Duct RH 82.20.92

Front Footwell Duct RH (82.20.92)

Removal

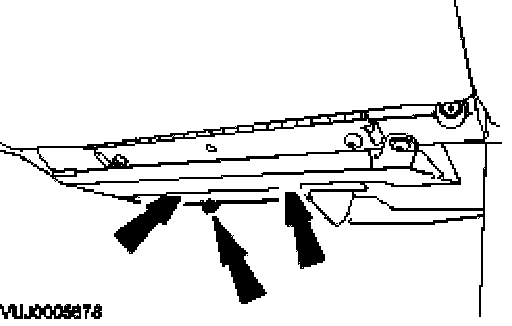

1. Remove the passenger side instrument panel lower trim panel.

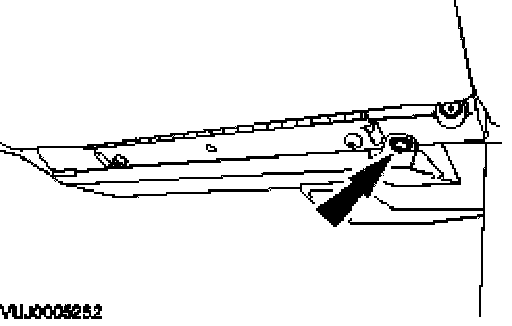

2. Remove the front footwell duct right-hand retaining bolt.

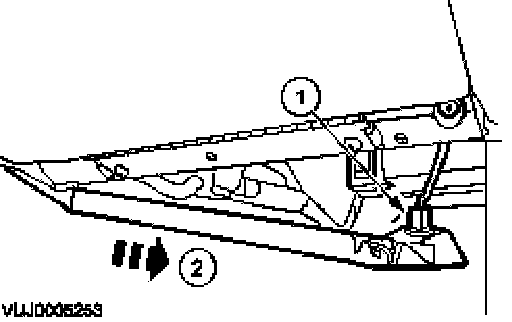

3. Remove the front footwell duct right-hand.
- Detach the footwell lamp from the front footwell duct right-hand.
- Remove the front footwell duct right-hand.







Installation
1. To install, reverse the removal procedure.
- Tighten to 3 Nm.
