Front Footwell Duct LH 82.20.91

Front Footwell Duct LH (82.20.91)

Removal

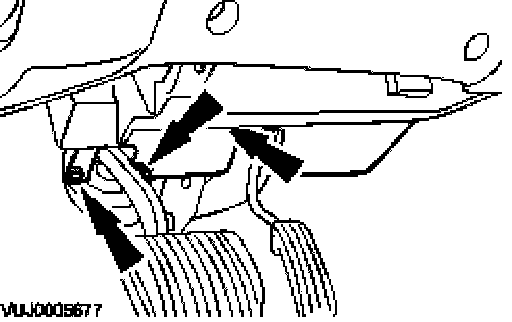

1. Remove the driver side instrument panel lower trim panel.

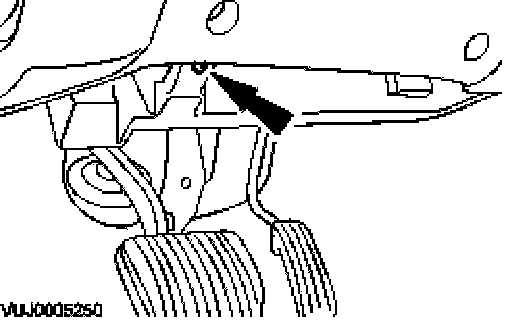

2. Remove the front footwell duct left-hand retaining bolt.

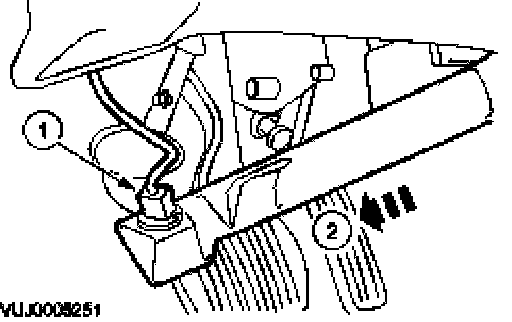

3. Remove the front footwell duct left-hand.
- Detach footwell lamp from the front footwell duct left-hand.
- Remove the front footwell duct left-hand.







Installation
1. To install, reverse the removal procedure.
- Tighten to 3 Nm.
