Thermostat: Service and Repair

Thermostat - 4.2L, Vehicles With: Supercharger (26.45.07)

Removal
1. Remove fuse 38 from the engine compartment fuse box prior to performing any under hood service in the area of the cooling fan.
2. Drain the cooling system.
3. Lower the vehicle.
4. Remove the air cleaner outlet pipe.





5. Detach the thermostat housing hose.

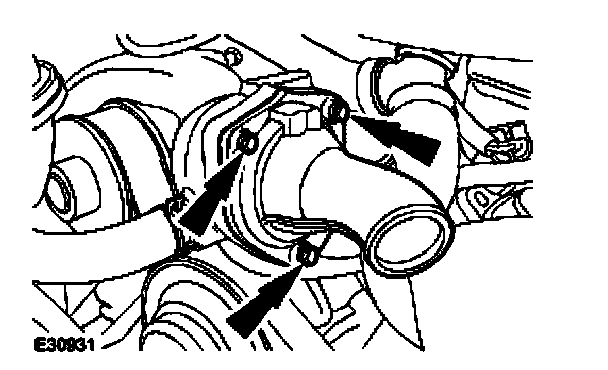

6. Remove the thermostat.

Installation





1. To install, reverse the removal procedure.
^ Tighten to 9 Nm.

2. Fill the cooling system.
