Jaguar
>>
2007
>>
S-Type (X200) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control Module
Cruise Control Module

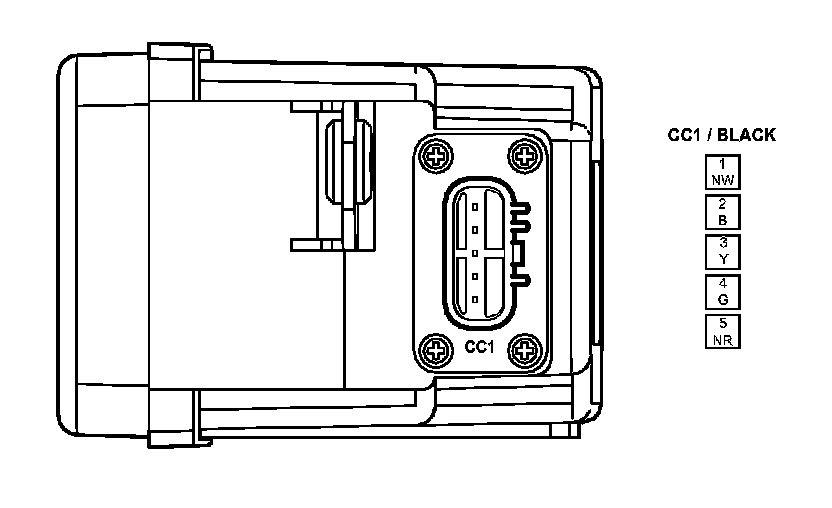

Speed Control Sensor:

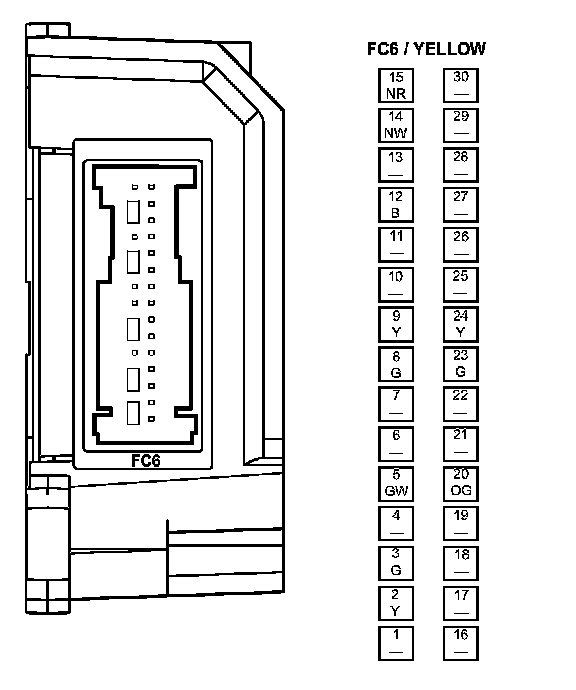

Speed Control Module:
Speed Control Module:
