Transmission Range Switch

Transmission Range Switch

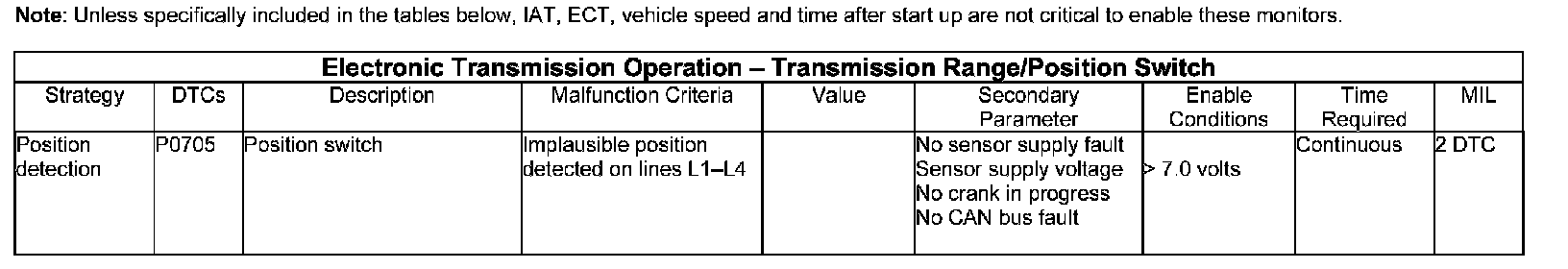

The TCM can identify errors with the position switch located within the transmission. If an unrecognized position code is read by the TCM, a plausibility fault will be logged. (A code is checked between positions).

The position switch outputs a 4-bit code to the TCM, the bits being labeled L1-L4.
