Transmission Fluid Drain and Refill (44.24.02)

Transmission Fluid Drain and Refill (44.24.02)

Special Service Tools



Adaptor 307-452

Drain

1. Raise and support the vehicle.

2. Place a suitable container under the transmission.



3. Using the special tool, remove the transmission fluid fill plug.
- Remove and discard the sealing washer.

CAUTION: If the automatic transmission fluid is very dirty or it contains metallic particles, then along with a new transmission, install a new automatic transmission fluid cooler and lines.

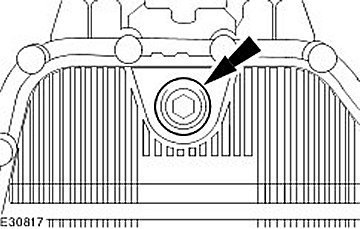

4. Remove the transmission fluid drain plug.
- Remove and discard the sealing washer.

NOTE: Install the new sealing washer.




5. Install the transmission fluid drain plug.
- Tighten to 8 Nm.

Refill

NOTE: Use transmission fluid meeting Jaguar specification.




1. Fill the transmission with 8 liters of transmission fluid through the transmission fluid fill plug hole.

2. Carry out a transmission fluid level check. Refer to Transmission Fluid Level Check
