Shift Solenoid: Service and Repair

Shift Solenoids (SS)

Removal
1. Remove the main control valve body.Valve Body

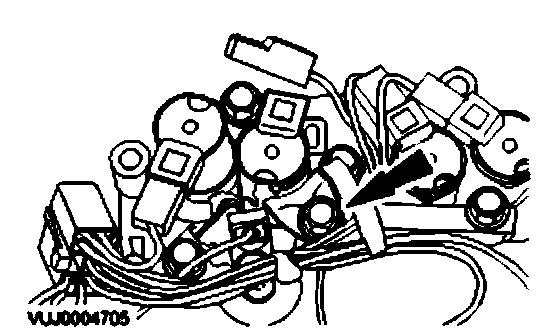

2. Disconnect the electrical connector.





3. Remove the shift solenoid.

Installation





1. NOTE: Lubricate the shift solenoid O-ring seal with automatic transmission fluid WSS-M2C922-A1 or equivalent meeting Jaguar specification.

To install, reverse the removal procedure.





Lubricate the shift solenoid O-ring seal.
2. Tighten to 8 Nm.
3. Install the main control valve body.
