Steering Shaft Coupler: Service and Repair

Steering Column Coupling

Removal

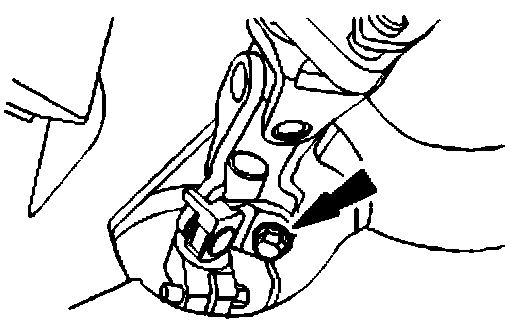

1. Remove and discard the steering column lower retaining bolt.

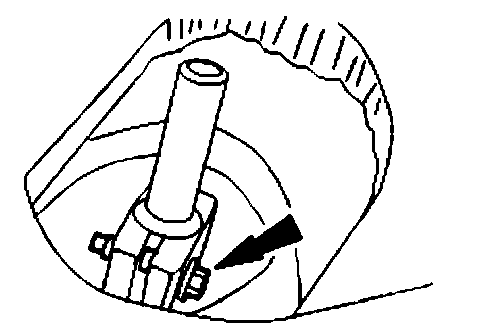

2. Remove the steering column coupling.

Installation





1. To install, reverse the removal procedure.
^ Tighten to 25 Nm.

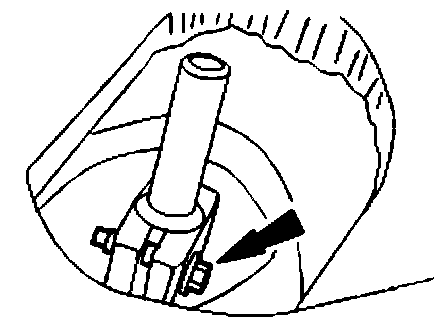

2. Install a new bolt.
^ Tighten to 25 Nm.
