Fuel Pressure Pulsation Damper: Service and Repair

Fuel Pulse Damper

Removal
1. Remove the throttle body.

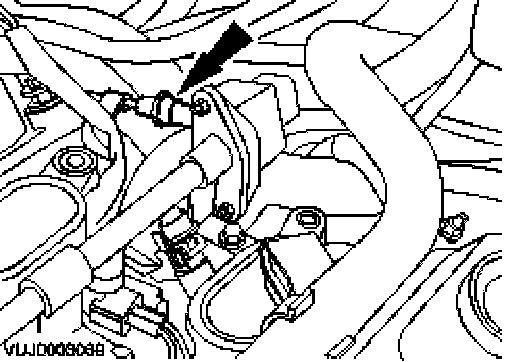

2. Disconnect the electrical connector.

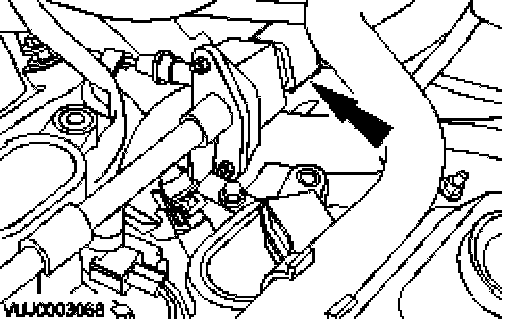

3. Detach the fuel pressure sensor vacuum line.

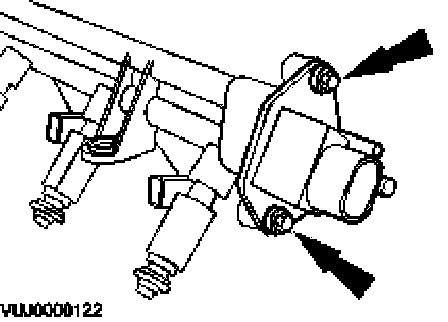

4. Remove the fuel pressure sensor.
- Remove and discard the gasket.

Installation







1. To install, reverse the removal procedure.
- Tighten to 10 Nm.

NOTE: Install a new gasket.
