Brake Lamp: Service and Repair

86.41.46

Rear Lamp Assembly

Removal







1. Detach and reposition the rear quarter trim panel.







2. Disconnect the rear lamp assembly electrical connector.

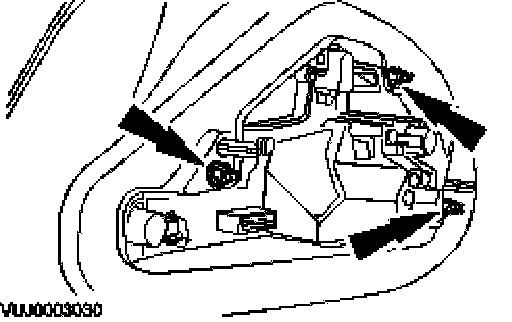

3. Remove the rear lamp assembly retaining nuts.

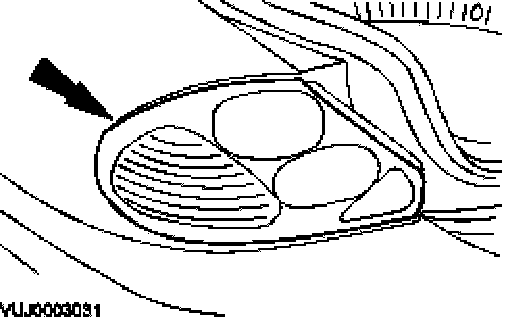

4. Remove the rear lamp assembly.

Installation
1. To install, reverse the removal procedure.
