Driver Side Register

Driver Side Register

Removal

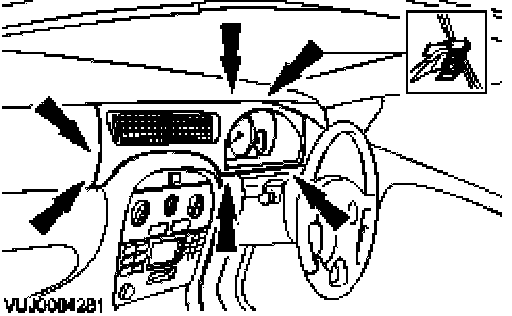

1. Remove the instrument panel veneer trim.







2. Remove the instrument panel surround.
- Remove the instrument panel surround retaining screws.

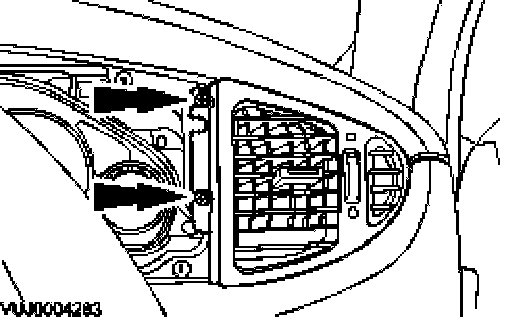

3. Remove the driver side register.
- Remove the driver side register retaining screws.

Installation
1. To install, reverse the removal procedure.
