Fig 15.2
Fig 15.2

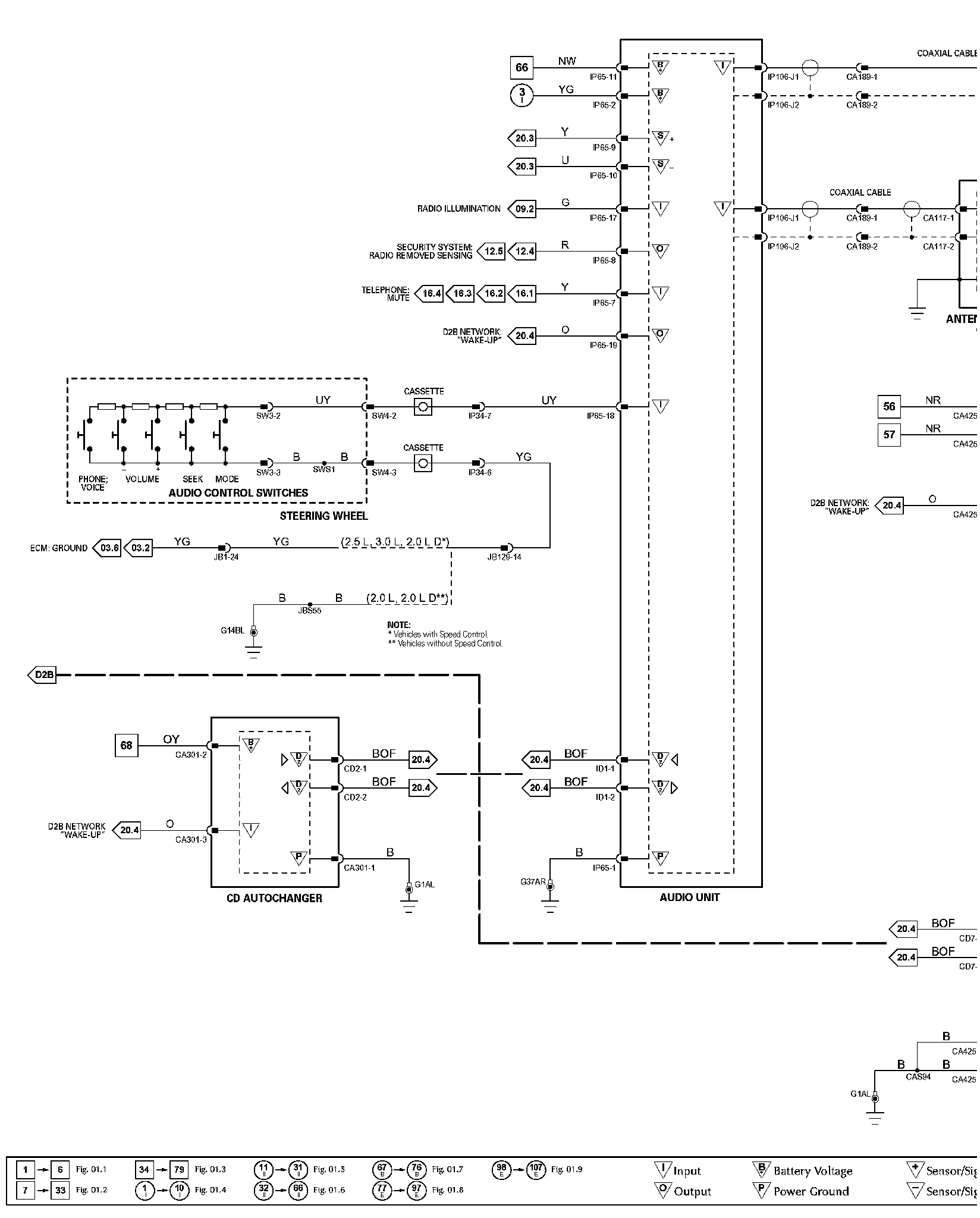

�]q Diagram Figure 15.2:

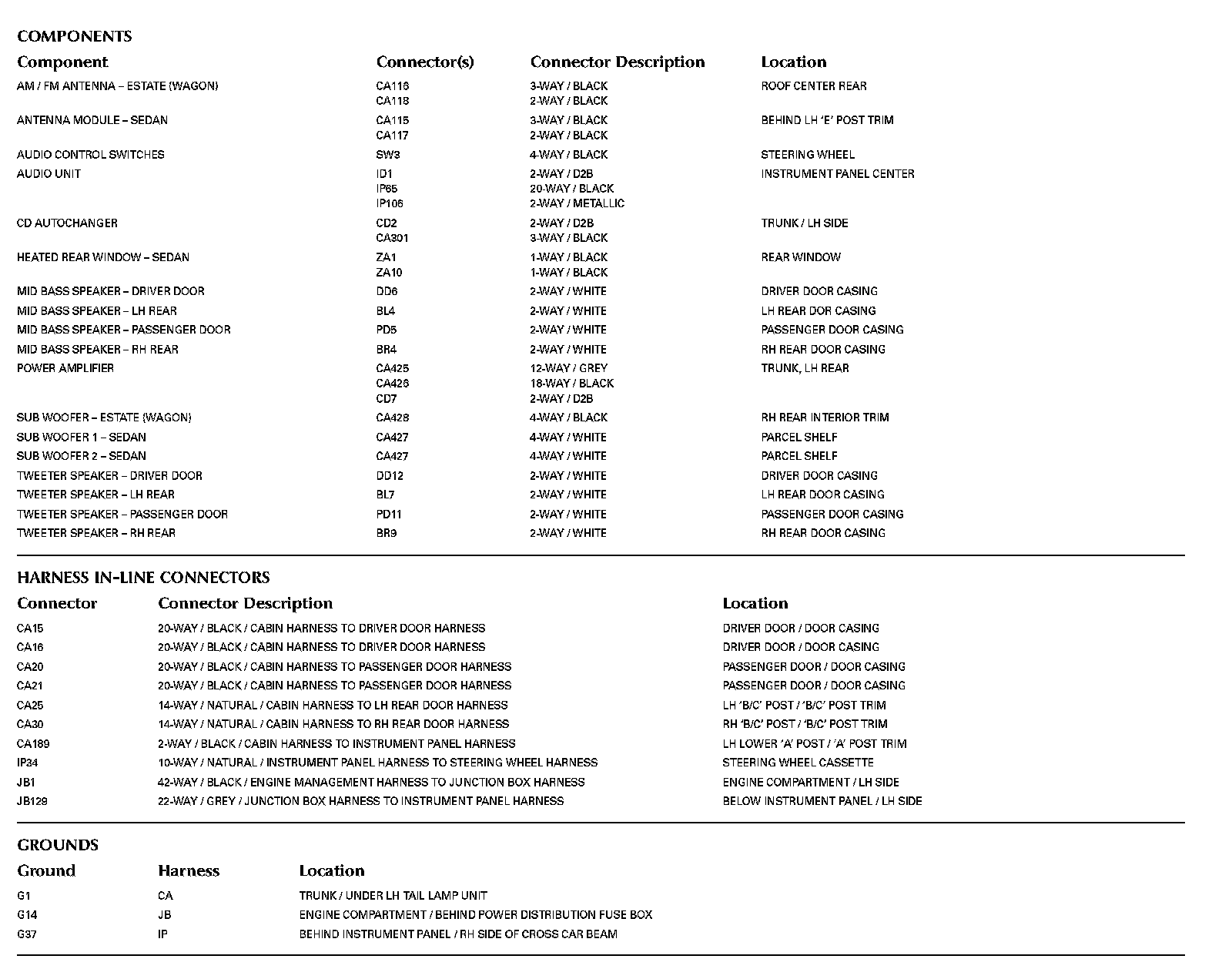

Diagram Data Sheet 15.2 (Part 1):

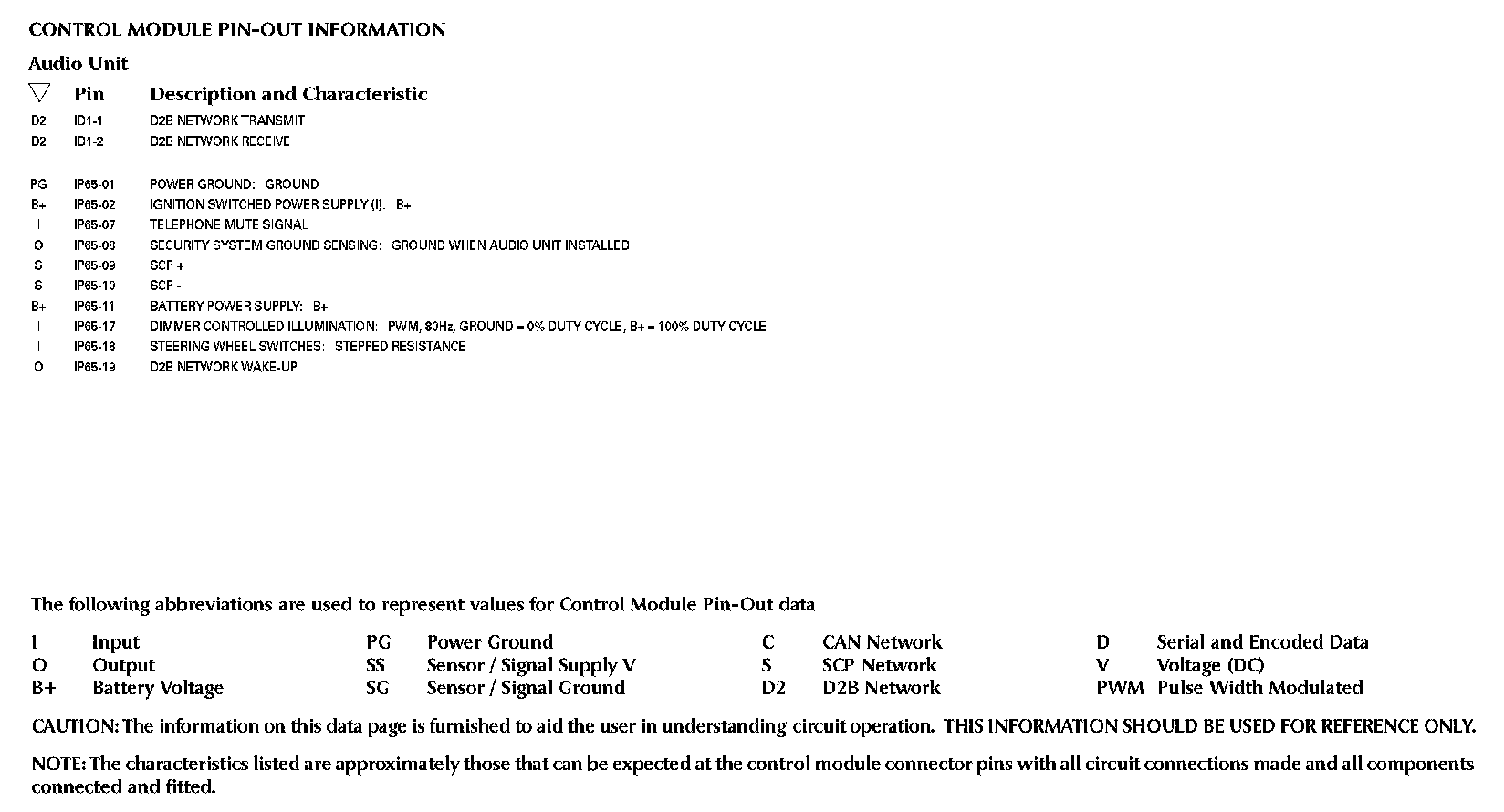

Diagram Data Sheet 15.2 (Part 2):
